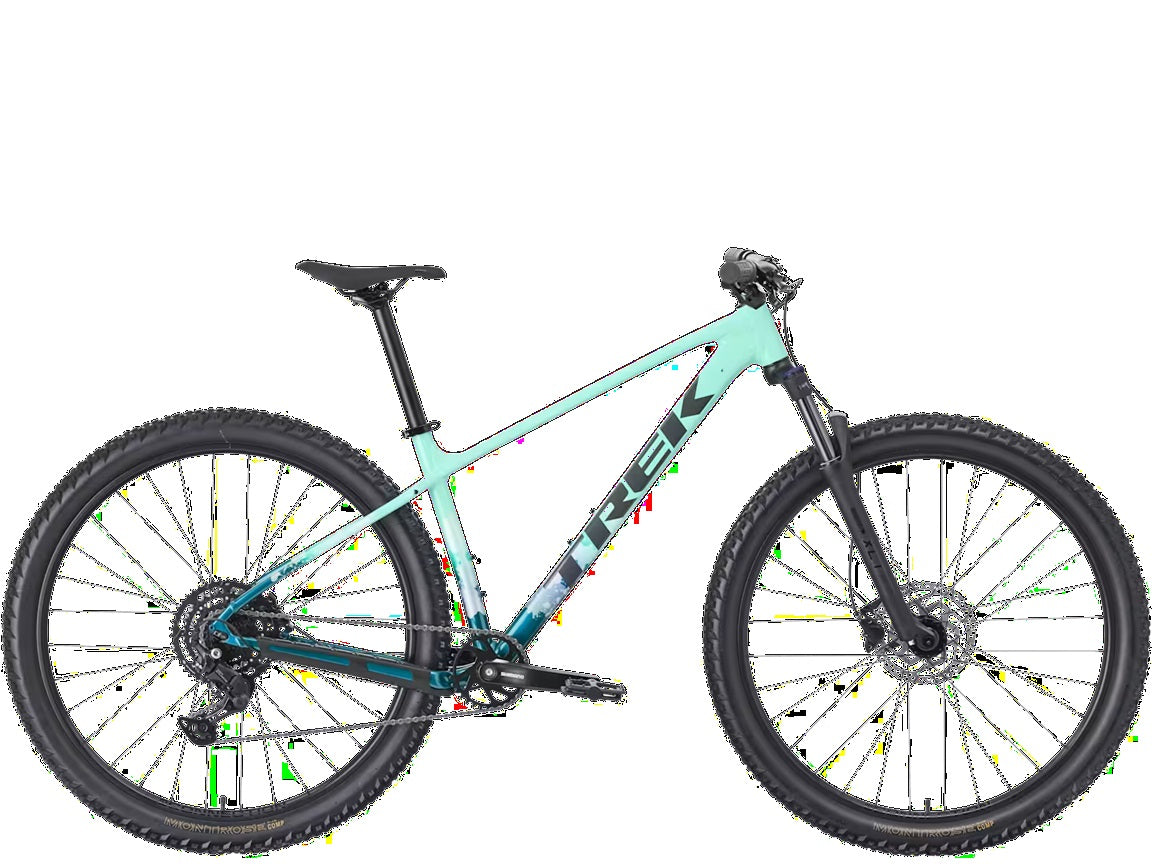

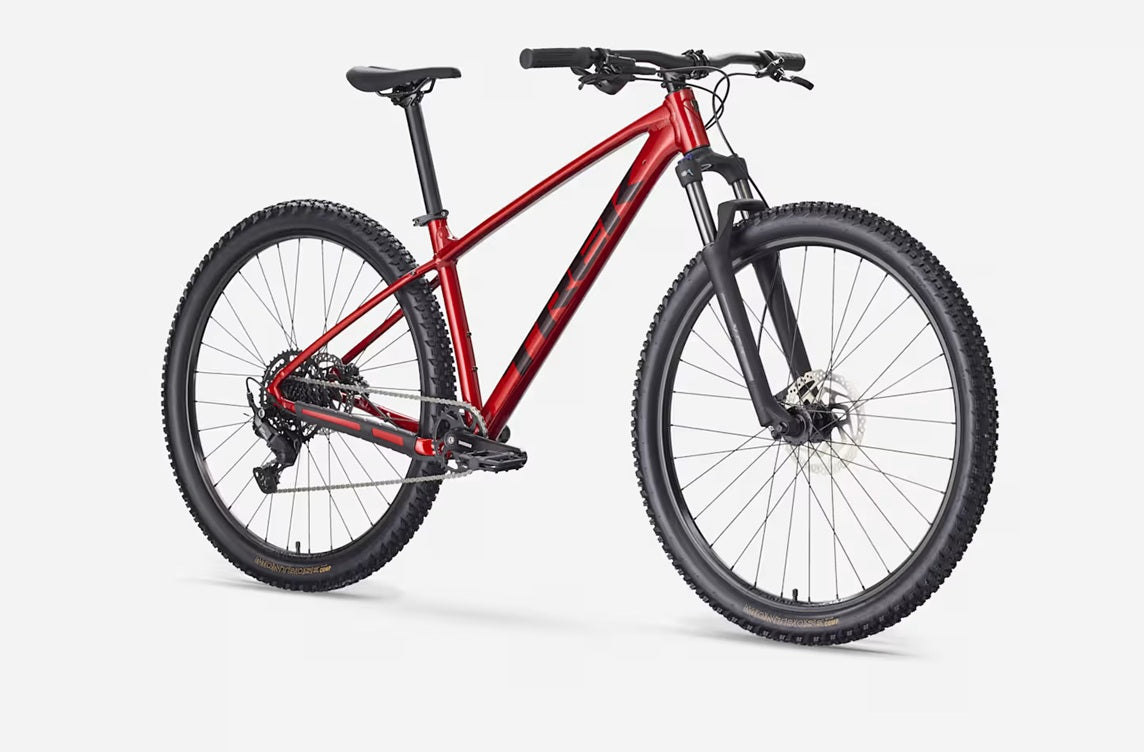

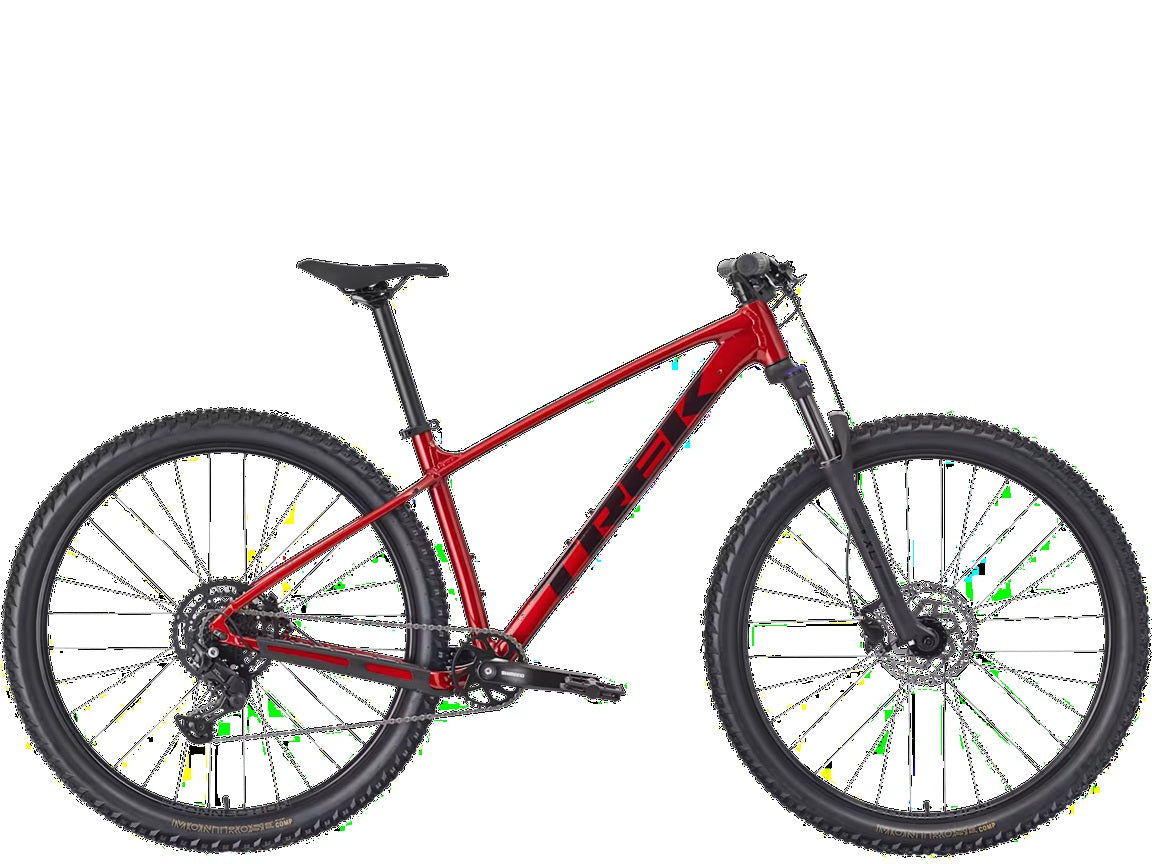

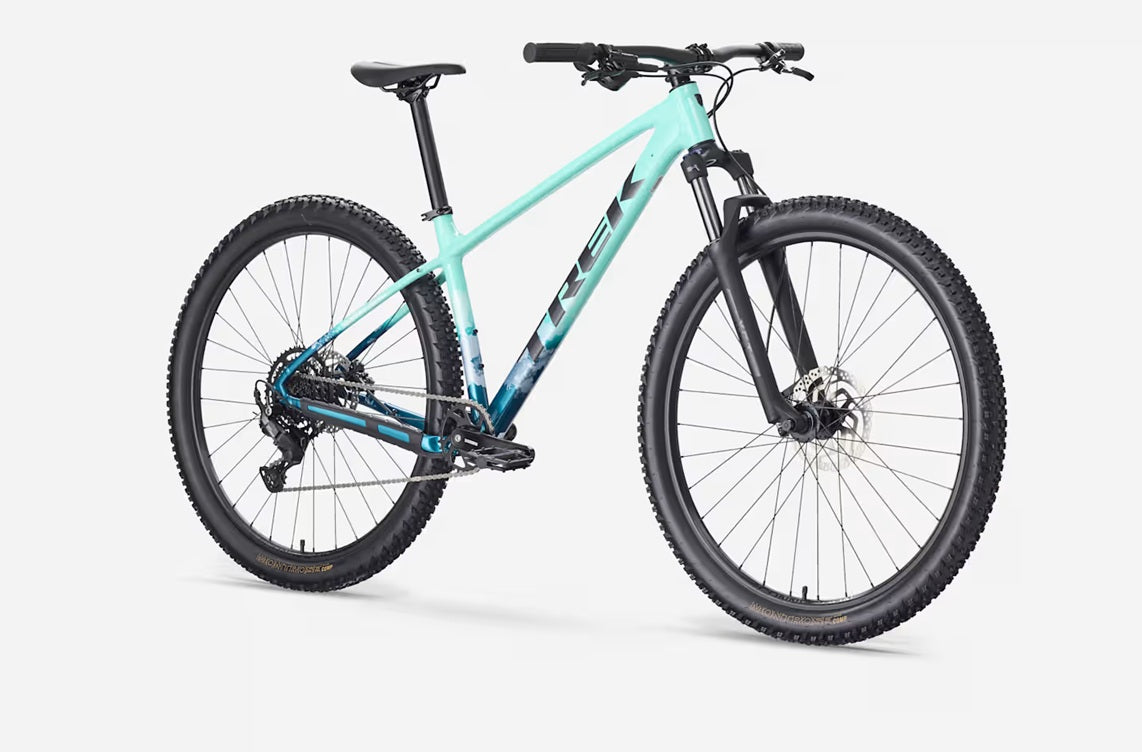

About The Trek Marlin 5 Gen 3 Aluminum 9 Speed Hardtail Mountain Bike

The Marlin 5 Gen 3 is Trek's entry-level aluminum hardtail mountain bike, designed for new mountain bikers and riders looking for a durable trail tool without a significant investment. It runs Shimano CUES 9-speed drivetrain with an 11-46 cassette — a wide-range setup that handles climbing and descending without requiring a front derailleur. Braking is handled by Shimano MT200 hydraulic disc, which delivers reliable stopping power in wet and dry conditions at a price point where mechanical disc is often the standard.

Frame sizing determines wheel size: XS and S frames run 27.5-inch wheels, while M through XXL frames use 29-inch wheels. The SR Suntour XCT 30 coil-spring fork provides 100mm of travel with hydraulic lockout — useful on smoother climbs. The frame includes internal routing for a dropper seatpost (sold separately), rack mounts, and a 135x5mm ThruSkew rear axle. At 33.3 lbs, this is a practical, tough platform that takes abuse well.

Who It's For

  • First-time mountain bike buyers who want hydraulic brakes and a real drivetrain without overspending
  • Riders who plan to use the bike for trail riding, gravel paths, and recreational off-road
  • Younger or smaller riders who need 27.5" wheel sizing (XS/S frames)
  • Not ideal for: technical singletrack riders or anyone planning aggressive descents — consider the Marlin 7 or Roscoe for more capable suspension and geometry

What to Look For

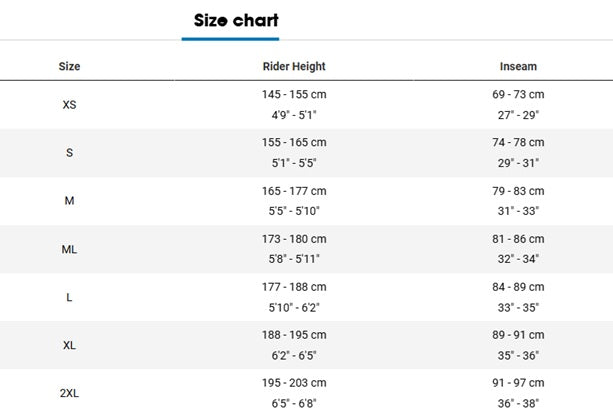

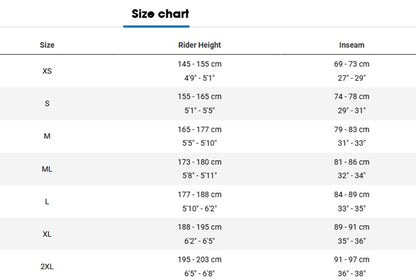

  • Wheel size by frame: XS and S sizes run 27.5", all other sizes run 29" — confirm which wheel diameter fits your height before ordering
  • Dropper post upgrade: The frame is internally routed for a dropper, which significantly improves trail riding capability — worth budgeting for early

Key Features

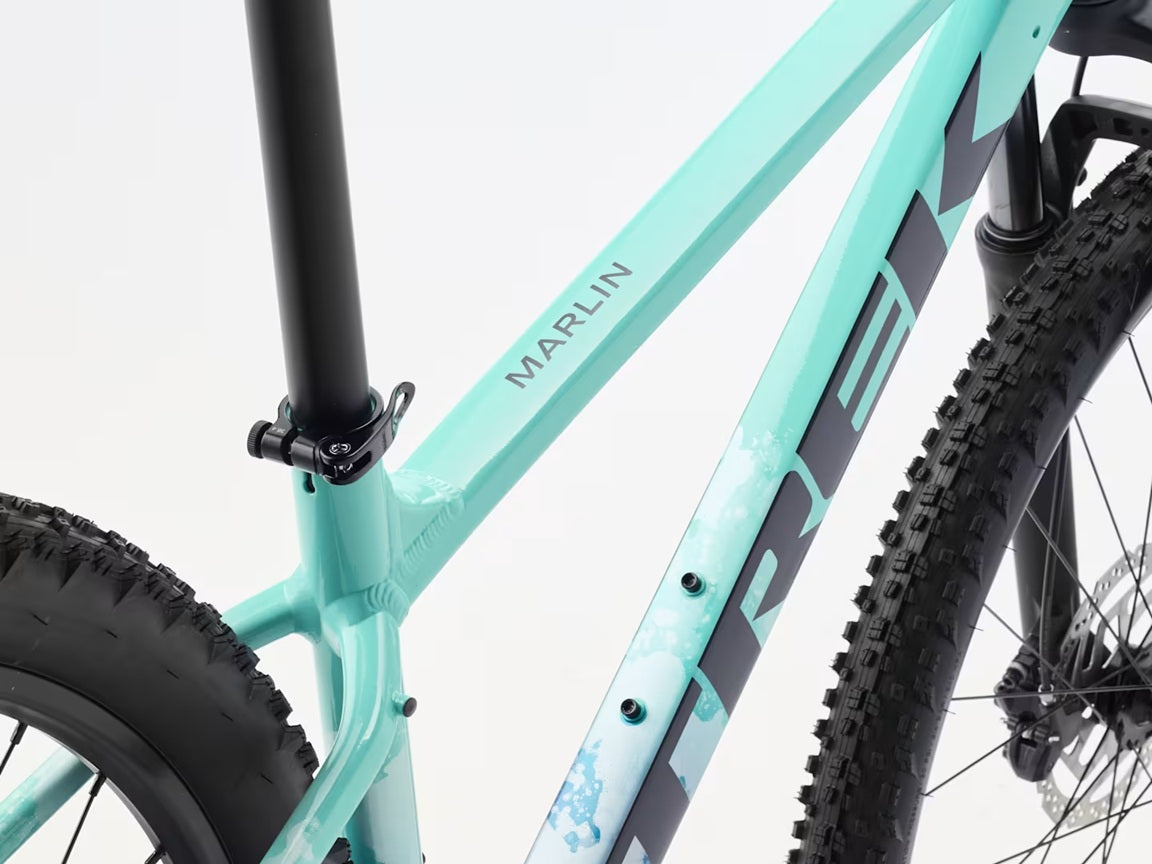

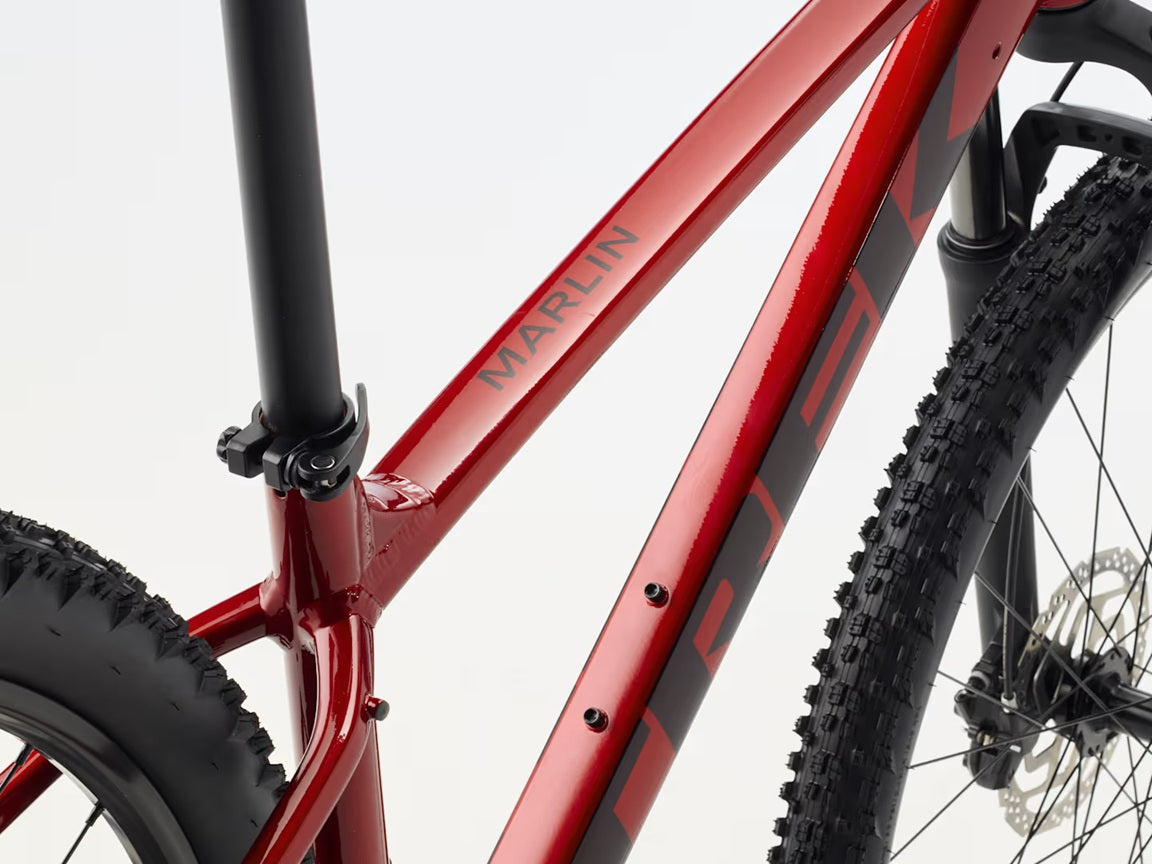

Frame — Alpha Silver Aluminum: Trek's entry aluminum alloy is built to last through hard use. The Gen 3 frame includes internal routing for both derailleur cable and a dropper seatpost, rack mounts, and kickstand mount — practical additions for a bike that may see commuting or bikepacking use alongside trail riding. The 135x5mm ThruSkew rear axle improves wheel stiffness over quick-release while staying compatible with standard tooling.

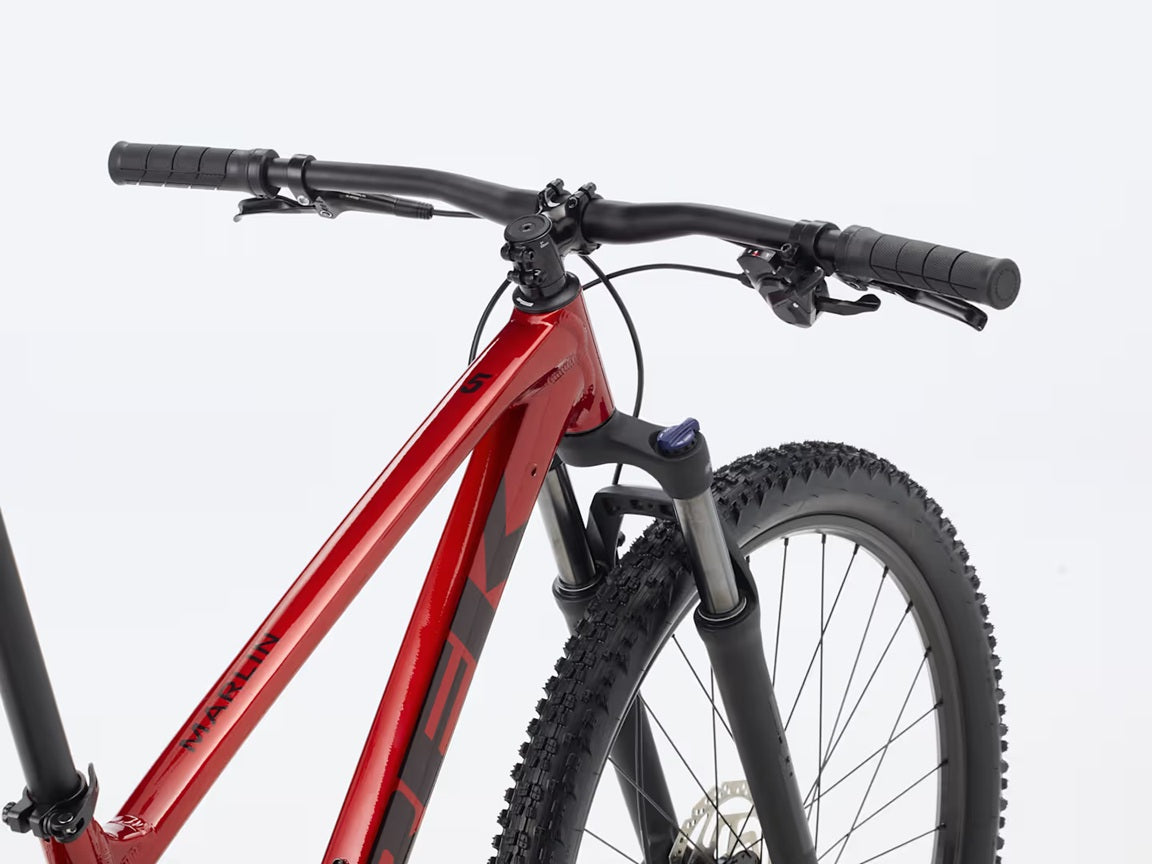

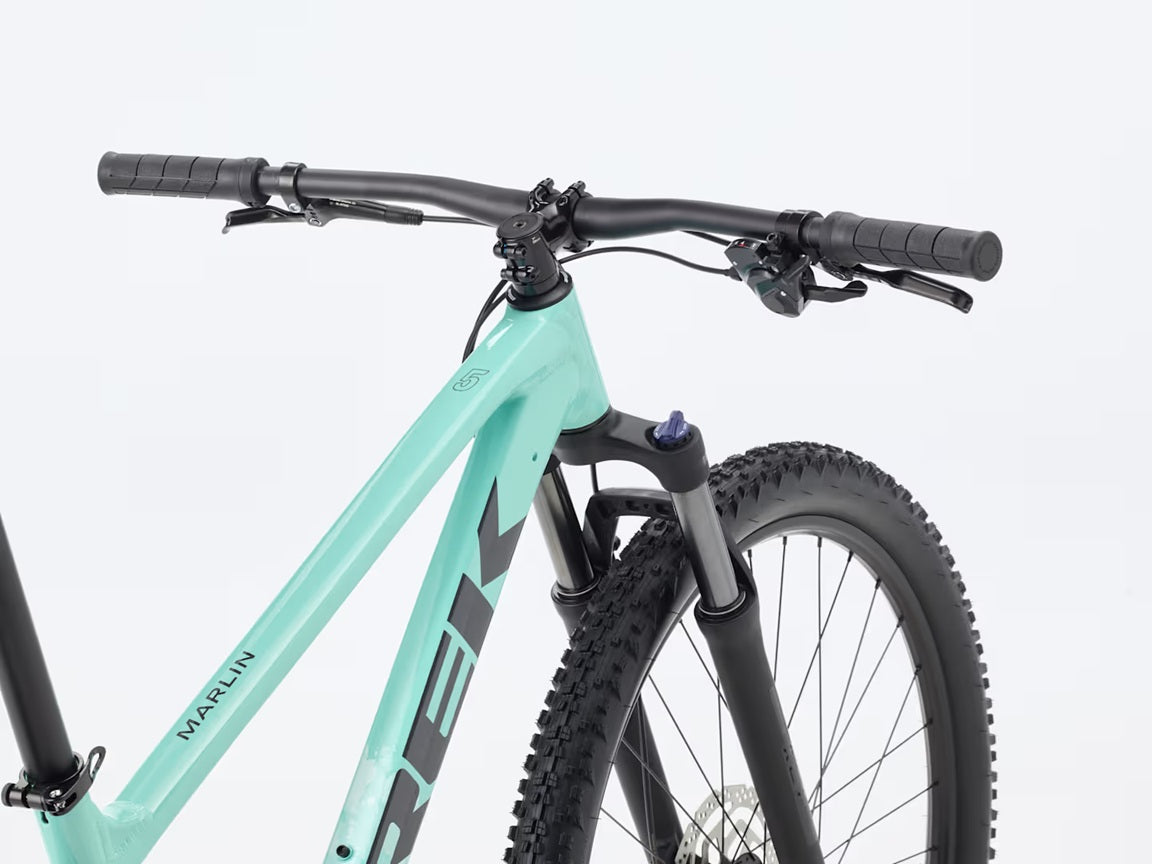

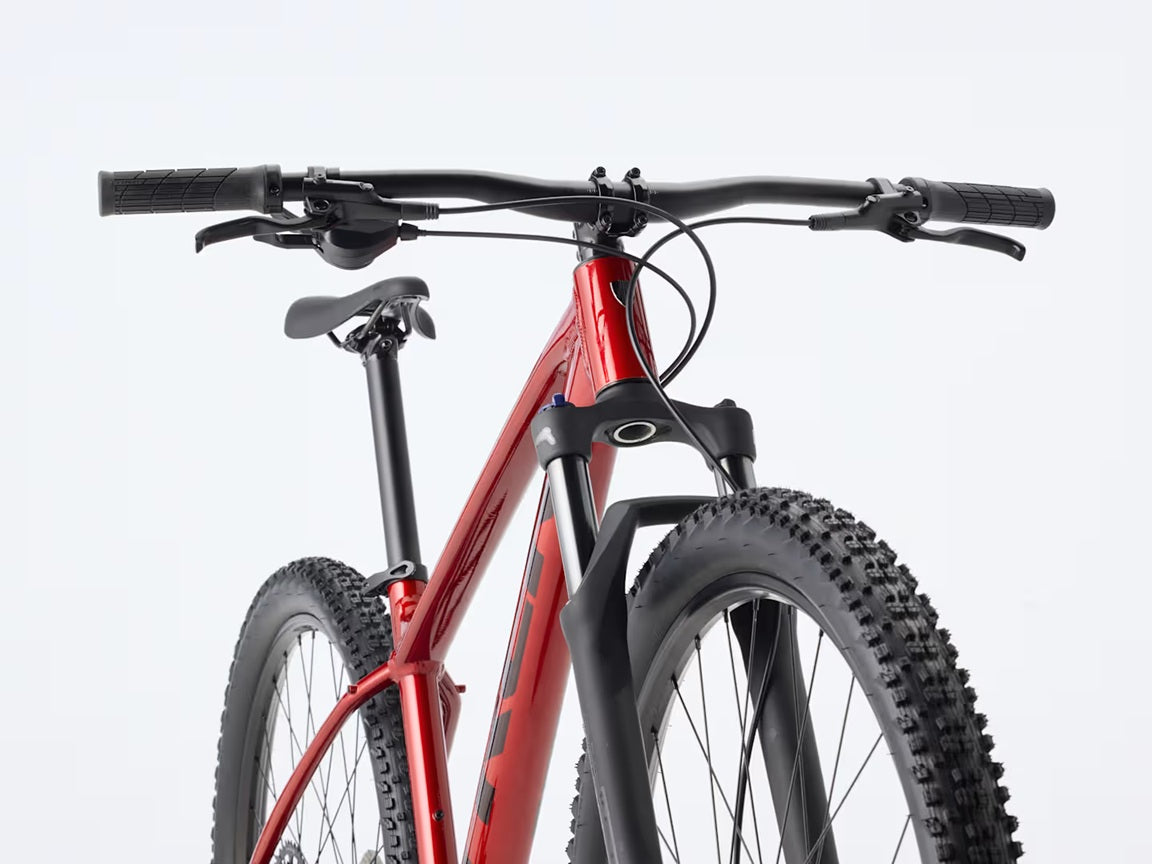

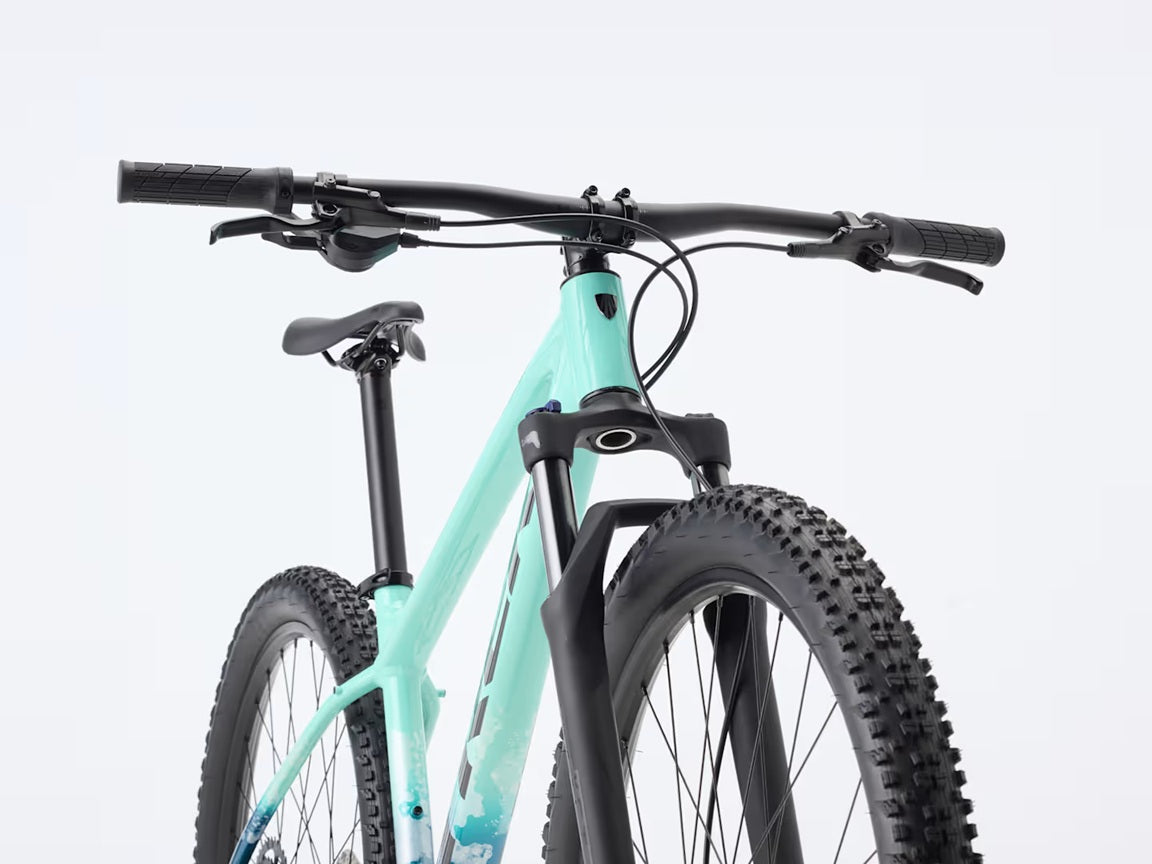

Fork — SR Suntour XCT 30, 100mm Coil: The XCT 30 is a coil-spring fork with hydraulic lockout — suitable for entry trail riding and smooth dirt, but will feel soft on technical terrain compared to air forks. The lockout is useful when climbing fire roads. XS frames receive 80mm of travel; all other sizes receive 100mm.

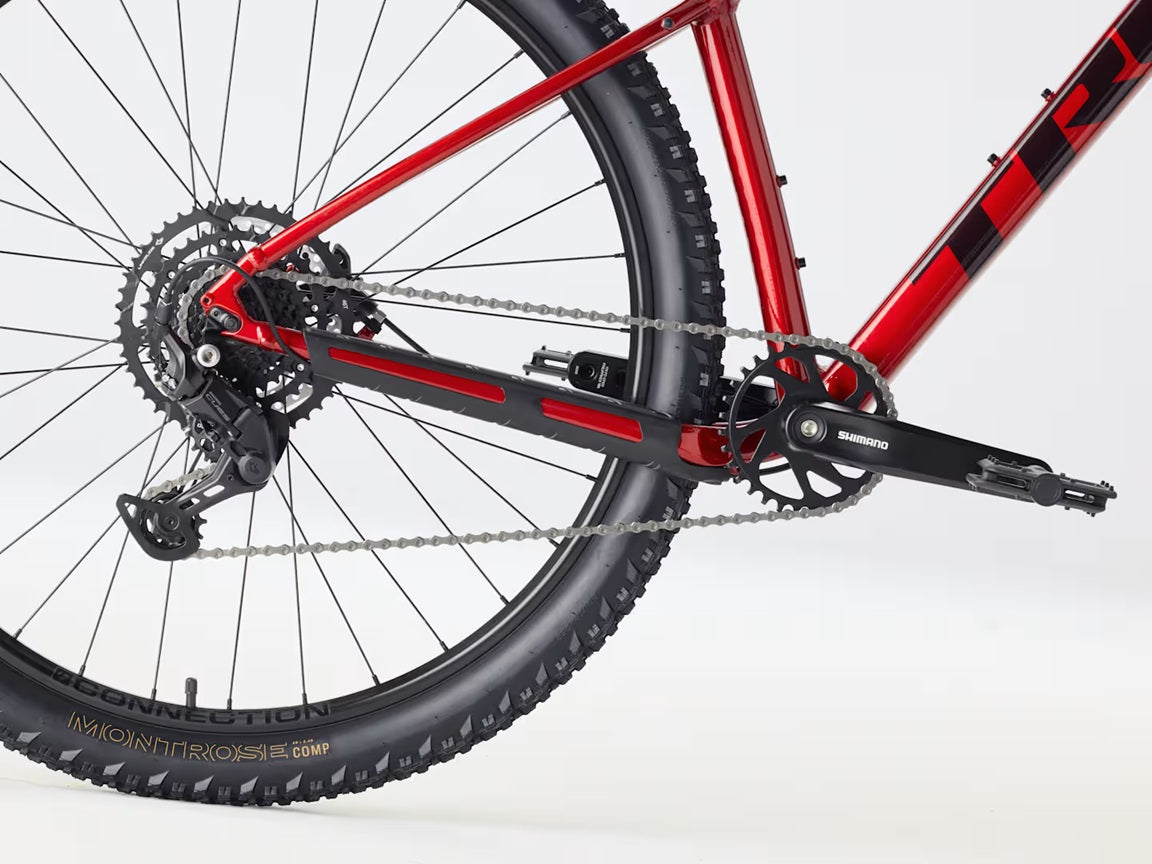

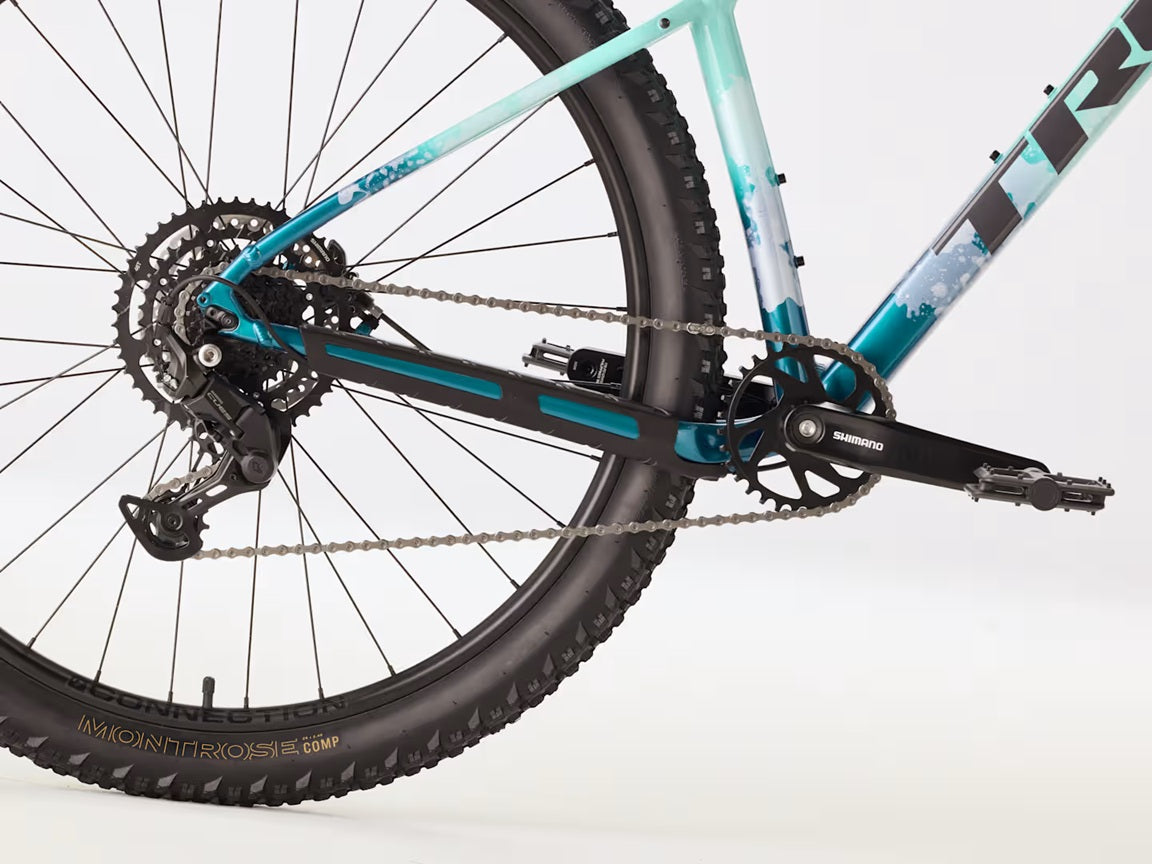

Drivetrain — Shimano CUES U4000, 9-speed: CUES is Shimano's updated MTB drivetrain platform with LINKGLIDE chain technology, designed for durability and smooth shifting under load. The 11-46 cassette range is wide enough for most off-road terrain on a 1x setup. The 32T chainring with 52mm chainline is a standard mountain geometry.

Brakes — Shimano MT200 Hydraulic Disc: Two-piston hydraulic disc brakes with 160mm rotors front and rear (180mm rear on M and larger sizes). MT200 is a proven, serviceable system — a genuine advantage at this price over cable-actuated disc options that require more frequent adjustment.

Rider Intent Summary

  • Biggest strengths: Hydraulic disc braking, wide-range 9-speed CUES drivetrain, and dropper-post-ready frame at an accessible entry price
  • Tradeoffs: Coil-spring fork limits technical terrain capability; 33.3 lbs is on the heavier end; ThruSkew rear axle is not a true thru-axle upgrade path
  • What makes it different: The Shimano CUES LINKGLIDE drivetrain with its 11-46 cassette is specced for durability under repeated shifting load — uncommon on bikes at this price

Victory's Take

At Victory Bicycle Studio, we consider the Marlin 5 a reliable starting point — the hydraulic brakes and CUES drivetrain hold up to real use, and the dropper routing means you can upgrade the bike meaningfully as your riding progresses.

What you get

  • Frame - Alpha Silver Aluminum
  • Fork - SR Suntour XCT 30
  • Wheels - Bontrager Connection
  • Tires - Bontrager Montrose Comp,2.4"
  • Groupset - Shimano Cues 9 Speed (Mechanical)
Trek Marlin 5 Gen 3 Aluminum 9 Speed Hardtail Mountain Bike

Trek

Trek Marlin 5 Gen 3 Aluminum 9 Speed Hardtail Mountain Bike

Regular price $849.99 USD
Sale price $849.99 USD Regular price $849.99 USD

Specifications

Frameset
Frame

Alpha Silver Aluminum, Internal Derailleur And Dropper Post Routing, Rack And Kickstand Mount, 135x5mm ThruSkew

- Size: XS - Curved Top Tube

Fork

SR Suntour XCT 30, Coil Spring, Preload, Hydraulic Lockout

- Size: XS - 80mm Travel, 27.5" Wheel

- Size: S - 100mm Travel, 27.5" Wheel

- Size: M, ML, L, XL, XXL - 100mm Travel, 29" Wheel

Wheels
Front Hub

Formula DC-20, Alloy, 6-Bolt, 100x5mm

Front Skewer

Trek Thru-Skew

Rear Hub

Formula DC-22, Alloy, 6-Bolt, Shimano 8/9/10 Freehub, 135x5mm

Rear Skewer

173x5mm QR

Rims

Bontrager Connection, Double-Wall, 32-Hole, 20mm Width, Schrader Valve

Spokes

14g Stainless Steel, Black

Tires

Bontrager Montrose Comp, Wire Bead, 30 TPI

- Size: XS, S - 27.5x2.4"

- Size: M, ML, L, XL, XXL - 29x2.4"

Max Tire Size

29x2.40" (XS, S: 27.5x2.40"), Fork: See Manufacturer

Drivetrain and Brakes
Shifter

Shimano U4000, 9-Speed

Rear Derailleur

Shimano CUES U4000

Crankset

Shimano CUES U4001, 32T, 52mm Chainline

- Size: XS, S, M, ML - 170mm Length

- Size: L, XL, XXL - 175mm Length

Bottom Bracket

Shimano, 73mm, Threaded Cartridge, 122.5mm Spindle

Cassette

Shimano LINKGLIDE LG300, 11-46, 9-Speed

Chain

Shimano LG500

Pedals

Nylon Platform

Brakes

Shimano MT200 Hydraulic Disc

Brake Rotors

Shimano RT26, 6-Bolt

- Size: XS, S - 160mm

- Size: M, ML, L, XL, XXL - 180mm

Cockpit
Handlebars

Bontrager Alloy, 31.8mm

- Size: XS - 5mm Rise, 690mm Width

- Size: S - 15mm Rise, 720mm Width

- Size: M, ML, L, XL, XXL - 15mm Rise, 750mm Width

Stem

Bontrager Comp, 31.8mm, 7 Degree

- Size: XS, S - 35mm Length

- Size: M, ML, L - 50mm Length, Blendr Compatible

- Size: XL - 60mm Length, Blendr Compatible

- Size: XXL - 70mm Length, Blendr Compatible

Headset

Semi-Integrated, 1-1/8"

Grips

Trek Line Comp, Nylon Lock-On

Saddle

Bontrager Verse Short, Stainless Steel Rails

Seatpost

Bontrager Alloy, 31.6mm, 12mm Offset

- Size: XS, S, M - 330mm Length

- Size: ML, L, XL, XXL - 400mm Length

Additional Information
Weight

15.10 kg / 33.29 lbs (Size M)

Weight Limit

136 kg / 300 lbs
