About The Trek Supercaliber SLR Gen 2 Frameset

The Trek Supercaliber SLR Gen 2 Frameset is a cross-country race frame built from SLR OCLV Mountain Carbon — Trek's highest grade of mountain carbon — with 80mm of IsoStrut rear travel. IsoStrut is Trek's proprietary integrated suspension system: the rear shock (RockShox SIDLuxe with 2-position remote damper) is mounted inside the seat tube, fully concealed, reducing weight and drag while keeping the silhouette nearly identical to a hardtail. This is a frame built to win XC races. Weight savings are not a secondary consideration here — they are the primary engineering objective.

The Gen 2 uses SLR OCLV carbon, which differs from standard OCLV Mountain Carbon in construction process and resin system, resulting in lower weight at equivalent stiffness. It eliminates internal guide tubes found in standard OCLV construction, saving further grams at the expense of some routing flexibility — this is a competition-priority decision. UDH is integrated for current AXS and Linkglide drivetrain compatibility. The FSA IS-2 headset (1-1/8" top, 1.5" bottom) accepts current tapered XC fork standards. Head angle of 67.5° and a 110mm fork travel spec place this squarely in UCI XC race territory.

Who It's For

  • XC racers and performance-oriented trail riders who want the lightest possible full-suspension Trek MTB frame
  • Riders who understand IsoStrut's travel limitations and want a near-hardtail feel with a small compliance benefit
  • Builders who want UDH compatibility and AXS integration in a top-tier carbon XC race chassis
  • Not ideal for: trail riding with aggressive features, enduro, or any application where 80mm travel is insufficient; also not a build-it-any-way frame — routing simplification is a weight tradeoff with practical implications

What to Look For

  • IsoStrut shock: RockShox SIDLuxe with 2-position remote damper included — fully integrated, not field-swappable like a conventional shock
  • Travel: 80mm — this is an XC frame, not a trail frame; confirm 80mm is sufficient for your riding
  • No internal guide tubes: Weight savings vs. standard OCLV; confirm cable routing plan before building, as routing is simplified vs. non-SLR OCLV
  • Fork: Designed for 110mm travel fork — use a purpose-built XC fork, not a trail fork

Key Features

Frame — SLR OCLV Mountain Carbon, IsoStrut 80mm Travel: Trek's highest-grade mountain carbon, IsoStrut integrated suspension (shock inside seat tube), no internal guide tubes for weight savings, UDH, FSA IS-2 headset. Head angle 67.5°, designed for 110mm fork.

Shock — RockShox SIDLuxe (Included): 2-position remote damper, fully integrated into seat tube via IsoStrut system. Not externally visible or field-swappable to a different shock model.

Compatibility — Boost148 / 12mm Thru Axle / UDH: Boost148 rear spacing, 12mm thru axle, UDH for AXS and Linkglide. FSA IS-2 headset (1-1/8" top, 1.5" bottom crown) included. Designed for a 110mm XC fork.

Routing & Mounts: Simplified internal routing (no guide tubes — SLR weight-savings decision). UDH for rear derailleur. No ISCG mount. No rack or fender mounts.

Rider Intent Summary

  • Biggest strengths: SLR OCLV Mountain Carbon (Trek's lightest mountain grade), IsoStrut integrated suspension, RockShox SIDLuxe included, UDH, near-hardtail weight and silhouette with 80mm compliance
  • Tradeoffs: 80mm travel is a hard limit — not a trail bike; IsoStrut shock is not field-swappable; routing is simplified compared to standard OCLV, which matters for some build configurations
  • What makes it different: The IsoStrut system is unique — there is no other XC full-suspension design that integrates the shock inside the seat tube and achieves the resulting weight and aerodynamic profile

Victory's Take

At Victory Bicycle Studio, the Supercaliber SLR Gen 2 is the frame we build for XC racers who are serious about race weight and don't want to give up the 80mm compliance advantage of a full-suspension platform — if you're counting grams and racing a clock, this is Trek's answer.

What you get

  • Frame - SLR OCLV Mountain Carbon, IsoStrut, 80mm travel
  • Shock - RockShox SIDLuxe included
  • BB - UDH, Boost148
  • Tires - XC 29" tire clearance
  • Axle - Boost148 12mm thru axle

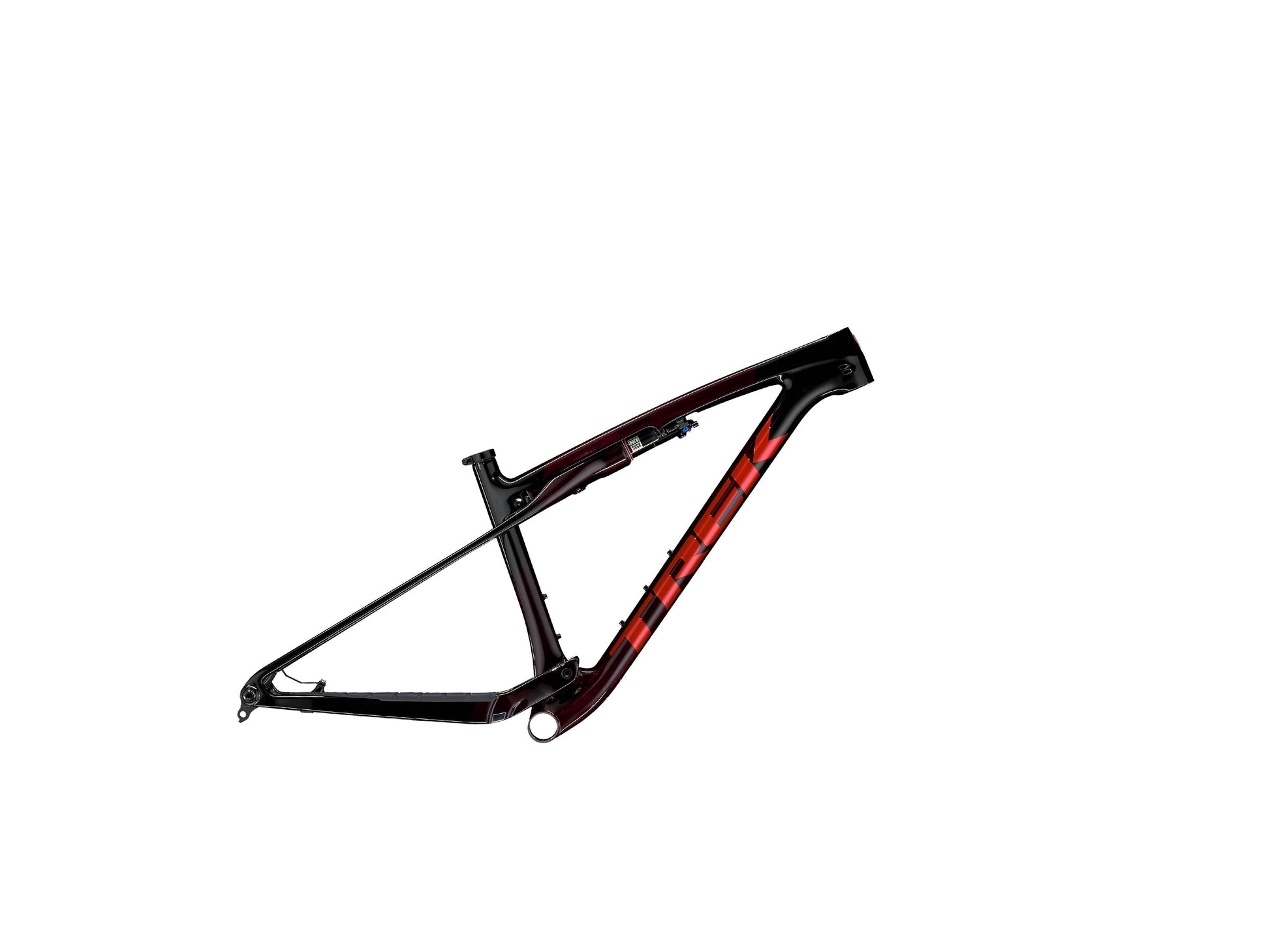

Supercaliber SLR F/S M Carbon Red Smoke

Trek

Trek Supercaliber SLR Gen 2 Frameset

Regular price $4,399.99 USD
Sale price $4,399.99 USD Regular price $4,399.99 USD

Specifications

Frameset
Frame

SLR OCLV Mountain Carbon, IsoStrut integrated suspension (shock inside seat tube), no internal guide tubes (weight-savings design), UDH, 80mm travel, 67.5 deg head angle, Boost148, 12mm thru axle

Headset

FSA IS-2 integrated headset, 1-1/8in top / 1.5in bottom bearings (included)

Shock

RockShox SIDLuxe, 2-position remote damper, fully integrated IsoStrut (included)

Wheels
Rear Axle

Boost148, 12mm thru axle

Additional Information
Fork Compatibility

Designed for 110mm XC fork, tapered steerer, Boost110 front axle

UDH

Universal Derailleur Hanger for AXS and Linkglide compatibility

IsoStrut

Proprietary integrated suspension — shock concealed inside seat tube, not field-swappable to alternate shock model
