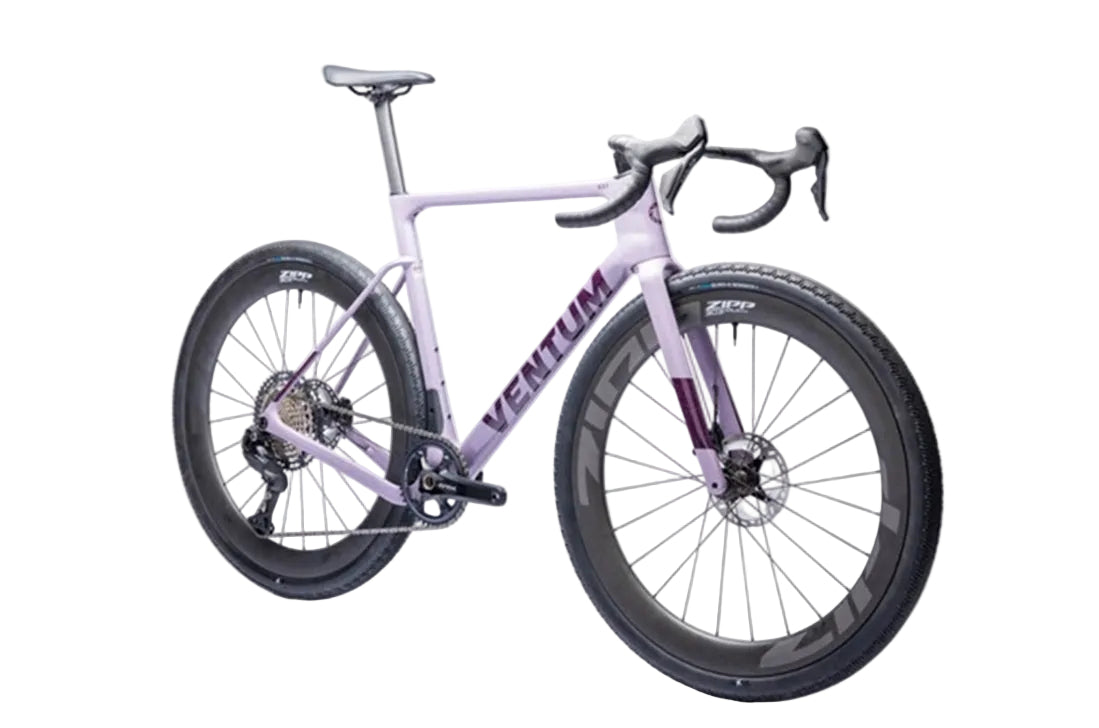

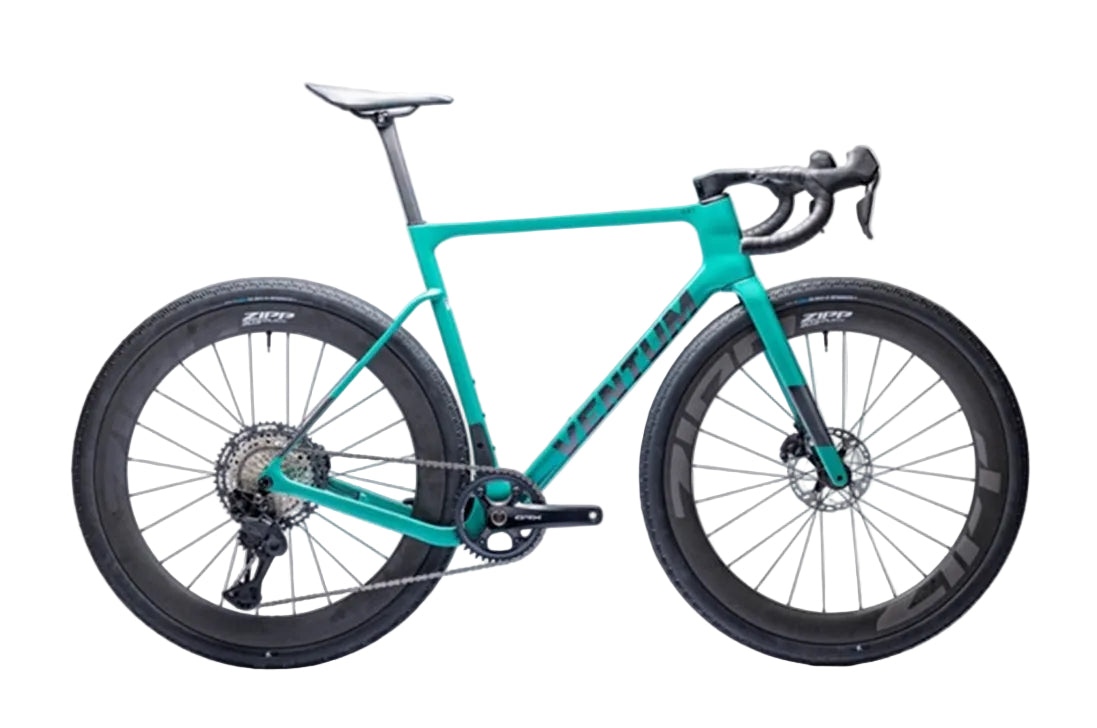

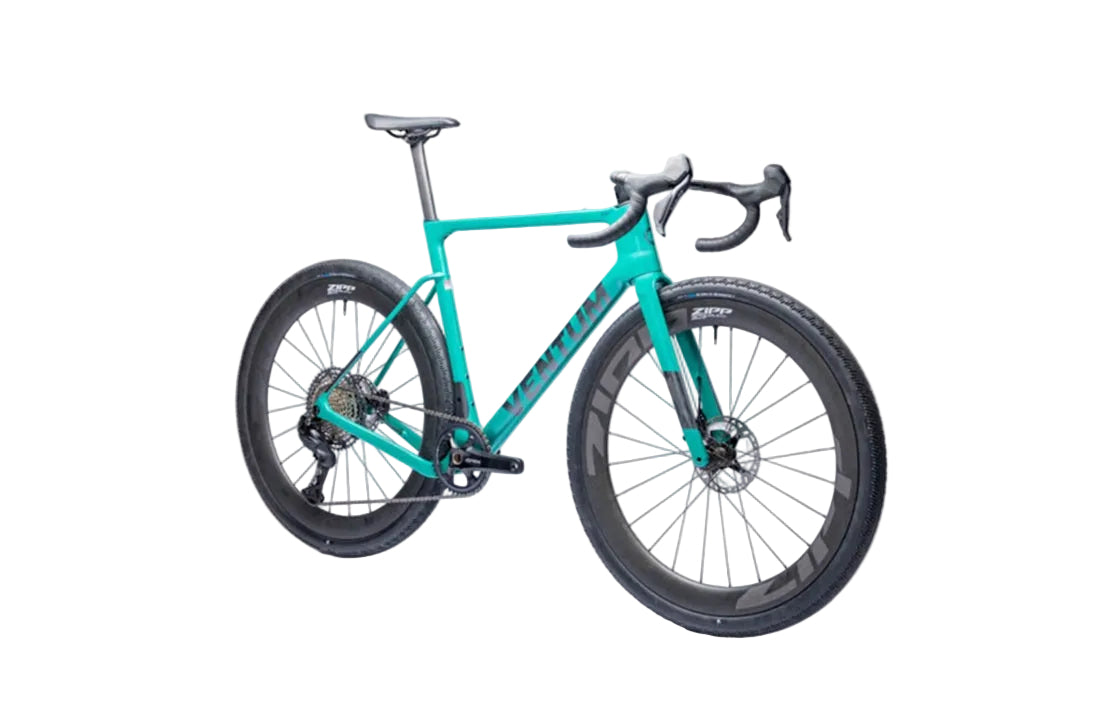

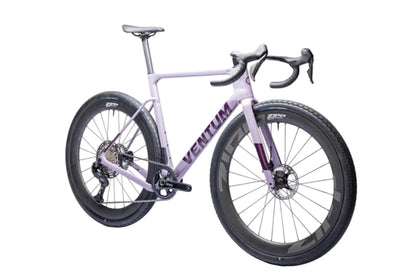

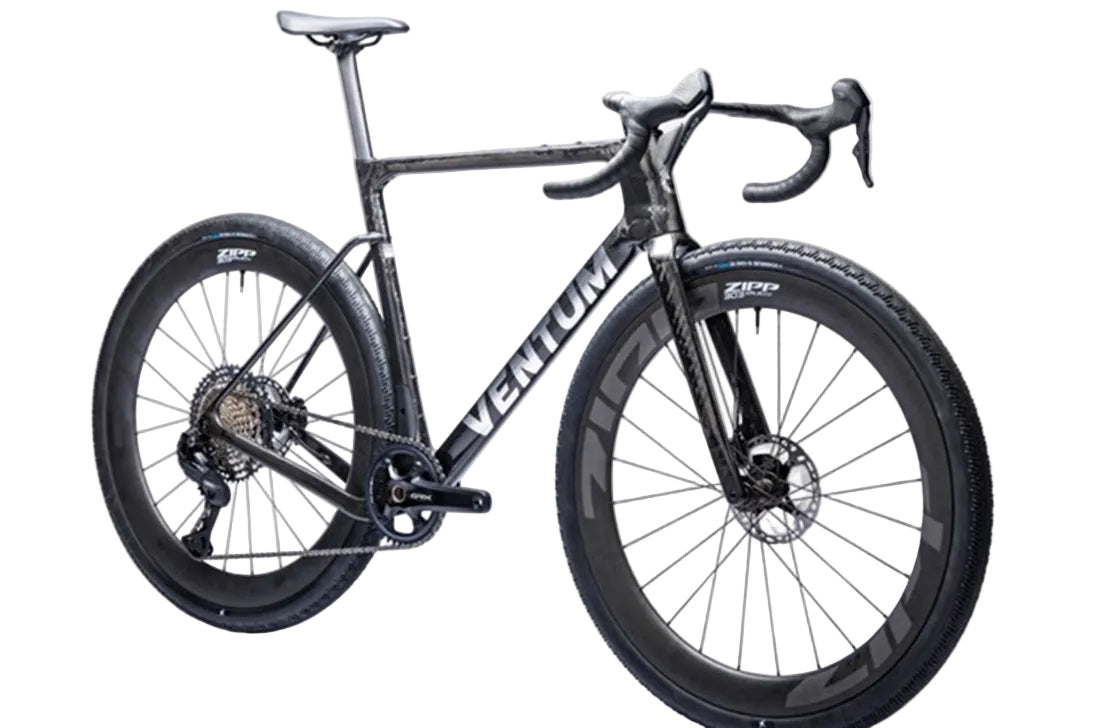

About The Ventum GS1 Carbon GRX Di2 12 Speed Disc Gravel Bike

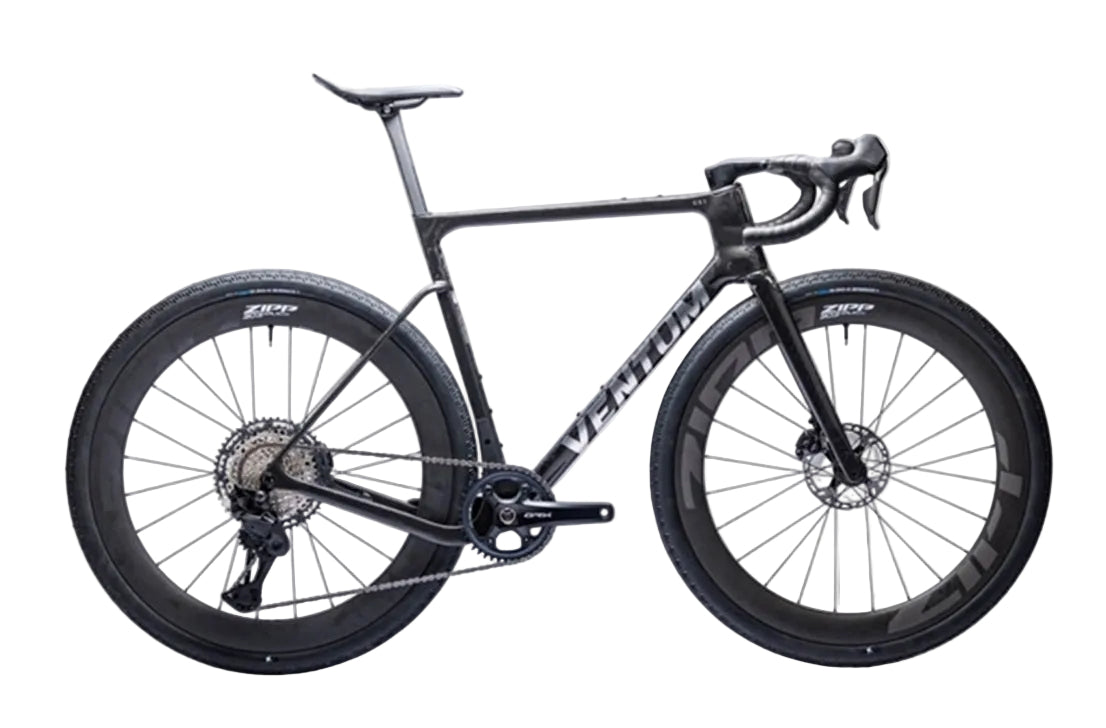

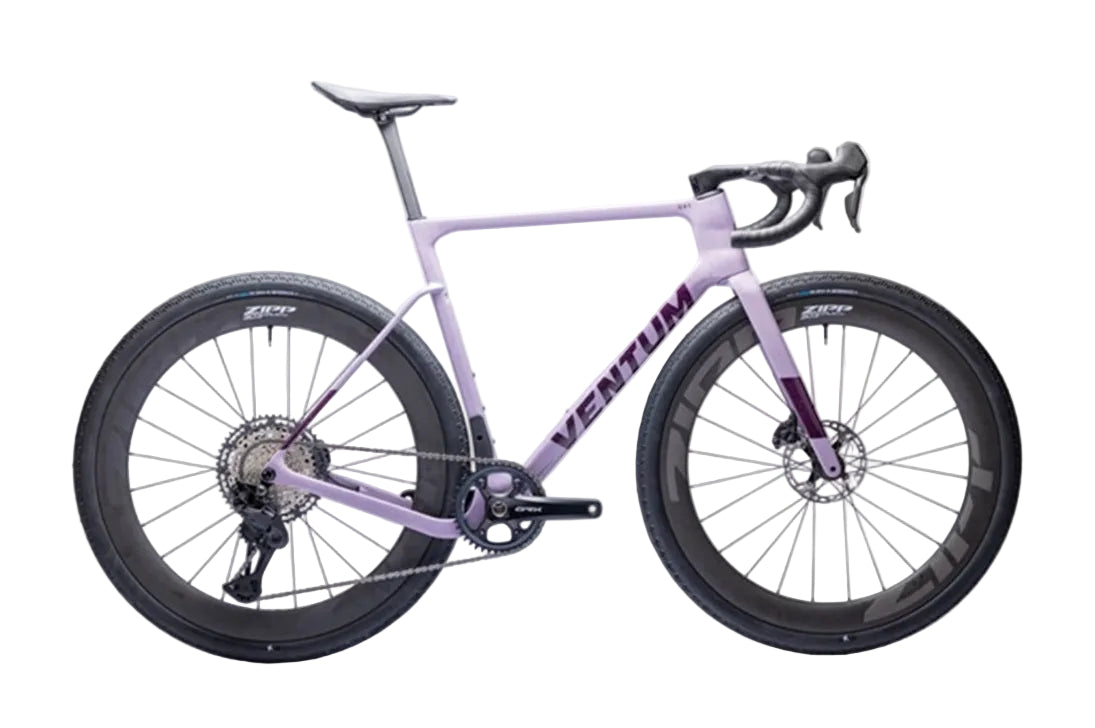

The Ventum GS1 Carbon GRX Di2 Disc is a full-carbon gravel race bike built for speed on mixed terrain. It pairs Shimano’s new GRX Di2 1x12-speed electronic groupset with ZIPP 303 XPLR SW carbon wheels and tire clearance up to 700x56c front and 700x50c rear, giving racers room for bigger rubber without changing how the bike handles. The frame runs Ventum’s proven Race Geometry — aggressive, with a tucked rear end and stable steering — the same setup used across the brand’s gravel line.

What separates the GS1 in the gravel-race category is that the added tire clearance didn’t require loosening up the geometry, a tradeoff many gravel frames make when they widen the rear end to fit bigger tires. The result rides road-bike quick while holding that speed on loose or rough surfaces. This is a bike built for racing and fast group rides, not for bikepacking or all-day touring comfort.

Who It’s For

        Gravel racers who want race geometry and tire clearance in one frame, not a compromise between the two

        Road riders adding gravel capability who don’t want to give up quick handling

        Riders comfortable in an aggressive, tucked-rear riding position at speed

        Consider a different bike if you want a relaxed touring or bikepacking geometry, or prefer mechanical (non-electronic) shifting

What to Look For

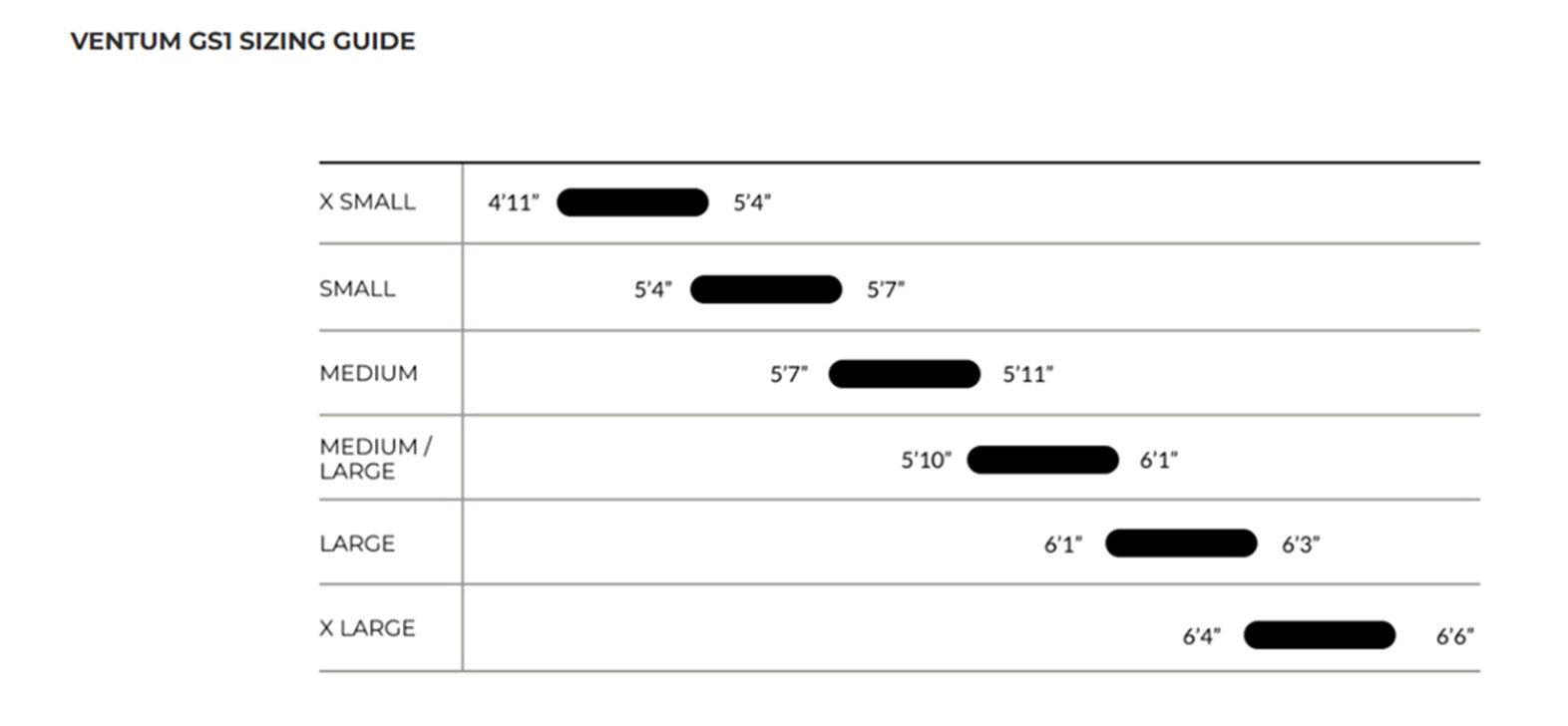

        Frame size changes crank length and cockpit width: XS through M/L run 170mm cranks with 40–42cm bars; L and XL step up to 172.5mm cranks and bars up to 44cm

        Tire strategy matters: it ships with 700x45c Goodyear XPLR Inter tires but has clearance to 700x56c front / 700x50c rear for rockier or wetter routes

        The 1x12 GRX Di2 groupset with a 10-51T cassette covers a wide gear range for mixed terrain; riders wanting a 2x setup should look elsewhere in the lineup

Key Features

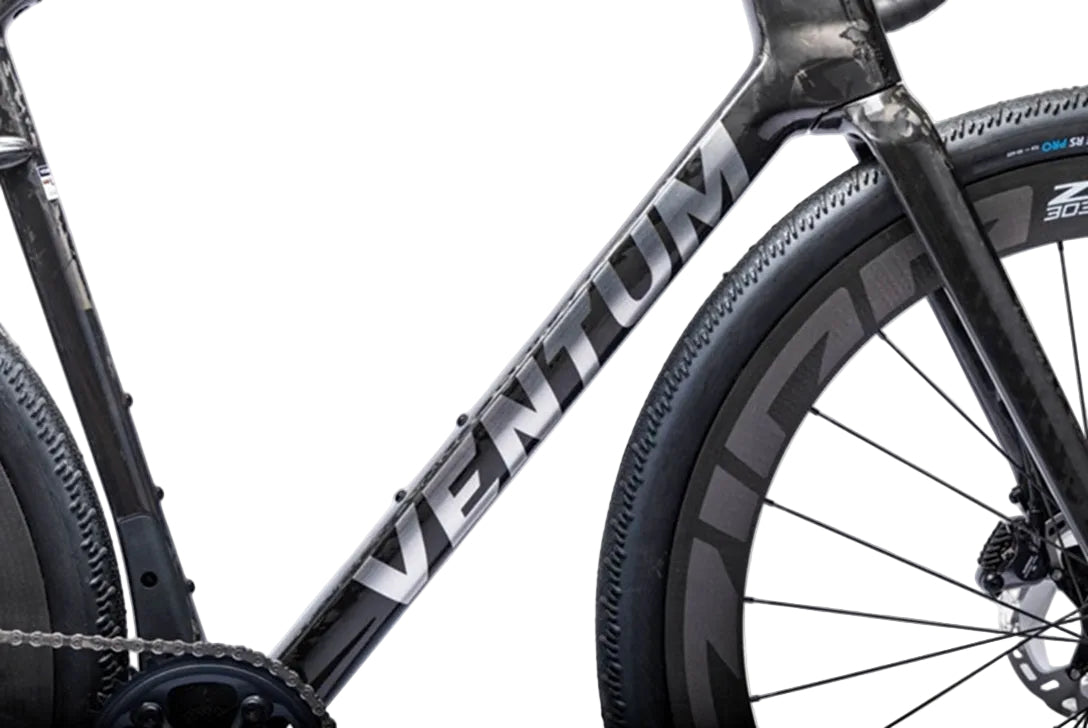

Frame and fork are full carbon fiber with a T47 threaded bottom bracket, internal cable routing, and a UDH derailleur hanger, which keeps the frame compatible with newer derailleur standards as drivetrains evolve. The fork uses a tapered carbon steerer and carbon dropouts, and both frame and fork use flat mount disc brakes.

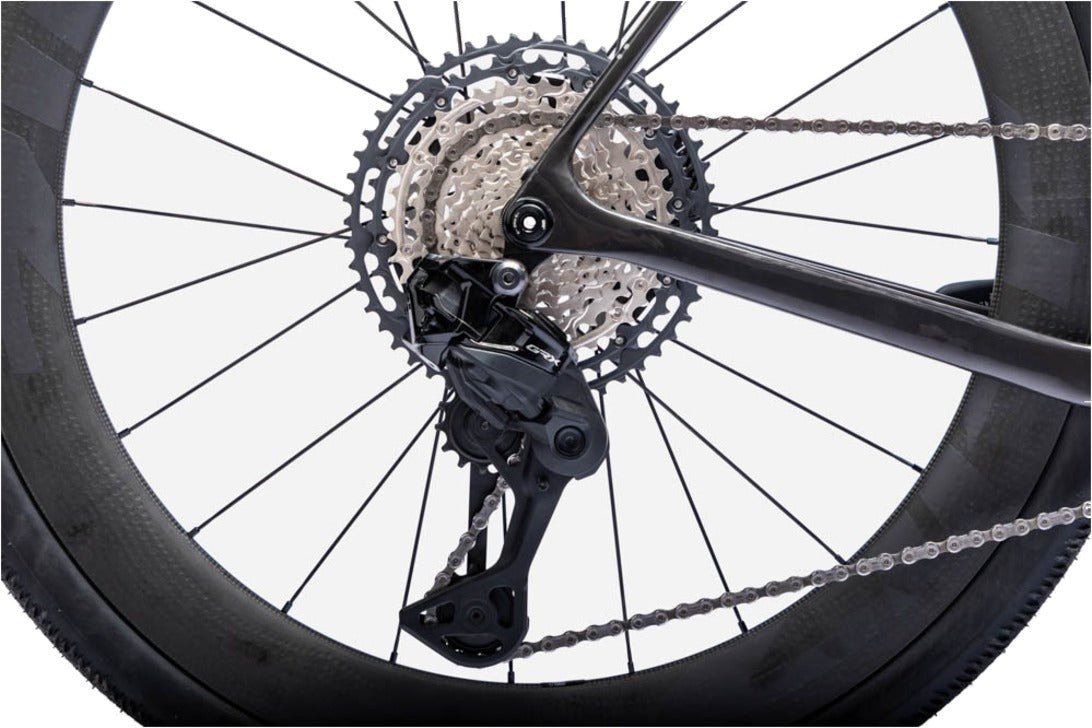

The groupset is Shimano’s new GRX Di2 1x12-speed electronic drivetrain, paired with a 40T chainring and a Shimano XT 10-51T cassette. Electronic shifting holds gear changes more reliably under load on rough terrain than mechanical systems, and the wide-range cassette gives the low gearing needed for steep climbs without a second chainring to manage.

Braking is Shimano GRX Di2 hydraulic disc with 160mm rotors front and rear, which delivers consistent stopping power in wet or muddy gravel conditions where rim brakes fall short.

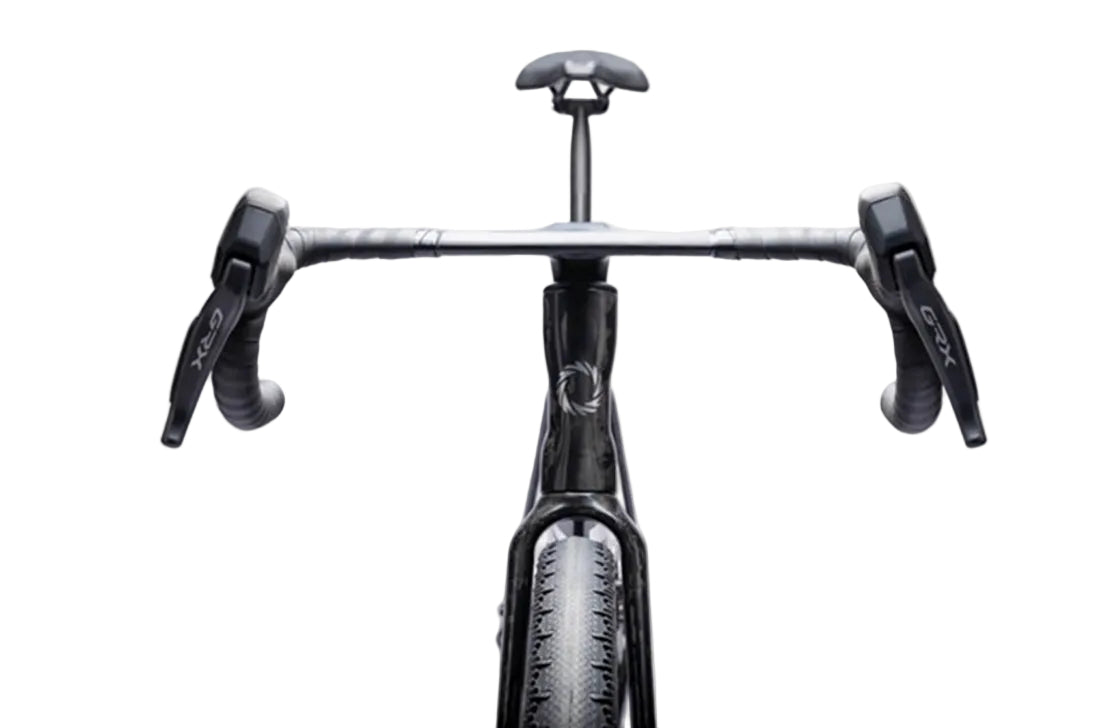

Wheels are ZIPP 303 XPLR SW carbon, tubeless-ready, with a Microspline rear driver to run the wide-range cassette. Stock tires are Goodyear XPLR Inter in 700x45c. The Ventum CR5 integrated carbon bar/stem replaces a traditional two-piece cockpit and is sized per frame, from 40x90mm up to 44x100mm.

Rider Intent Summary

        Biggest strengths: full carbon frame, electronic GRX Di2 1x12 shifting, and ZIPP 303 XPLR SW wheels built specifically for gravel racing

        Tradeoffs: the aggressive Race Geometry favors speed and handling over all-day comfort or loaded touring

        What makes it different: expanded tire clearance (700x56c front / 700x50c rear) without loosening the tucked, stable geometry other brands often sacrifice to fit bigger tires

Victory’s Take

We think the GS1 Di2 solves a problem most gravel bikes don’t: it gained real tire clearance without going soft on handling. At Victory Bicycle Studio, we’d fit this for riders racing or pushing pace on mixed terrain — not for someone looking for an all-day comfort cruiser.

What you get

  • Frame - Ventum GS1 V3 gravel frame
  • Groupset - Shimano GRX Di2 12 Speed (Electronic)
  • Wheels - ZIPP 303 XPLR SW Carbon Wheelset
  • Tires - Goodyear XPLR Inter, 700x45c
Ventum GS1 Carbon GRX Di2 12 Speed Disc Gravel Bike

Ventum

Ventum GS1 Carbon GRX Di2 12 Speed Disc Gravel Bike

Regular price $6,569.10 USD
Sale price $6,569.10 USD Regular price $7,299.00 USD

features

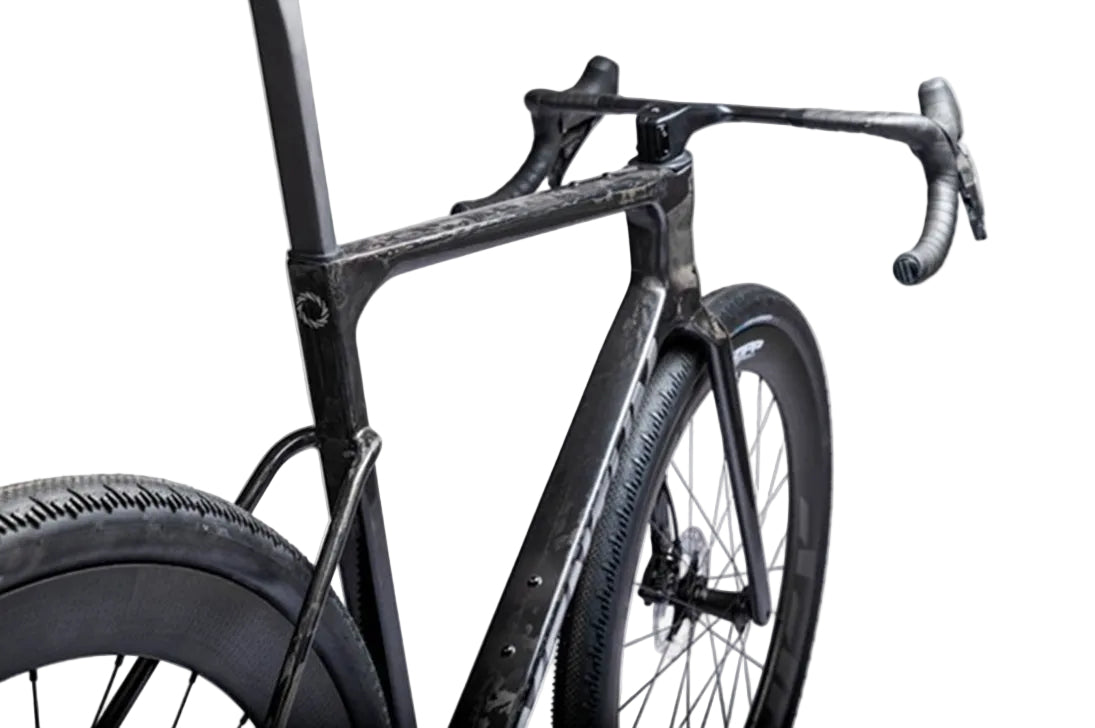

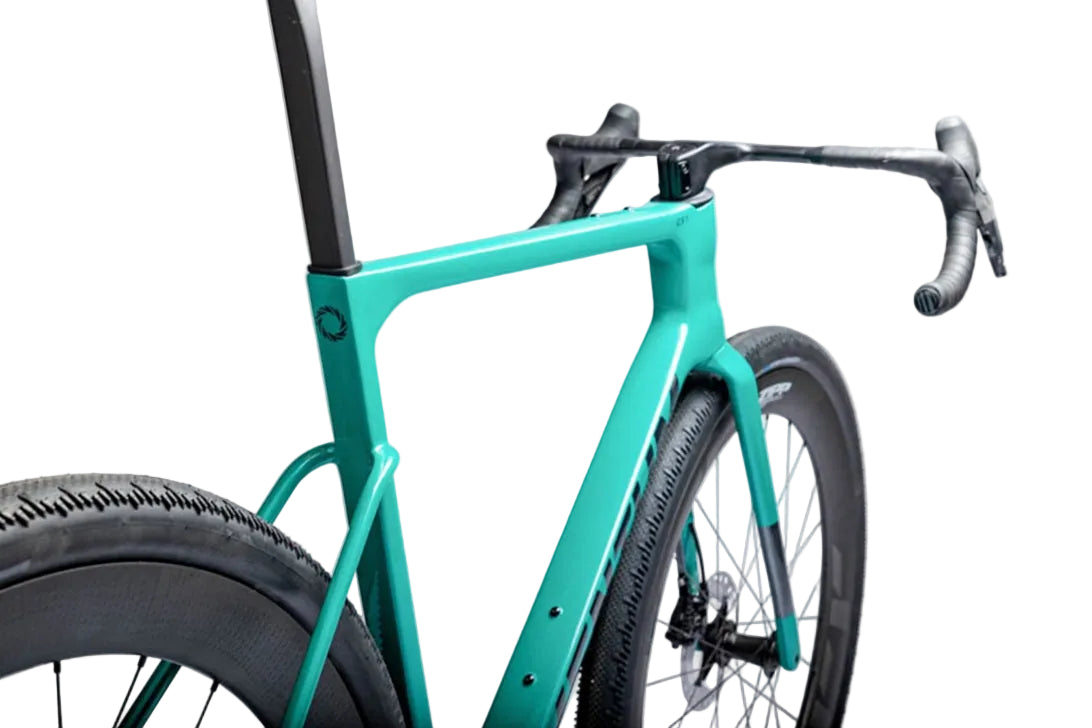

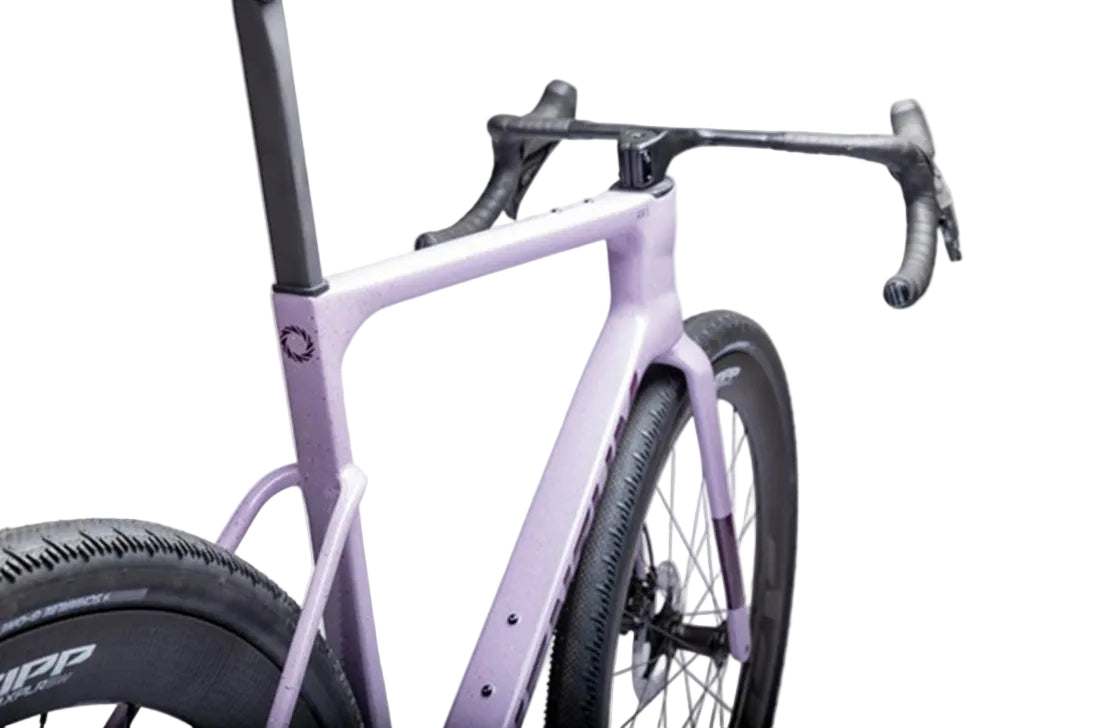

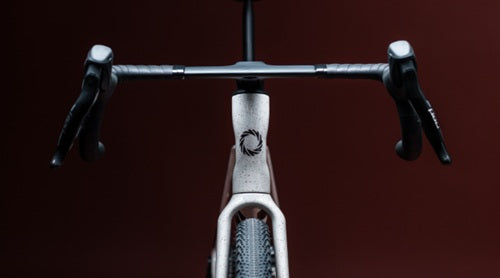

  • An All-New Front End

    Taking cues from the new Tempus TT bike, an hourglass head tube utilizes functional airfoils to smooth airflow over rider and bike. Because in modern gravel racing, aero matters.

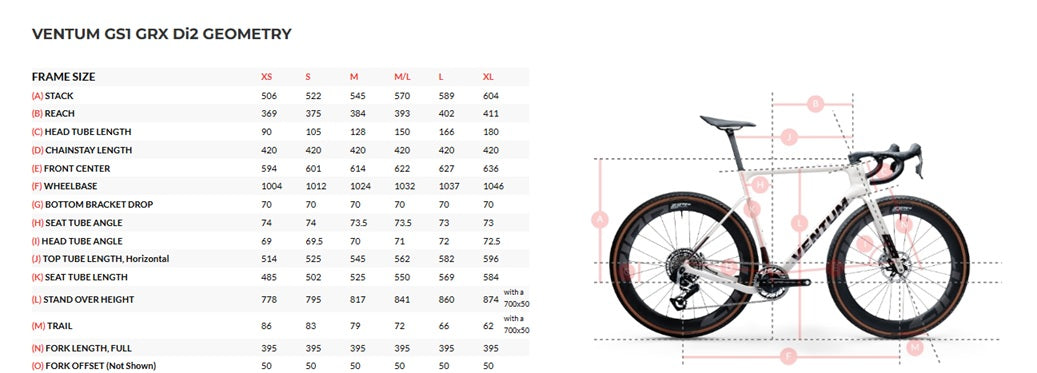

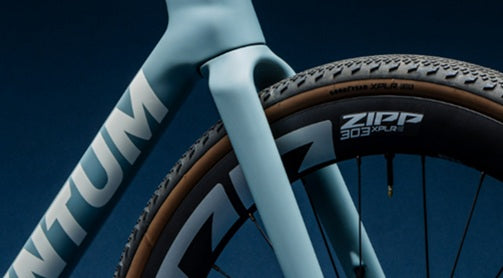

  • Ventum Race Geometry

    The GS1’s geometry is something Ventum holds near and dear to our hearts at Ventum. Adored by Ventum pro riders and obsessed over by Ventum engineers, it’s quick in corners yet wonderfully predictable and stable at high speeds over variable terrain.

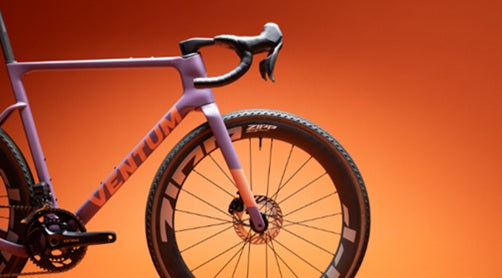

  • For Tires, Bigger is Better

    The new GS1 takes up to 700x56c tires in the front and *700x45c tires in the rear — plenty big for today’s knobbier, fatter gravel tires.

    *Tire clearance on 2x drivetrains is limited to 700x45c.

Specifications

Frameset

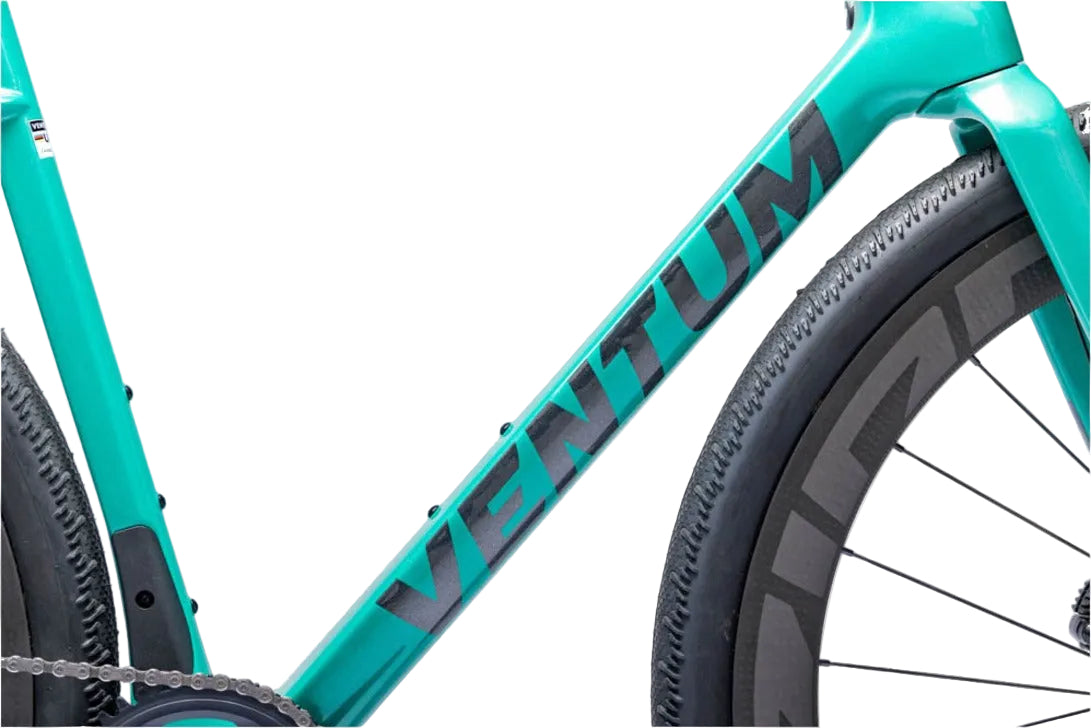

Frame

Ventum GS1 V3 gravel frame

- Full carbon fiber construction

- Internal cable routing

- T47 threaded BB

- Flat mount disc brake

- UDH

Fork

Ventum GS1 fork

- Tapered carbon steerer

- Internal brake routing

- Flat mount disc brake

- Carbon dropouts

Wheels
Wheelset

Zipp 303 SW, TLR, Centerlock, 12x100, 12x142

Tires

Goodyear XPLR Inter, 700x45c

Drivetrain and Brakes
Rear Derailleur

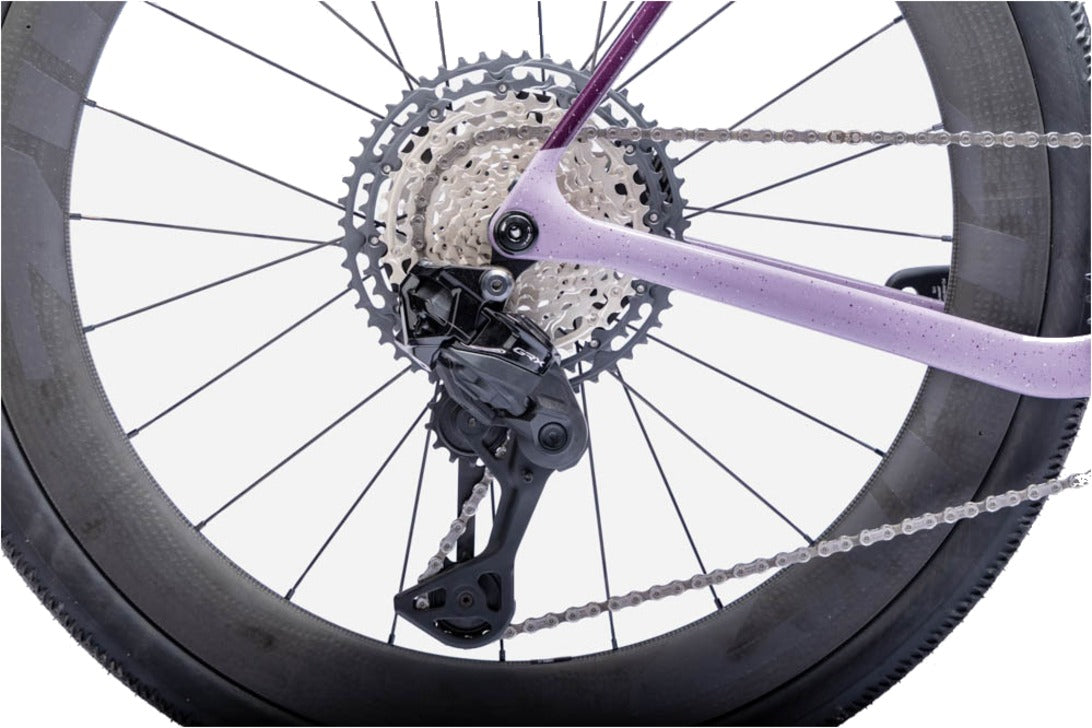

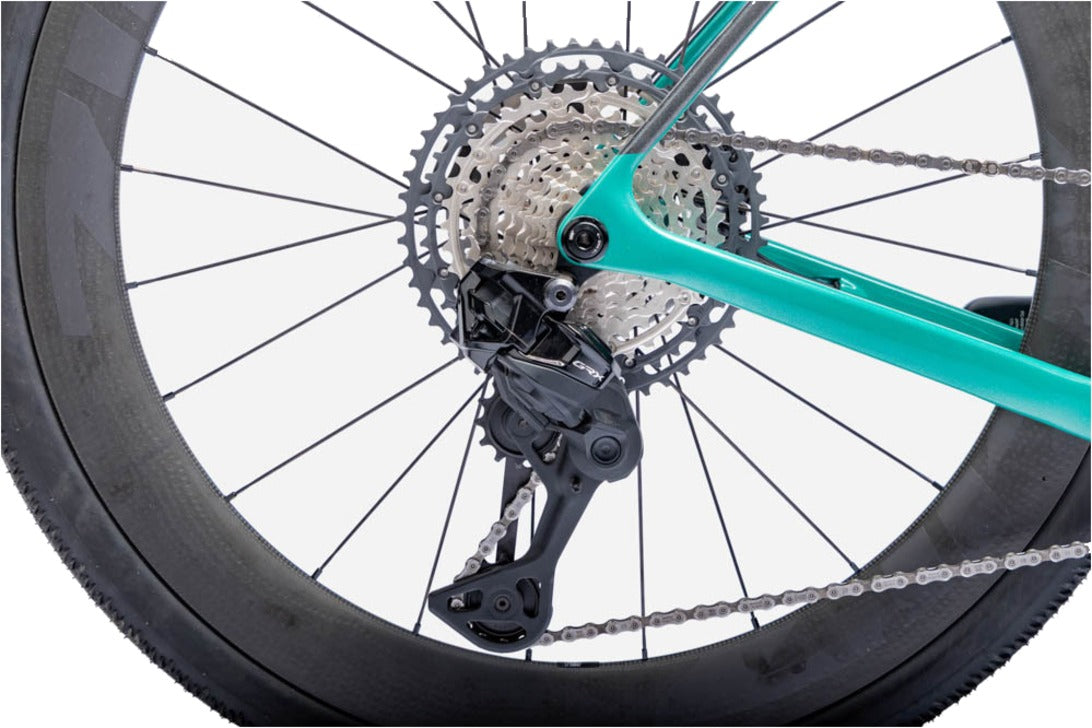

Shimano GRX Di2, 1x12 speed, Electronic shifting

Front Derailleur

Shimano GRX Di2, 1x12 speed, Electronic shifting

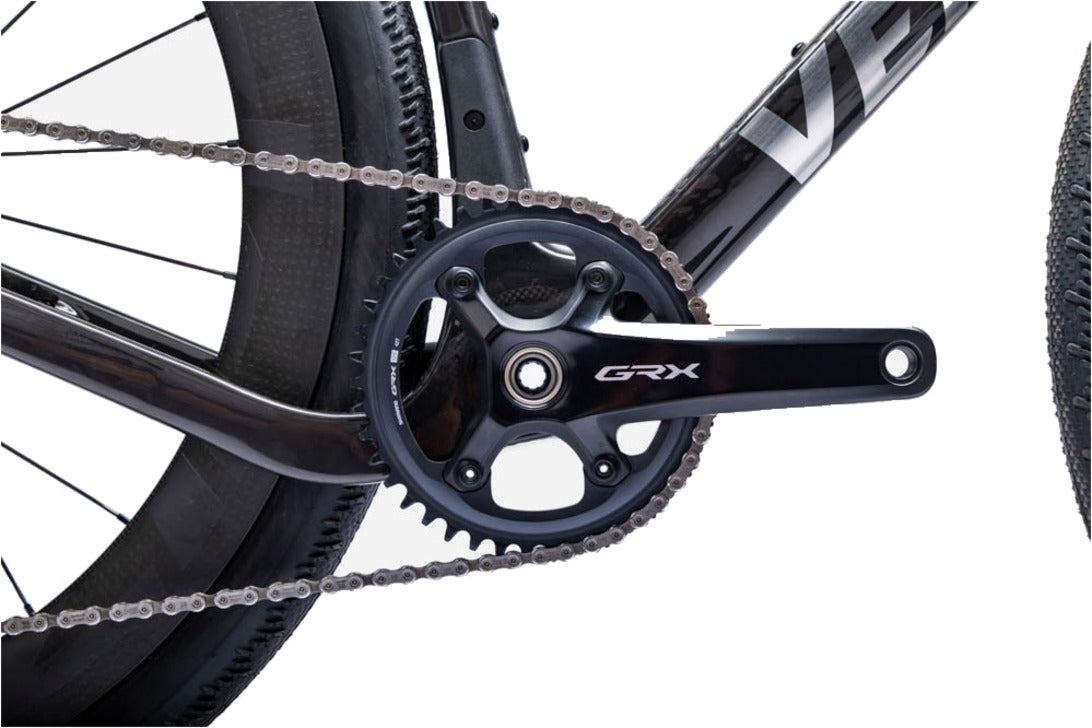

Crankset

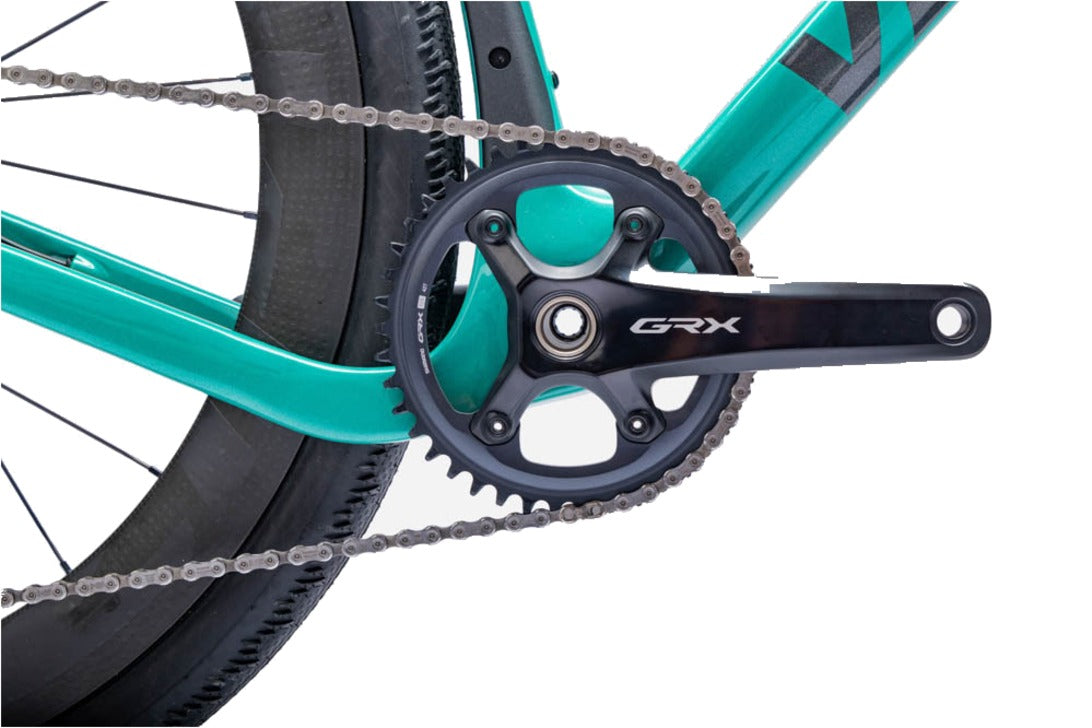

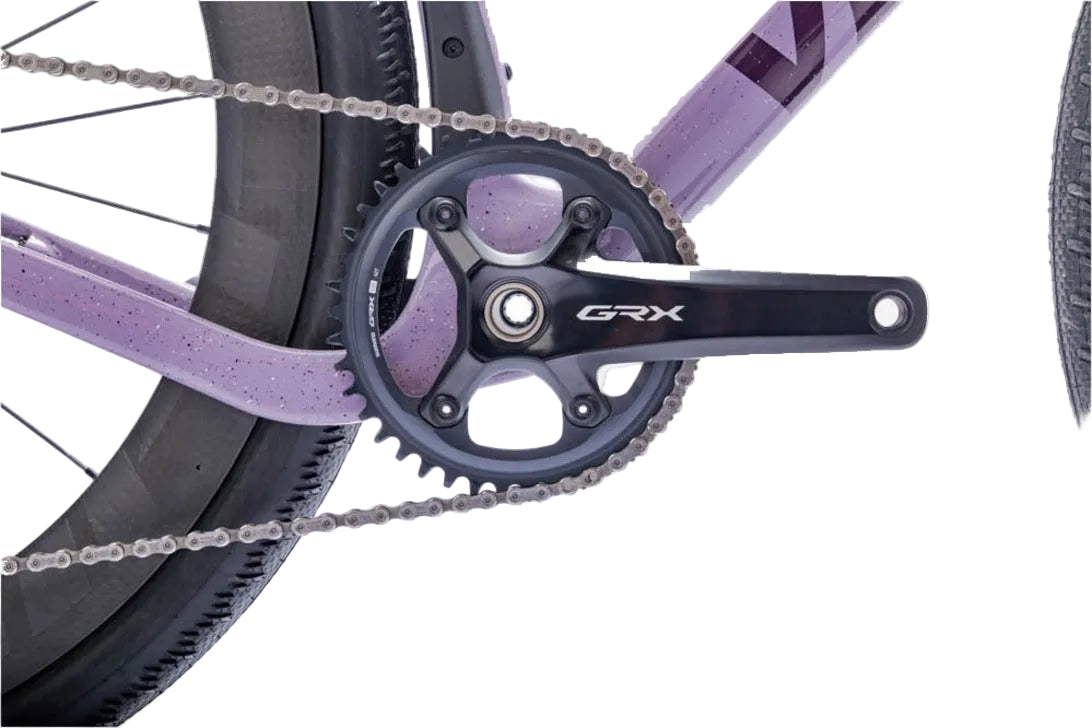

Shimano GRX 1x Crankset, 40T chainring

- Size XS, S, M, M/L - 170mm crank length

- Size L, XL - 172.5mm crank length

Brakes

Shimano GRX Di2, hydraulic disc

Cockpit

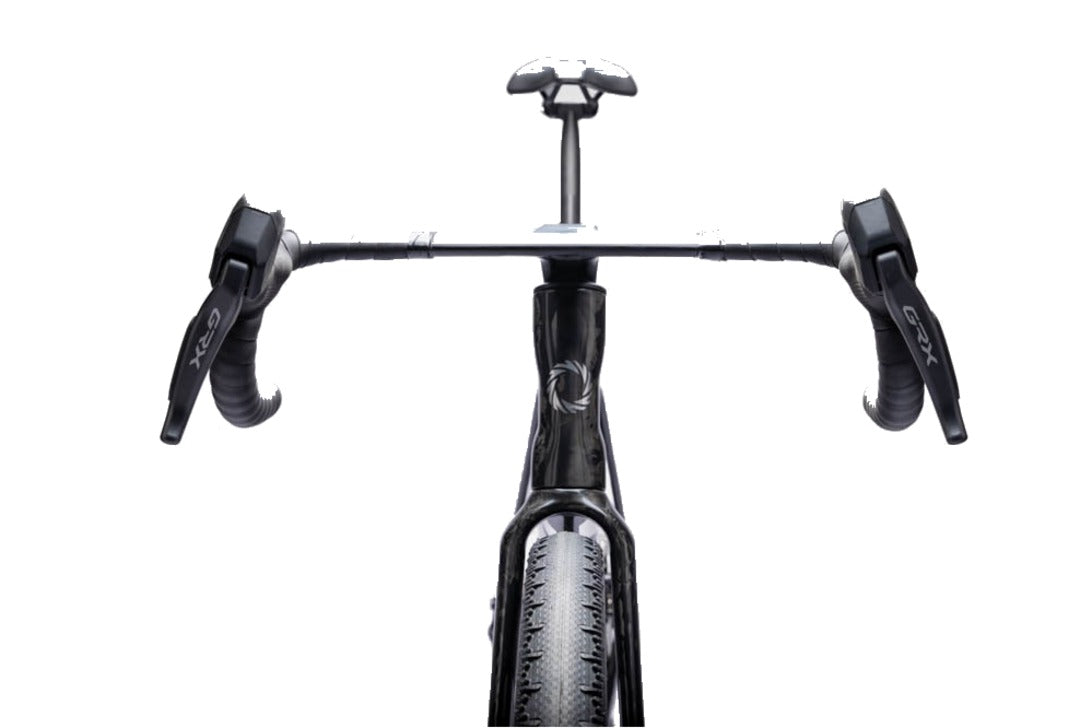

Handlebars

Ventum CR5 Integrated Cockpit

- Size XS - 40cm x 90mm

- Size S, M, M/L, L - 42cm x 90mm, Size XL - 44cm x 100mm

Saddle

Fizik Vento Argo 5, S-Alloy rails

**Specifications subject to change without notice
