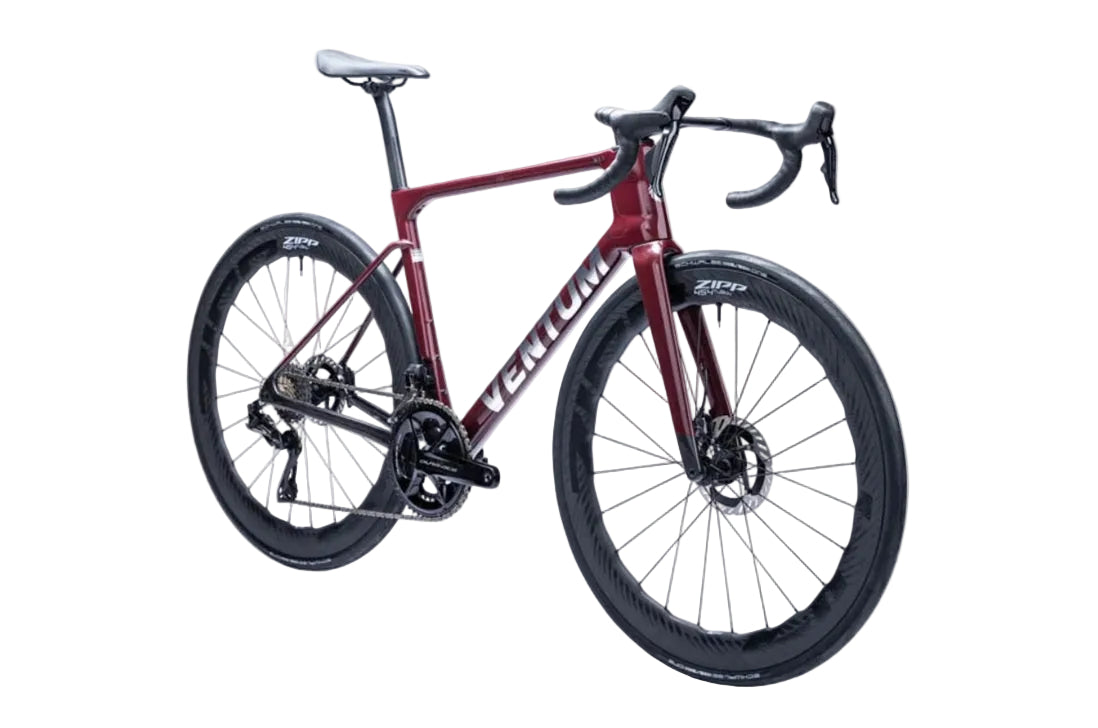

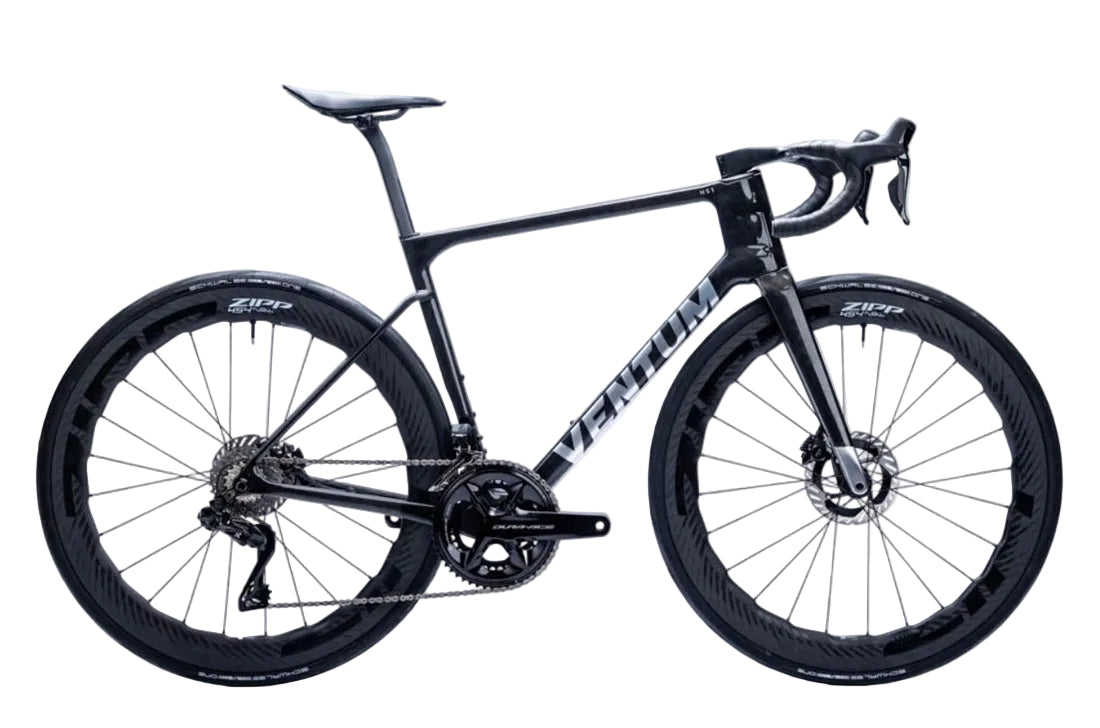

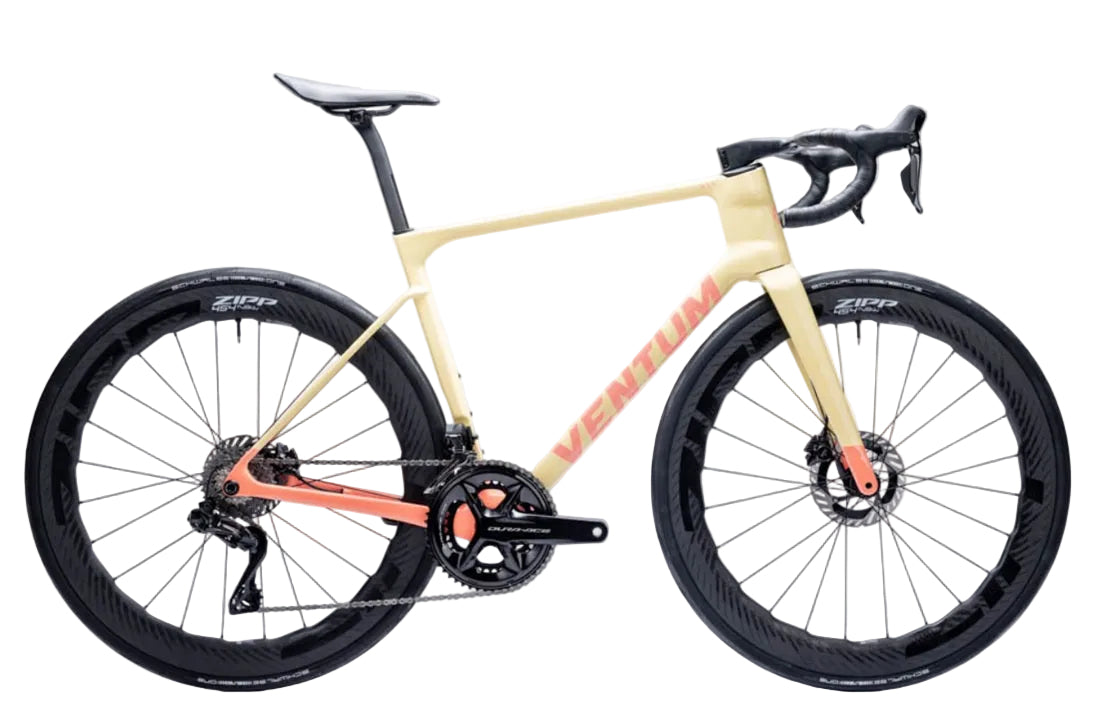

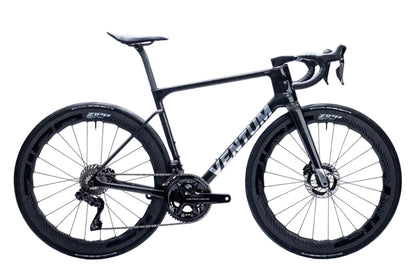

About The Ventum NS1 Carbon Shimano Dura-Ace Di2 Road Bike

The Ventum NS1 Carbon Shimano Dura-Ace Di2 is a full carbon fiber road bike built as an all-rounder — capable on long climbs, comfortable on long training days, and quick enough for race day. This third-generation NS1 uses a higher-modulus carbon layup that Ventum states cuts more than 200 grams versus the previous generation while adding frame stiffness. The front end has been reworked with an extended leading edge ahead of the steerer and a pronounced hourglass head tube, narrowing the frame's profile into the wind.

This build pairs the frame with a Shimano Dura-Ace Di2 2x12-speed electronic groupset, Shimano Dura-Ace hydraulic disc brakes, and Zipp 454 NSW carbon tubeless wheels with integrated TyreWiz. The Ventum CR2 one-piece carbon bar/stem keeps the front end clean with internal routing, and tire clearance up to 700x35c (700x30c stock) leaves room to size up for comfort or rougher roads without changing bikes.

Who It's For

  • Riders who want one road bike for racing, structured training, and long days in the saddle, not a dedicated race-only frame
  • Riders who want Shimano Dura-Ace Di2 electronic shifting and hydraulic disc braking
  • Larger-frame riders who want a more accommodating reach and stack without softer handling
  • Consider a different bike if you need gravel-level tire clearance beyond 700x35c, or prefer mechanical shifting

What to Look For

  • Fit first: crank length, bar width, and stem length change by frame size, and the one-piece CR2 cockpit means a bar/stem change is a cockpit change
  • Component tier: this build carries full Shimano Dura-Ace Di2 and Zipp 454 NSW wheels — confirm it matches the investment level you're targeting
  • Terrain: stock 700x30c tires suit smooth pavement; riders planning rougher roads should note the 700x35c max clearance

Key Features

Frame and fork: The full carbon NS1 frame and fork use internal cable routing, a T47 threaded bottom bracket, flat mount disc brakes front and rear, and a UDH derailleur hanger. The threaded BB simplifies service versus press-fit systems, and the reworked front end — extended leading edge, hourglass head tube — is built to cut frontal area and drag.

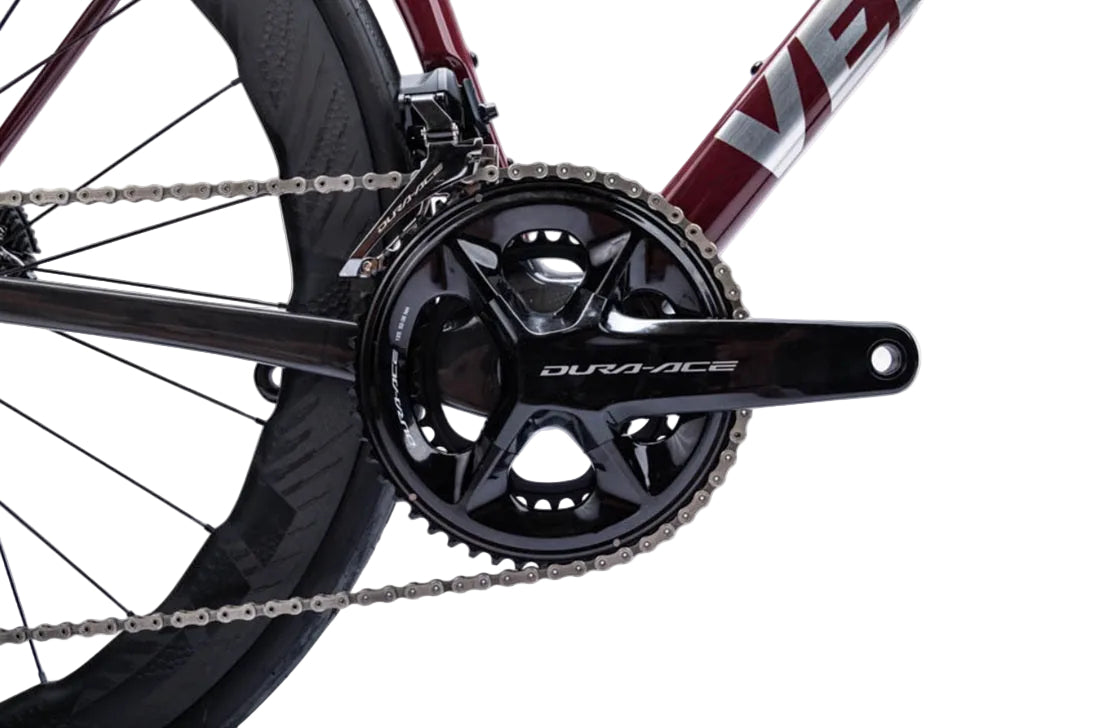

Groupset: Shimano Dura-Ace Di2 2x12-speed electronic shifting runs 52/36T chainrings (170mm cranks XS–M/L, 172.5mm L–XL) and an 11-30T Dura-Ace cassette, pairing electronic shift precision with enough range for climbing.

Braking: Shimano Dura-Ace Di2 hydraulic disc brakes with Dura-Ace RT-MT900 Centerlock rotors (160mm front, 140mm rear) for consistent stopping power in mixed weather.

Wheels and tires: Zipp 454 NSW carbon tubeless wheels with integrated TyreWiz and stock Schwalbe One Performance RaceGuard tires (700x30c), with clearance to 700x35c for added comfort or puncture protection on rougher pavement.

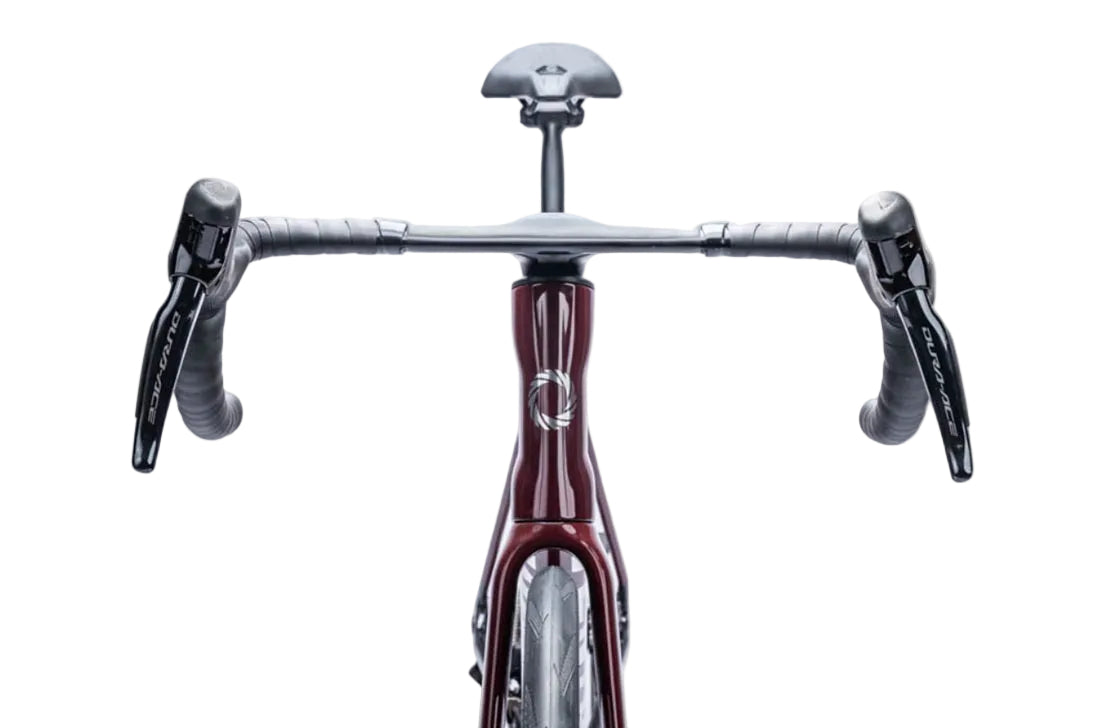

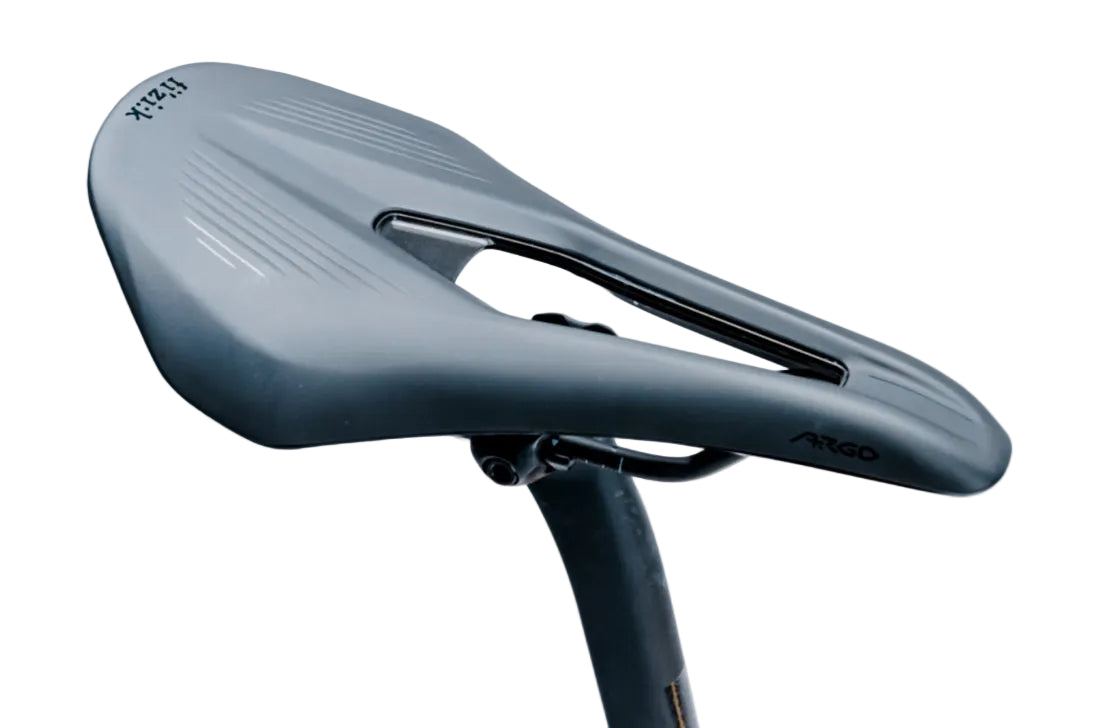

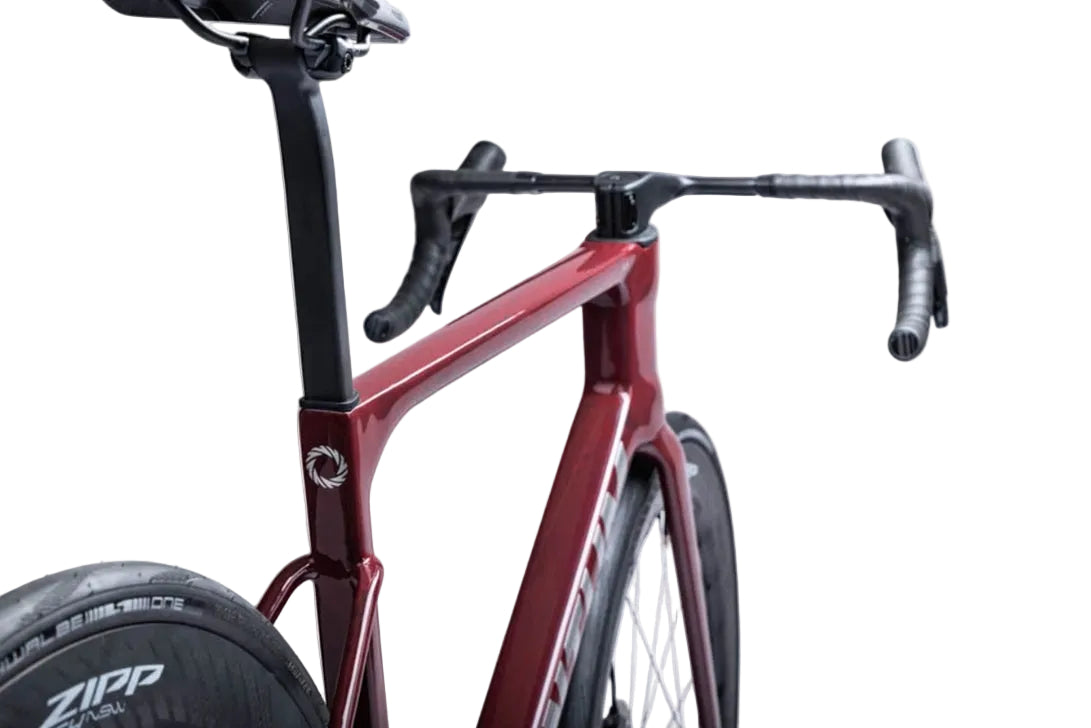

Cockpit: The Ventum CR2 one-piece carbon bar/stem is sized per frame — width and length both scale with size — alongside a Ventum carbon seatpost (10mm offset) and Fizik Vento Argo R5 saddle (140mm). A computer mount is integrated; the computer is sold separately.

Rider Intent Summary

  • Biggest strengths: full Shimano Dura-Ace Di2 groupset, Zipp 454 NSW carbon wheels, and a frame redesigned for less weight and drag
  • Tradeoffs: the one-piece CR2 cockpit limits bar/stem adjustment after purchase, and the computer mount needs a separately purchased computer
  • What makes it different: extended reach and stack (especially on larger sizes) widen the fit range without softening race geometry, and 700x35c clearance is generous for an aero-focused frame

Victory's Take

We'd point riders here when they want one road bike that handles race day and everyday training without a groupset or wheel upgrade — this Dura-Ace Di2 and Zipp 454 NSW spec is about as complete as an all-rounder build gets. At Victory Bicycle Studio, we still recommend a professional fit before ordering, since the CR2 cockpit's sizing is tied to frame size rather than independently adjustable.

What you get

  • Frame - Ventum NS1 carbon, road frame
  • Fork - Ventum NS1 carbon fork
  • Wheels - ZIPP 454 NSW Carbon Wheelset
  • Component Groupset - Shimano Dura-Ace Di2 12-Speed

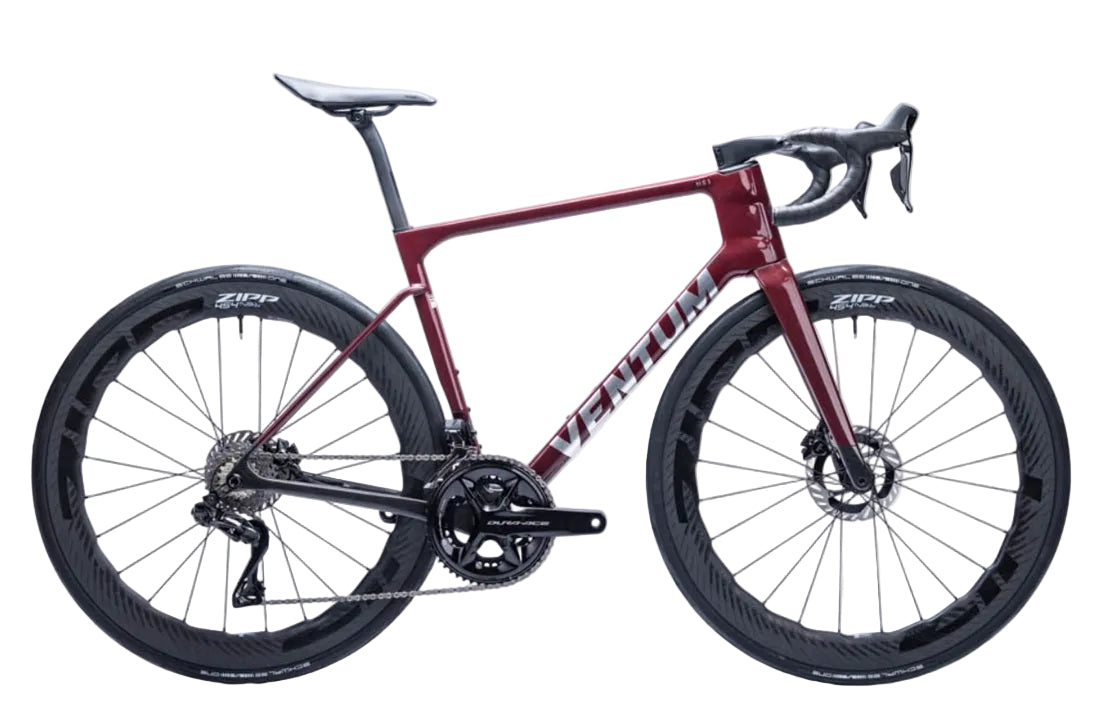

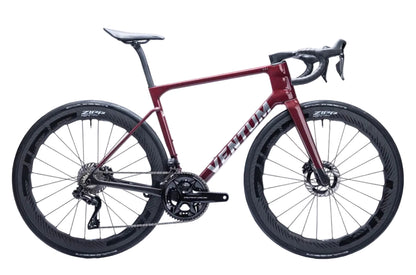

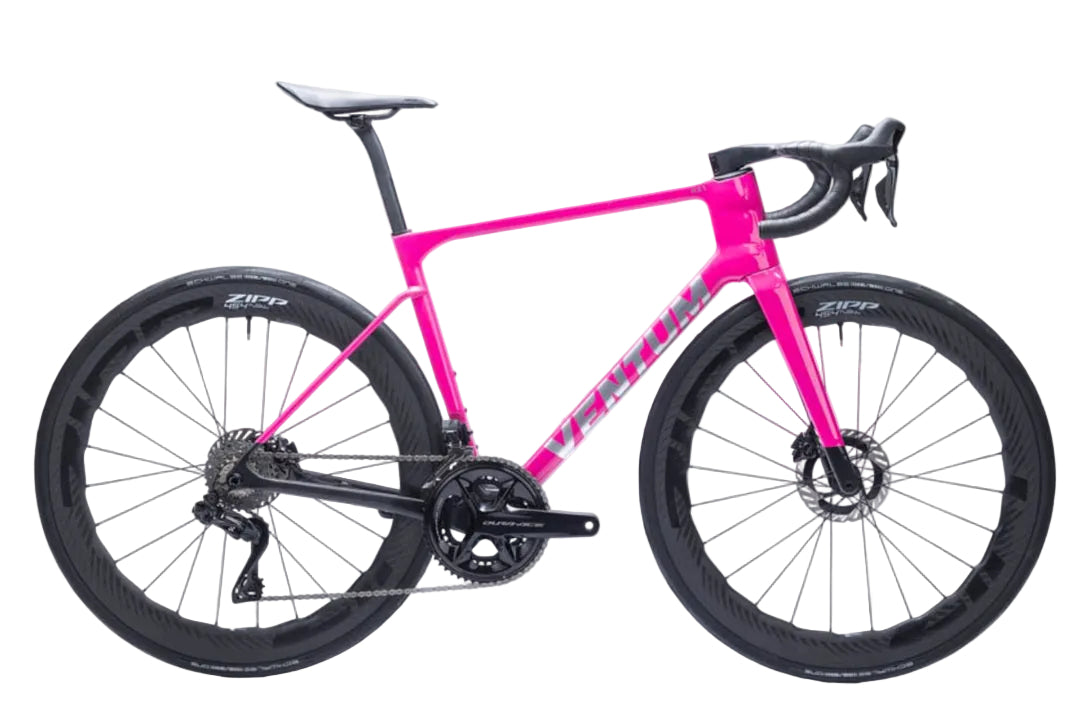

Ventum NS1 Carbon Shimano Dura-Ace Di2 Road Bike

Ventum

Ventum NS1 Carbon Shimano Dura-Ace Di2 Road Bike

Regular price $11,299.00 USD
Sale price $11,299.00 USD Regular price

features

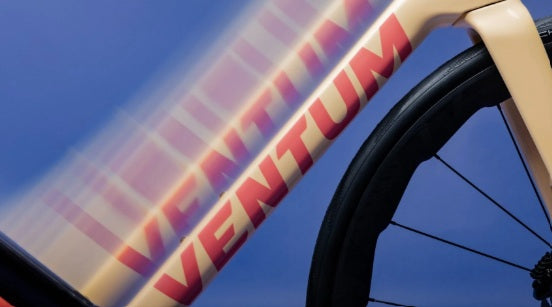

  • Featherweight Frame

    The third-generation NS1 frame is more than 200g lighter than its predecessor, weighing in at just 852g in a M/L.

    That reduction comes from a new carbon layup, use of a higher-modulous carbon fiber, and by shaving mass from the front end and seat stays.

    Less weight doesn’t come at the expense of ride quality. In testing, the new chassis is 7.7% stiffer in the head tube and 11.9% stiffer in the bottom bracket. It’s livelier on the climbs, more responsive through corners, and stiffer where it matters.

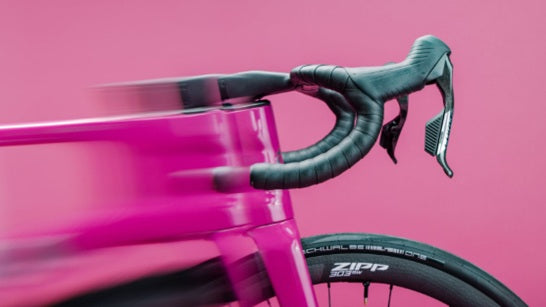

  • More Aero

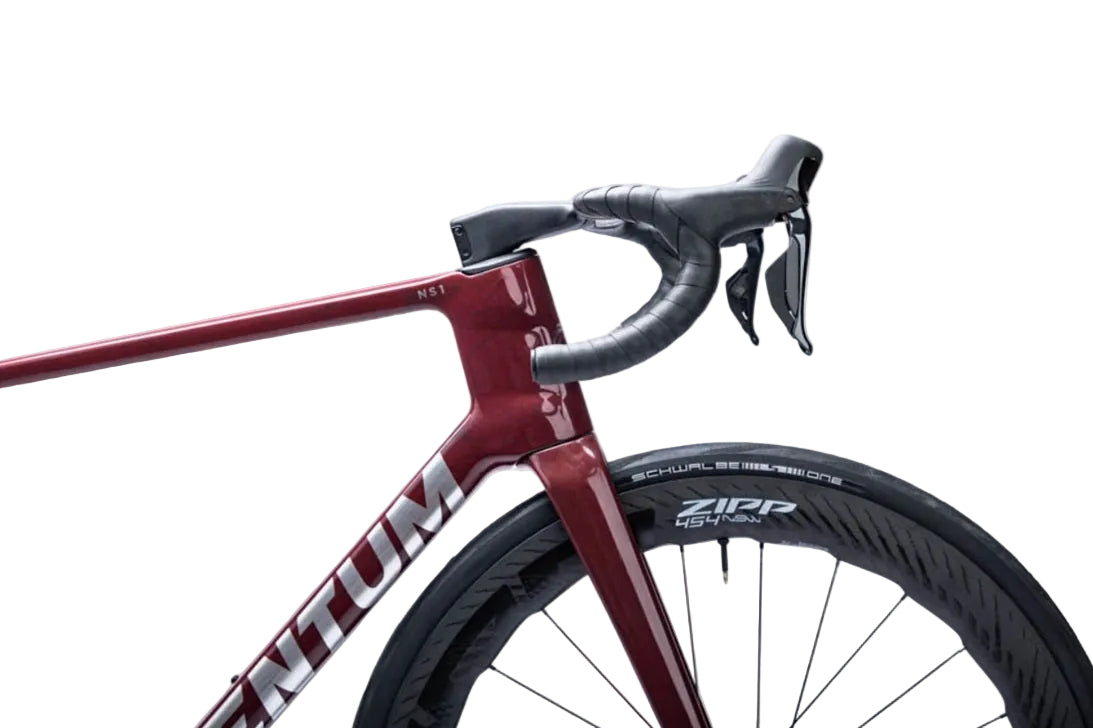

    An all new front end, inspired by the Tempus TT bike, cuts through the wind.

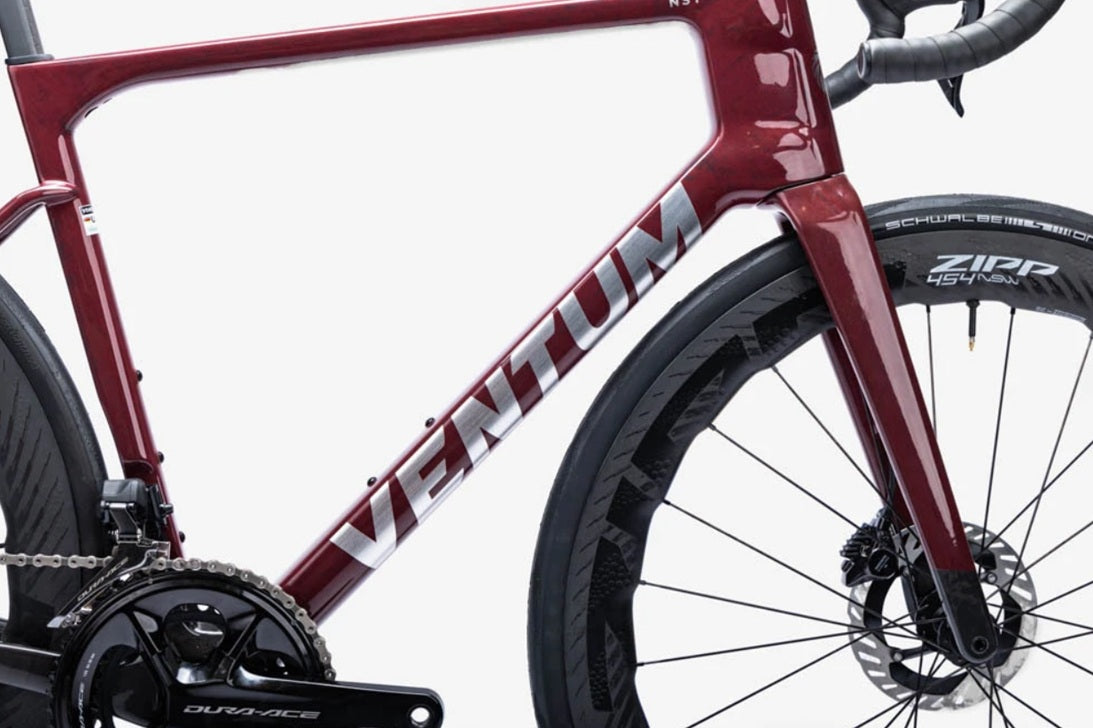

    The leading edge of the NS1 has been extended forward of the steerer, creating space for a cleaner, more efficient airfoil. We’ve also narrowed the waist of the frame by using an hourglass head tube, reducing the frontal area.

    The fork has been redesigned to match. Deeper airfoils on the fork legs extend down from the new head tube, improving airflow management while also increasing stiffness.

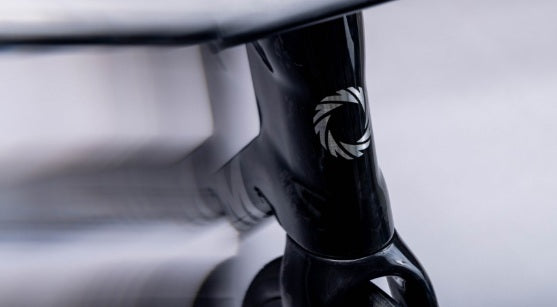

  • Improved Fit, Same Snappy Handling

    Speed is easier to find when the position is right. The NS1’s geometry has been updated to help riders hold an aerodynamic position more comfortably for longer.

    The stack and reach figures have been increased slightly over its predecessor — particularly on larger sizes. But aside from that change, we’ve protected the NS1’s racy handling.

    Nimble in corners. Stable at speed. Lively everywhere.

Specifications

Frameset
Frame

Ventum NS1 road frame

- Full carbon fiber construction

- Internal cable routing

- T47 threaded BB

- Flat mount disc brake

- UDH

Fork

Ventum NS1 fork

- Tapered carbon steerer

- Internal brake routing

- Flat mount disc brake

- Carbon dropouts

Wheels
Wheelset

ZIPP 454 NSW

- Tubeless, disc brake

- Carbon

- Rear Wheel (HG Driver)

Tires

Schwalbe One

- Performance RaceGuard

- 700x30c

Drivetrain and Brakes

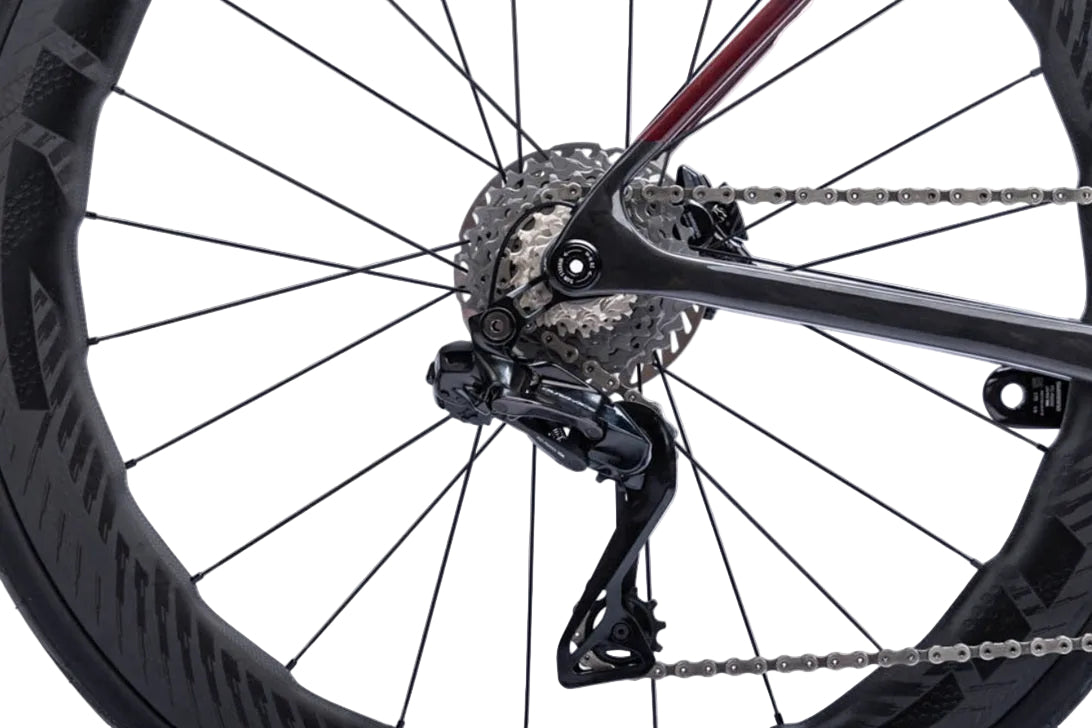

Rear Derailleur

Shimano Dura-Ace Di2, RD-R9250

Front Derailleur

Shimano Dura-Ace Di2, FD-R9250

Crankset

Shimano Dura-Ace Di2, FC-R9200, 52/36T

Brakes

Shimano Dura-Ace Di2, hydraulic disc

Cassette

Shimano Dura Ace, CS-R9200, 11-30T

Cockpit
Handlebars

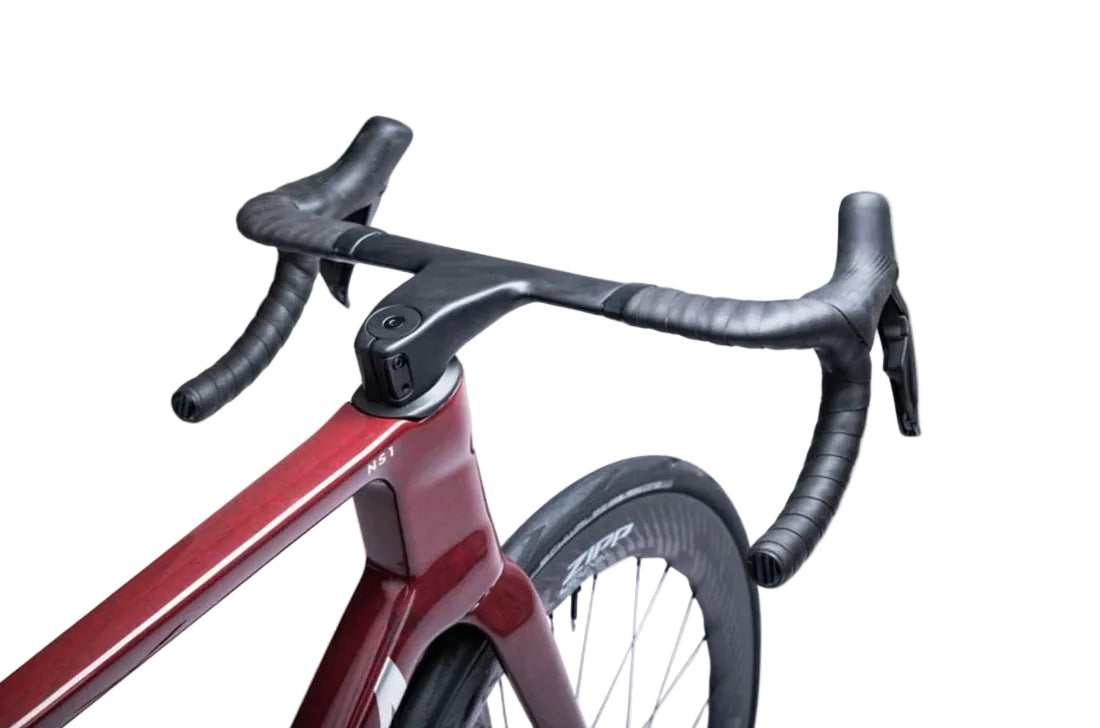

Ventum CR2 one-piece cockpit

- XS, S - 90mm stem length, 40cm bar width

- M, M/L - 90mm stem length, 42cm bar width

- L - 100mm stem length, 42cm bar width

- XL - 100mm stem length, 44cm bar width

Saddle

Fizik Vento Argo R5, 140mm

**Specifications subject to change without notice
