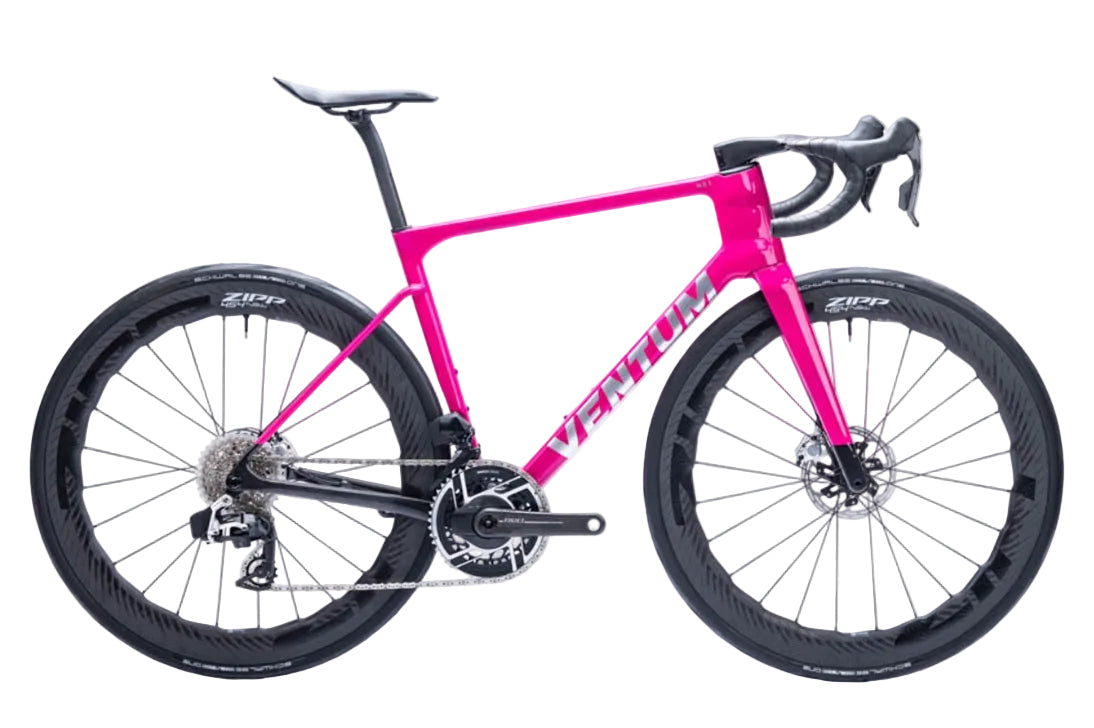

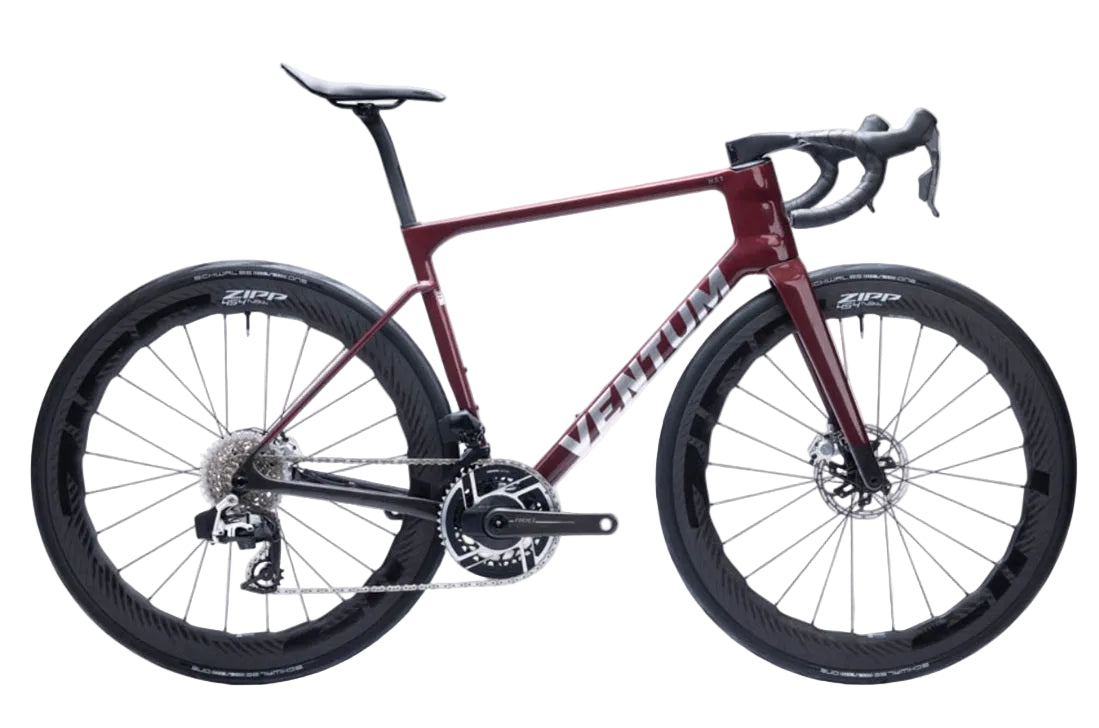

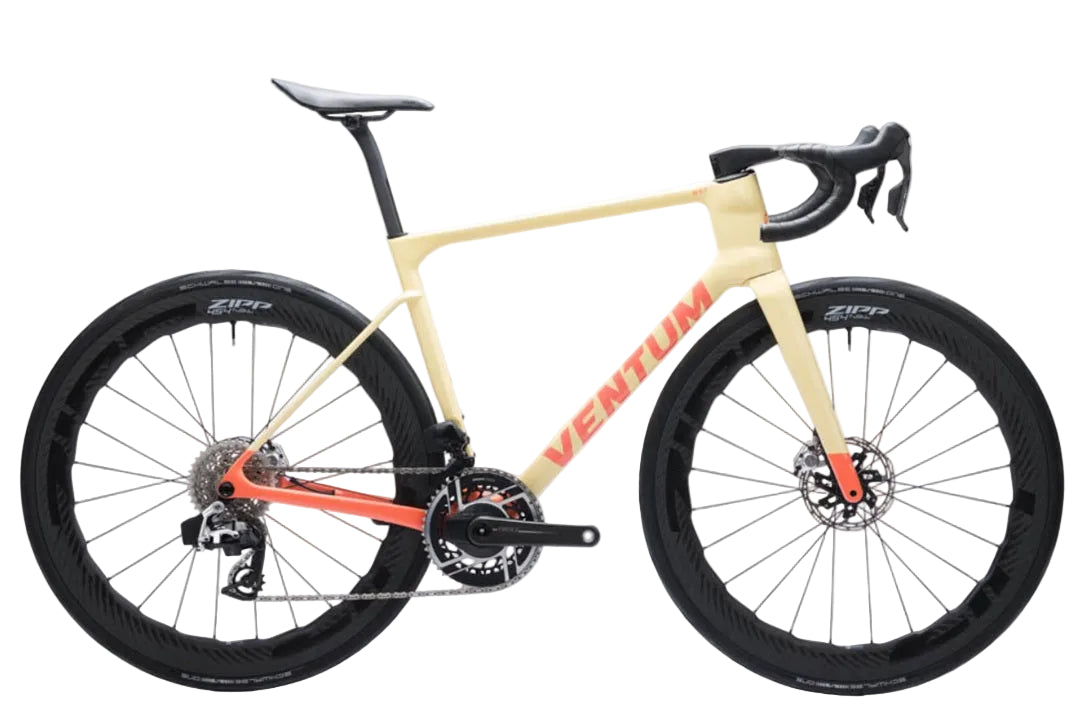

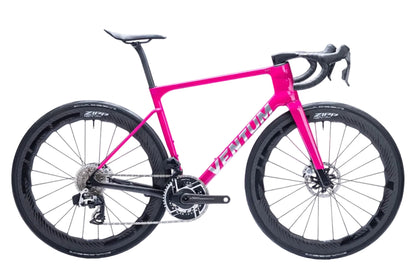

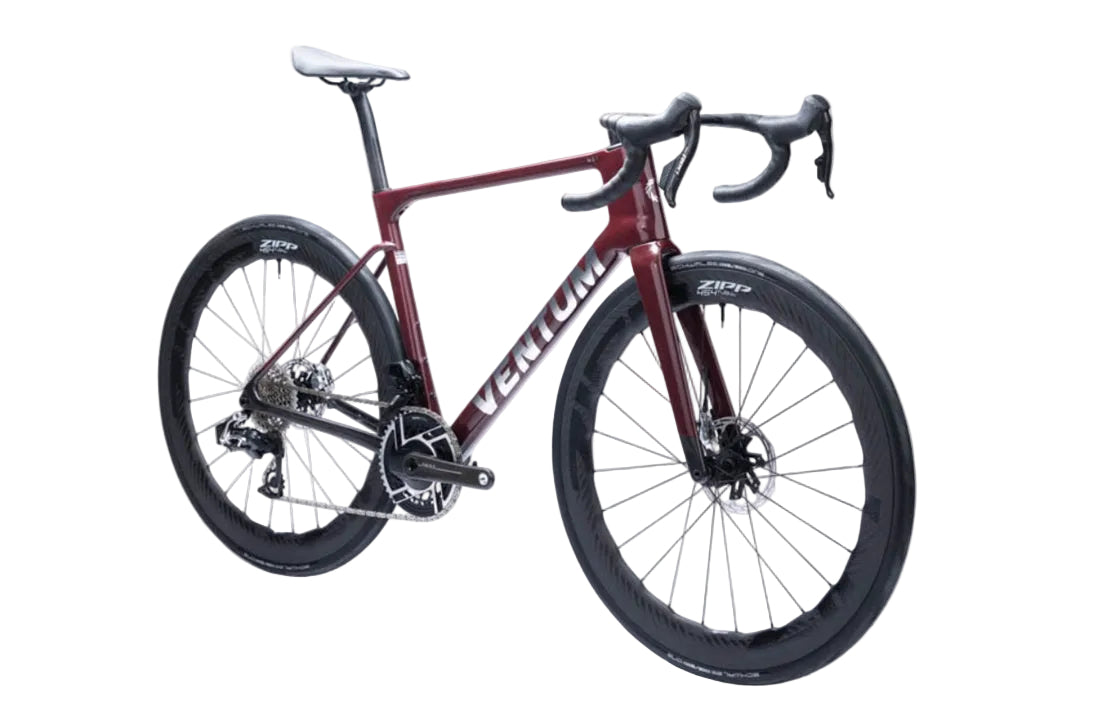

About The Ventum NS1 V3 Carbon SRAM Red AXS Disc Road Bike

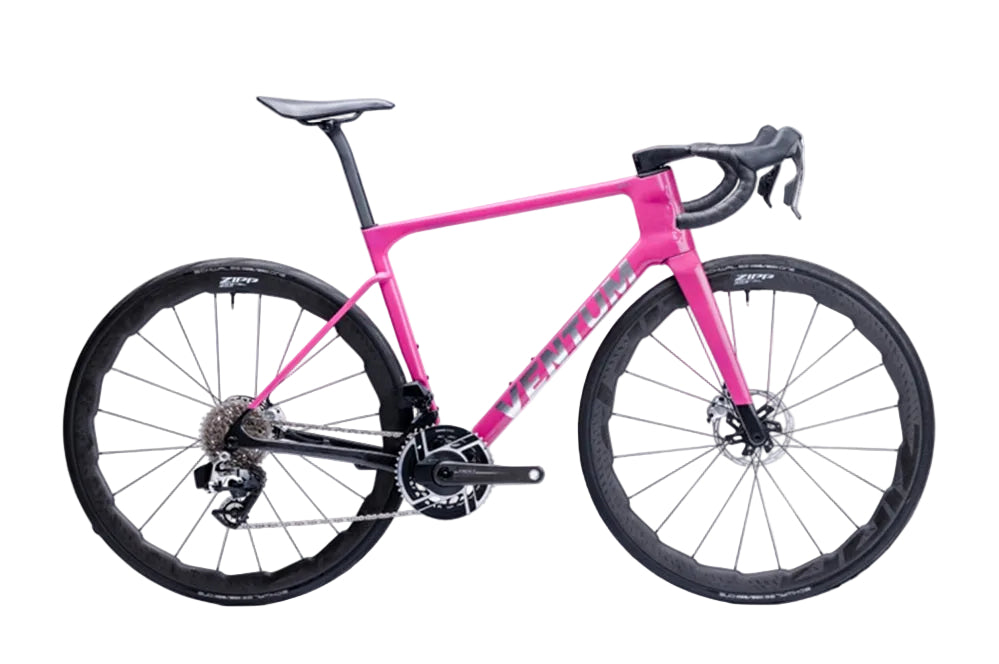

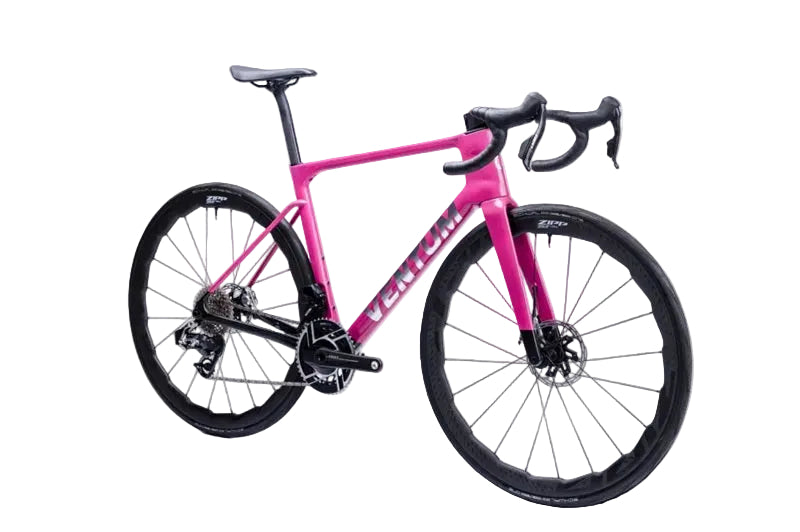

The Ventum NS1 Carbon SRAM Red AXS is a full carbon fiber race road bike for riders chasing speed on race day and fast group rides. This third-generation NS1 is lighter, stiffer, and more aerodynamic than its predecessor, built with SRAM's Red AXS 12-speed electronic groupset, a crank-based power meter, ZIPP 454 NSW carbon wheels, and the Ventum CR2 one-piece carbon bar/stem — a complete race package rather than a frame built up piece by piece.

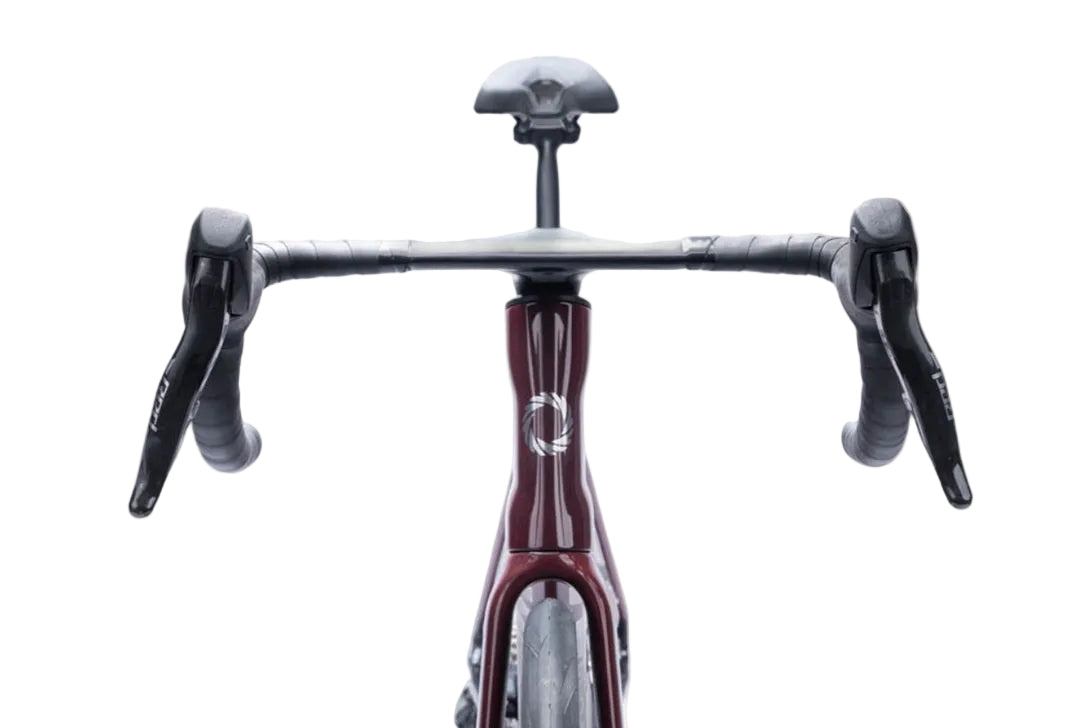

Ventum reworked the front end for this generation, extending the leading edge forward of the steerer and adding a pronounced hourglass head tube that narrows the frame's waist and cuts frontal area. A higher modulus carbon layup shaved over 200g from the frame, while flat mount disc brakes, a T47 threaded bottom bracket, and a UDH derailleur hanger round out the platform. Geometry stays race-aggressive, but Ventum added reach and stack on larger sizes to widen the fit range without giving up the aero position.

Who It's For

  • Racers and fast group ride riders who want an aero frame paired with electronic shifting
  • Riders who want a crank-based power meter built into the groupset from day one
  • Riders comfortable in an aggressive position — added reach and stack on larger sizes make it more attainable across body types
  • Riders needing tire clearance beyond 700x35c or a more upright endurance geometry should look elsewhere

What to Look For

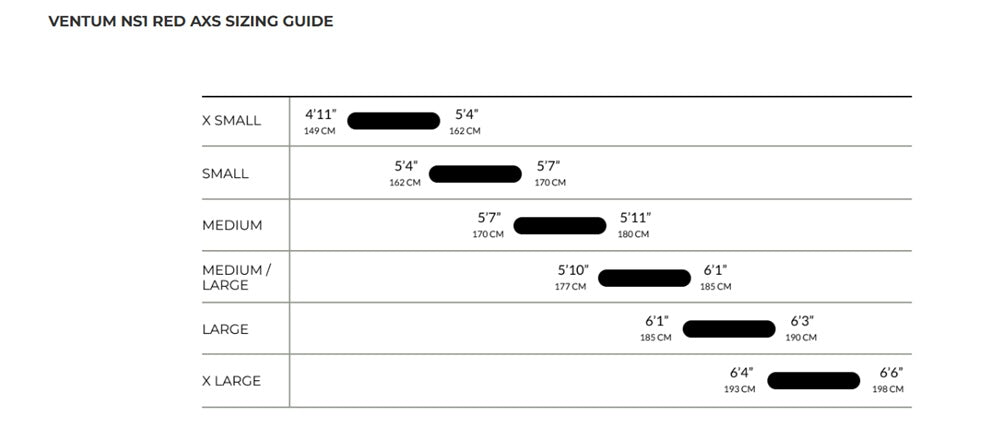

  • Confirm fit against stock crank length, bar width, and stem length for your size — these vary from 165mm cranks on XS/S up to 172.5mm on L/XL
  • Decide how much tire clearance you need — the NS1 ships with 700x30c tires and tops out at 700x35c, built for road and light all-road use, not gravel
  • Confirm SRAM Red AXS fits your budget — it's SRAM's top-tier electronic groupset, priced accordingly

Key Features

Frame and fork: A higher modulus carbon layup cut over 200g from the frame, paired with an extended leading edge and hourglass head tube that narrow the frontal profile. Internal cable routing, a T47 threaded bottom bracket, flat mount disc brakes, and a UDH derailleur hanger keep it current. The fork uses a tapered carbon steerer, internal brake routing, and carbon dropouts.

Groupset and shifting: SRAM Red AXS drives 2x12-speed electronic shifting with a crank-based power meter built in, so training data comes standard. The 48/35T chainrings pair with a wide-range SRAM XG 1290 10-36T cassette for gearing that covers sprints and climbs.

Braking: SRAM Red AXS hydraulic disc brakes pair with Centerlock Paceline X rotors — 160mm front, 140mm rear.

Wheels and tires: ZIPP 454 NSW carbon wheels are tubeless-ready with a rear XDR driver body for SRAM 12-speed compatibility. Stock Schwalbe One tires run 700x30c, with clearance up to 700x35c.

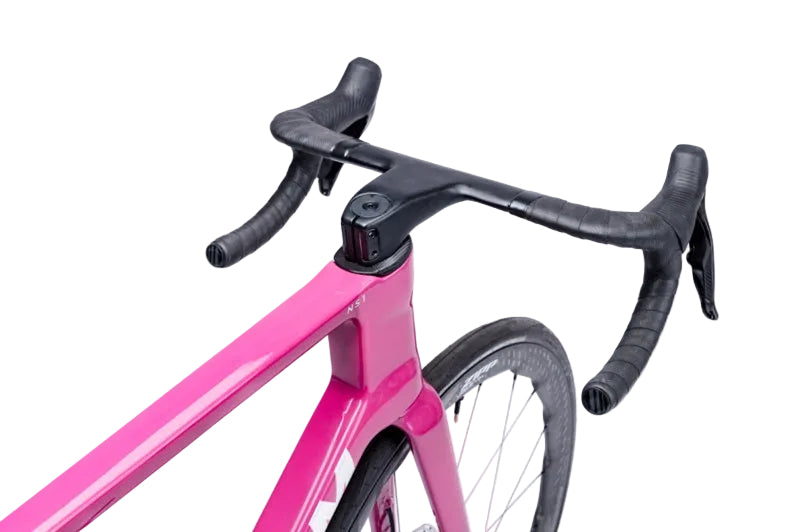

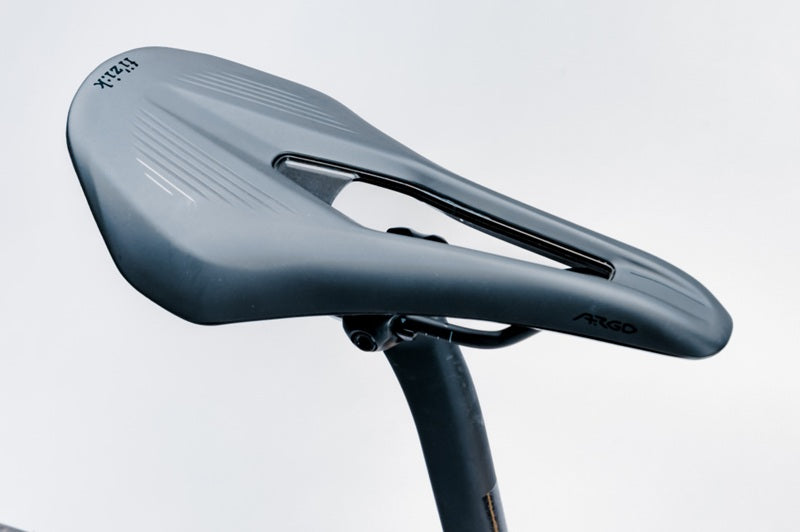

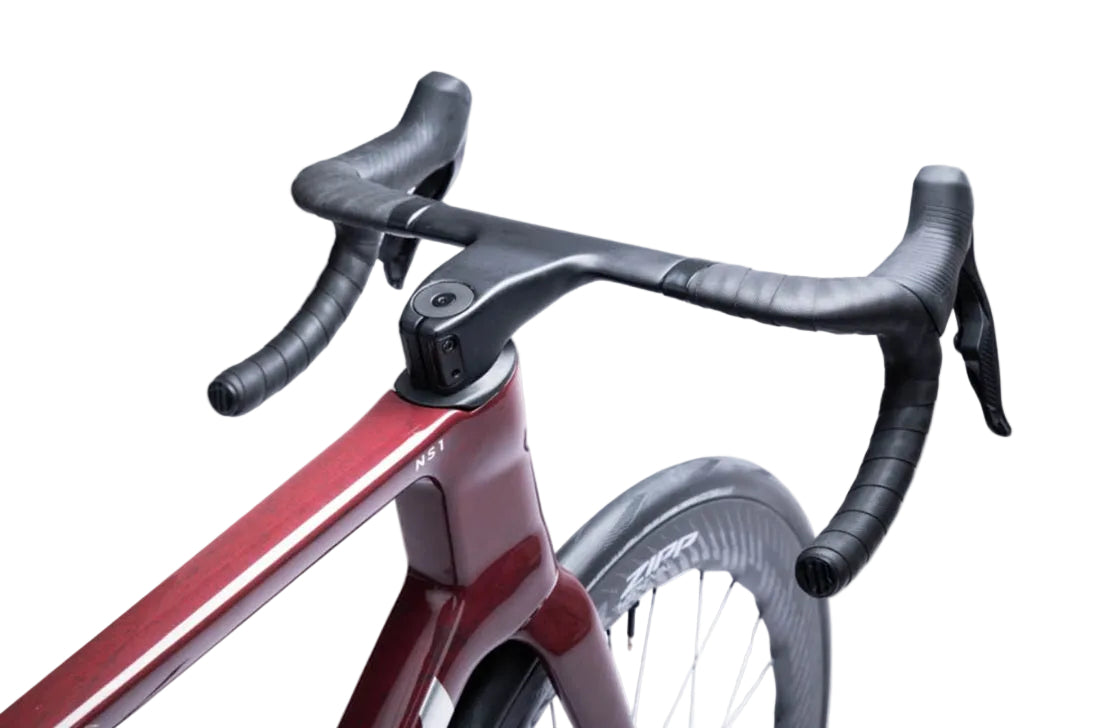

Cockpit: The Ventum CR2 one-piece carbon bar/stem cleans up cable routing versus a two-piece setup, with an integrated computer mount (sold separately). A Fizik Vento Argo R5 saddle, Ventum carbon seatpost with 10mm offset, and FSA Powertouch tape complete the build.

Rider Intent Summary

  • Biggest strengths: Full SRAM Red AXS electronic groupset with integrated power meter, ZIPP 454 NSW carbon wheels, and a frame that dropped over 200g while getting more aero
  • Tradeoffs: Race-focused geometry and a 700x35c max tire size make this a road and light all-road bike, not a gravel bike
  • What makes it different: The extended leading edge and hourglass head tube redesign, paired with added reach and stack on larger sizes for a wider fit range without losing the aero position

Victory's Take

We build our fit process around bikes like the NS1 Red AXS — it's an aggressive race platform, and getting reach and stack dialed in matters as much as the spec sheet. Every NS1 with SRAM Red AXS that leaves Victory Bicycle Studio goes through our White Glove process: assembled, tuned, and fit-checked by hand before it reaches you.

What you get

  • Frame - Ventum NS1 Carbon Road Frame
  • Fork - Ventum NS1 Carbon Fork
  • Groupset - SRAM Red AXS 12 Speed (Electronic)
  • Wheels - Zipp 353 NSW Carbon Wheelset
  • Tires - Schwalbe One | Performance RaceGuard | 700x30c
Ventum NS1 V3 Carbon SRAM Red AXS Disc Road Bike

Ventum

Ventum NS1 V3 Carbon SRAM Red AXS Disc Road Bike

Regular price $9,899.10 USD
Sale price $9,899.10 USD Regular price $10,999.00 USD

features

  • A FEATHERWEIGHT FRAME

    Third-generation NS1 frame is > than 200g lighter than predecessor, weighing in at 852g in a M/L.
    Reduction comes from new carbon layup, use of a higher-modulous carbon fiber, and by shaving mass from the front end and seat stays.
    Less weight doesn’t come at the expense of ride quality. In testing, new chassis is 7.7% stiffer in the head tube and 11.9% stiffer in the bottom bracket. It’s livelier on the climbs, more responsive through corners, and stiffer where it matters.

  • MORE AERO

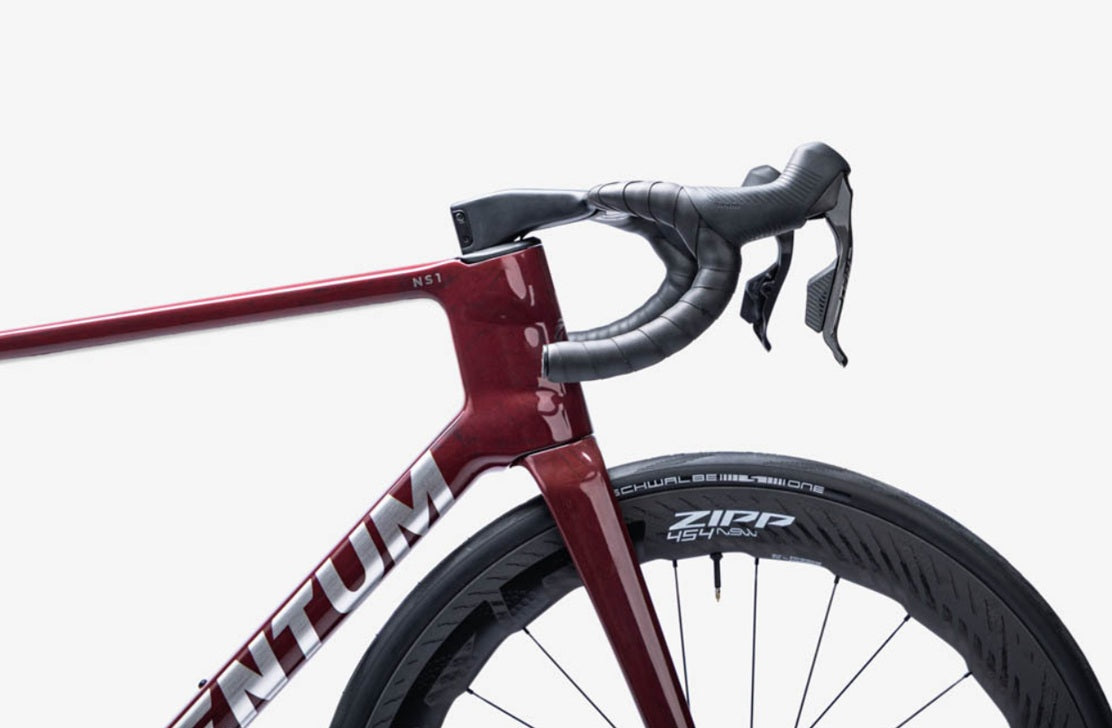

    An all new front end, inspired by the Tempus TT bike, cuts through the wind.

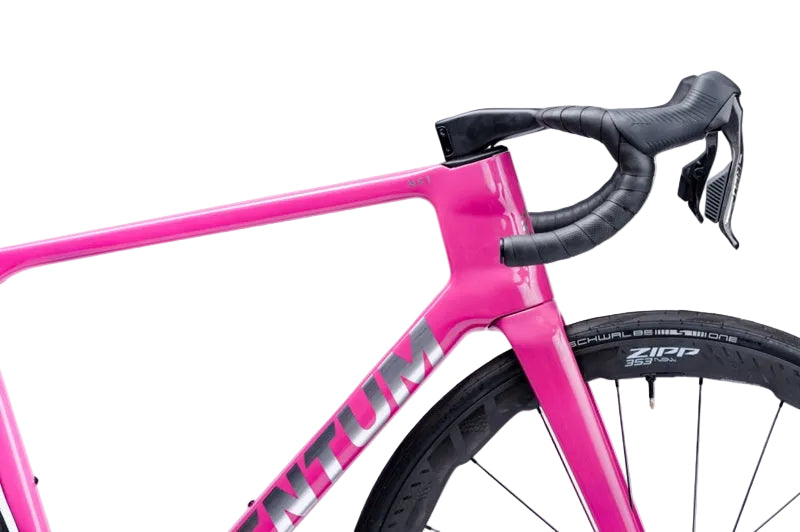

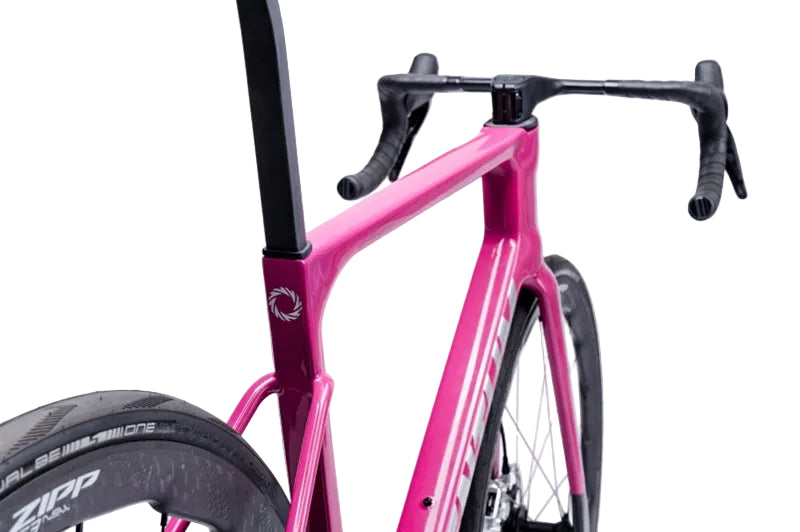

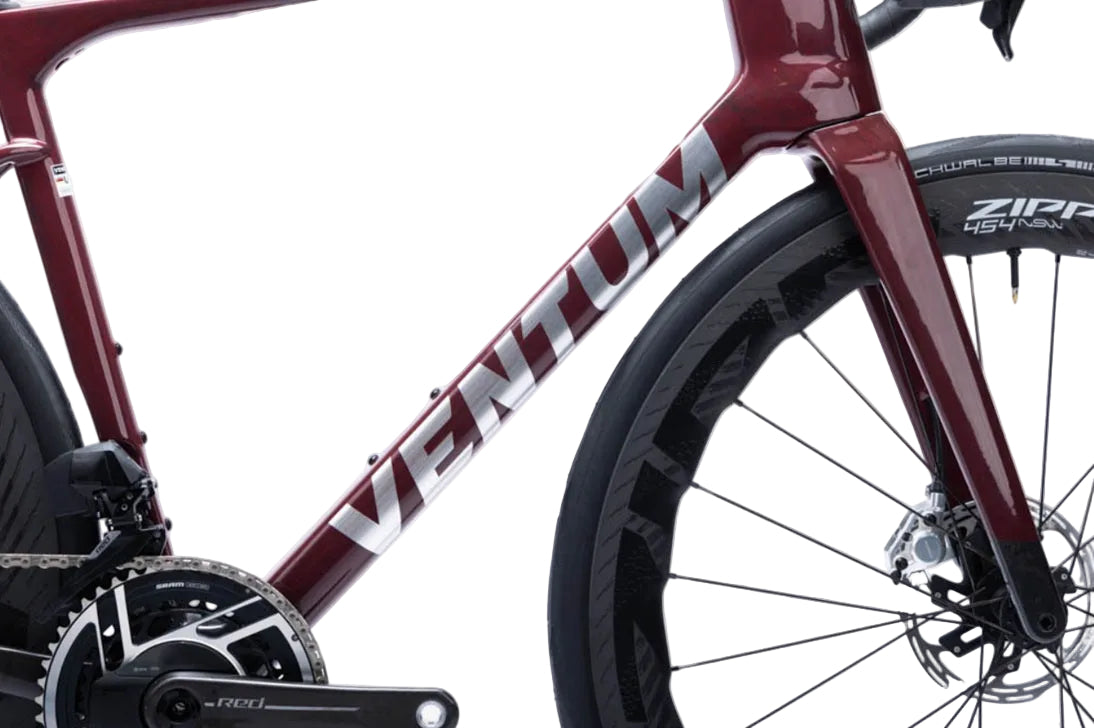

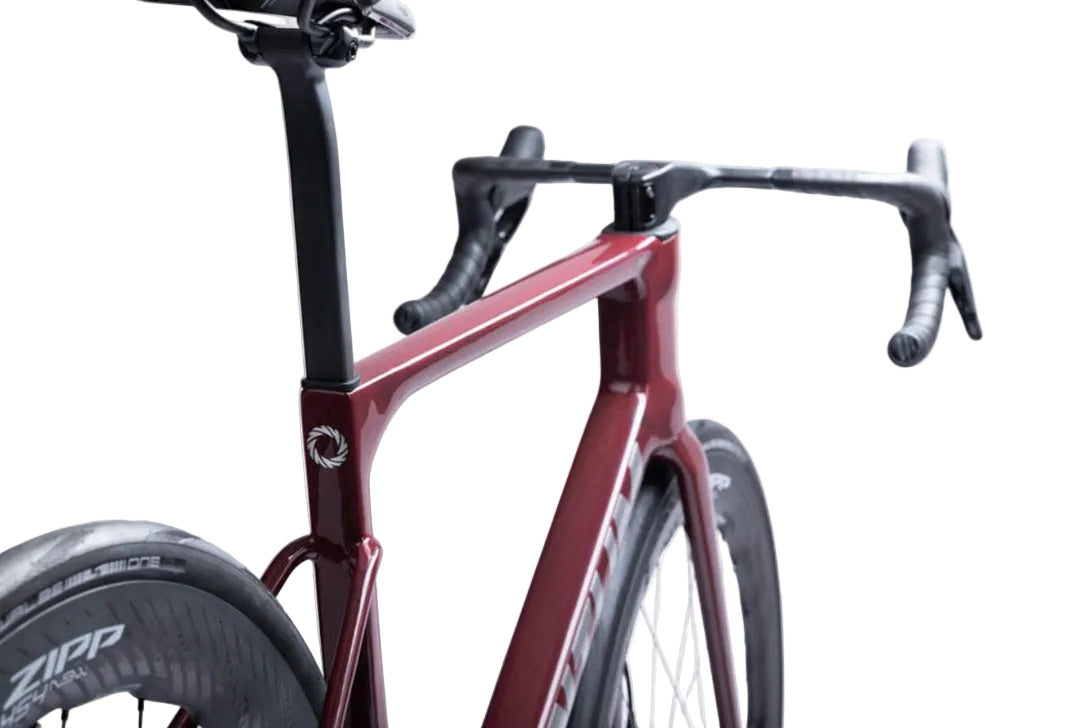

    The leading edge of the NS1 has been extended forward of the steerer, creating space for a cleaner, more efficient airfoil. We’ve also narrowed the waist of the frame by using an hourglass head tube, reducing the frontal area.
    The fork has been redesigned to match. Deeper airfoils on the fork legs extend down from the new head tube, improving airflow management while also increasing stiffness.

  • IMPROVED FIT, SAME SNAPPY HANDLING

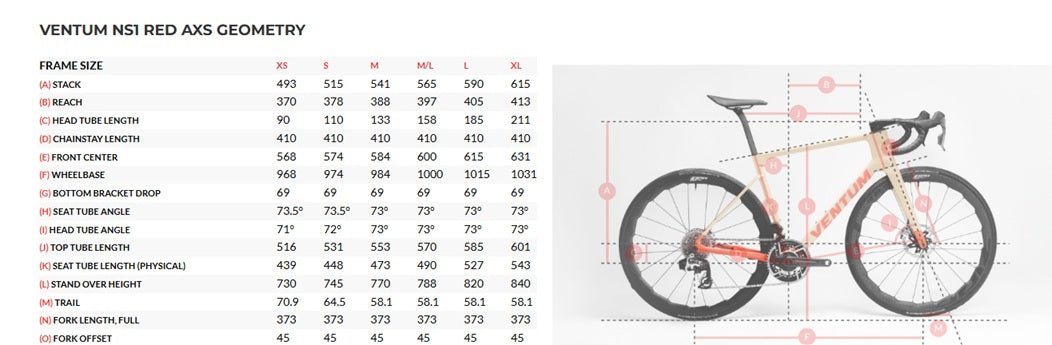

    Speed is easier to find when the position is right. The NS1’s geometry has been updated to help riders hold an aerodynamic position more comfortably for longer.

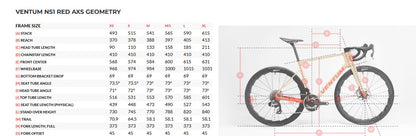

    The stack and reach figures have been increased slightly over its predecessor — particularly on larger sizes. But aside from that change, we’ve protected the NS1’s racy handling.

Specifications

Frameset
Frame

Ventum NS1 road frame

- Full carbon fiber construction

- Internal cable routing

- T47 threaded BB

- Flat mount disc brake

- UDH

Fork

Ventum NS1 fork

- Tapered carbon steerer

- Internal brake routing

- Flat mount disc brake

- Carbon dropouts

Wheels
Front Wheel

ZIPP 353 NSW

- Tubeless

- Disc brake

- Carbon

Rear Wheel

ZIPP 353 NSW

- Tubeless

- Disc brake

- Carbon

- XDR Driver

Tires

Schwalbe One - 700x30c

Max Tire Size

700x35c

Drivetrain and Brakes

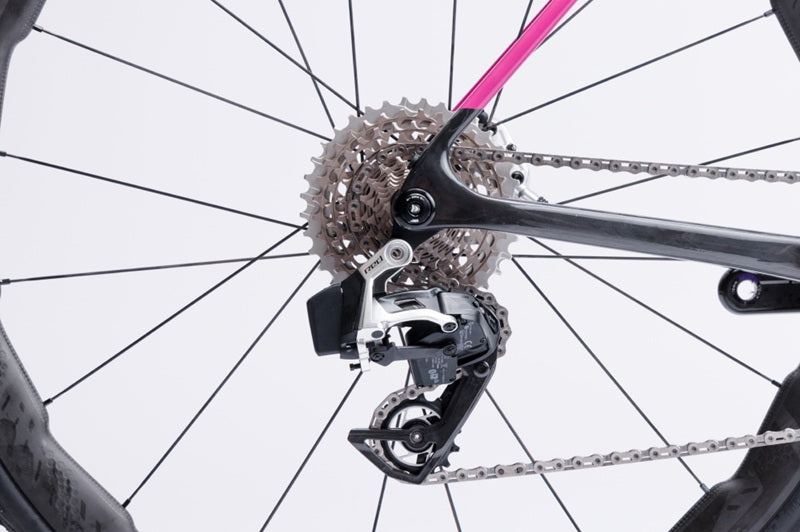

Rear Derailleur

SRAM Red AXS

- 2x12 speed

- Electronic shifting

Front Derailleur

SRAM Red AXS

- 2x12 speed

- Electronic shifting

Shifters

SRAM Red AXS HRD shifters 2x12 speed

- Electronic shifting

- Hydraulic braking

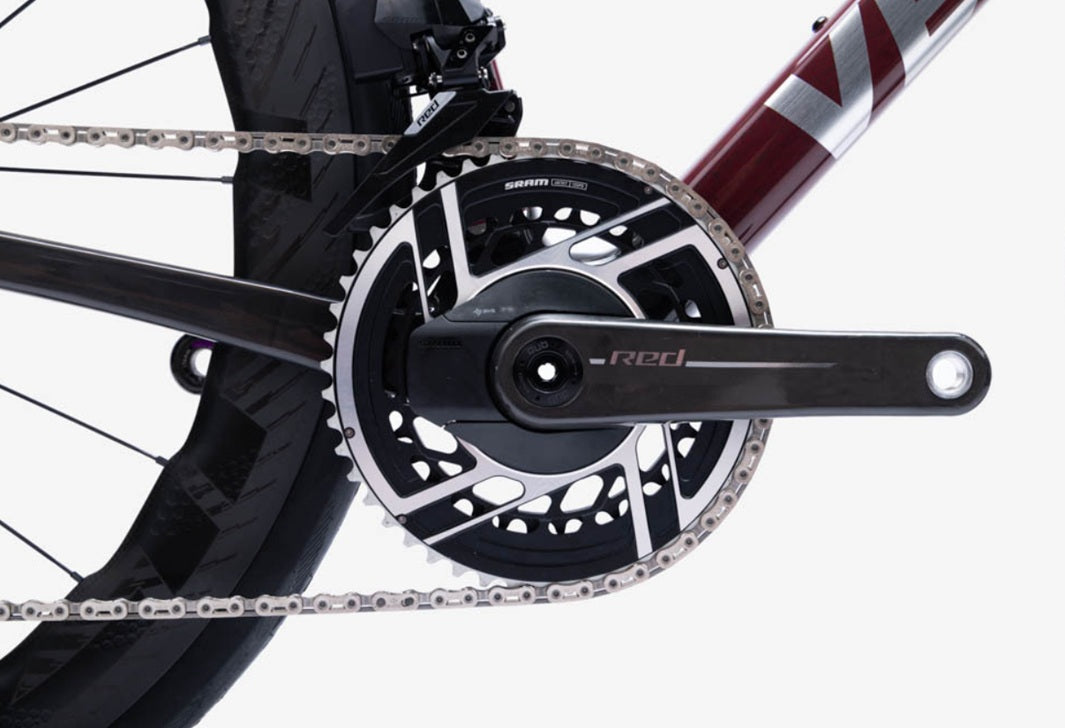

Crankset

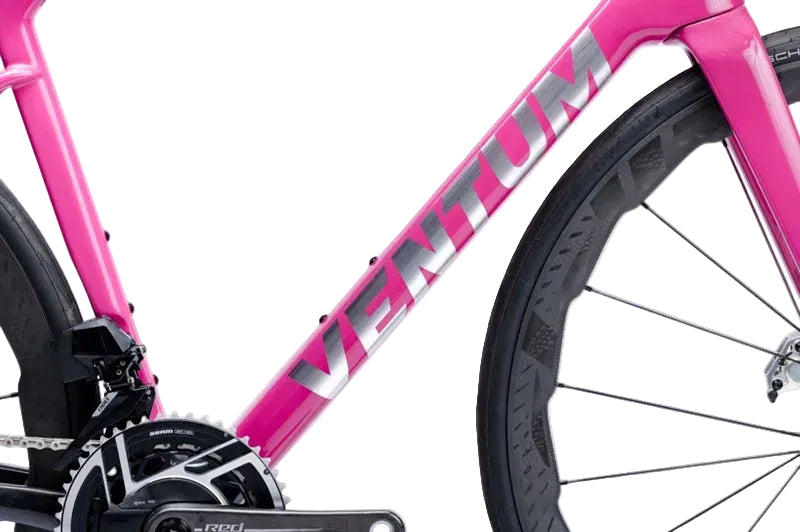

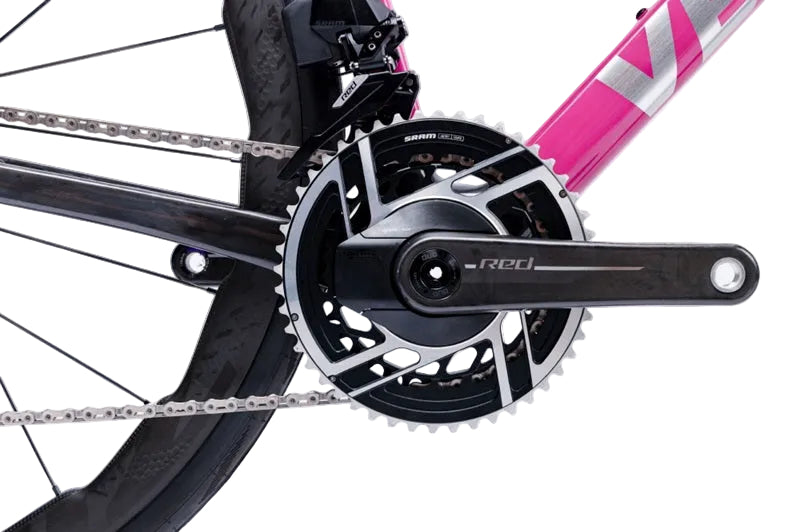

SRAM Red AXS Power Meter Crankset, 48/35T chainrings

- Size: XS - 165mm crank length

- Size: S - 165mm crank length

- Size: M - 170mm crank length

- Size: M/L - 170mm crank length

- Size: L - 172.5mm crank length

- Size: XL - 172.5mm crank length

Bottom Bracket

SRAM DUB T47

Cassette

SRAM Red

- XG 1290

- 10-36T

Chain

SRAM Red E1 12-speed chain

Brakes

SRAM Red AXS hydraulic disc brakes

Brake Rotors

SRAM Centerlock Paceline X, 160mm Front /140mm Rear

Cockpit
Handlebar/Stem

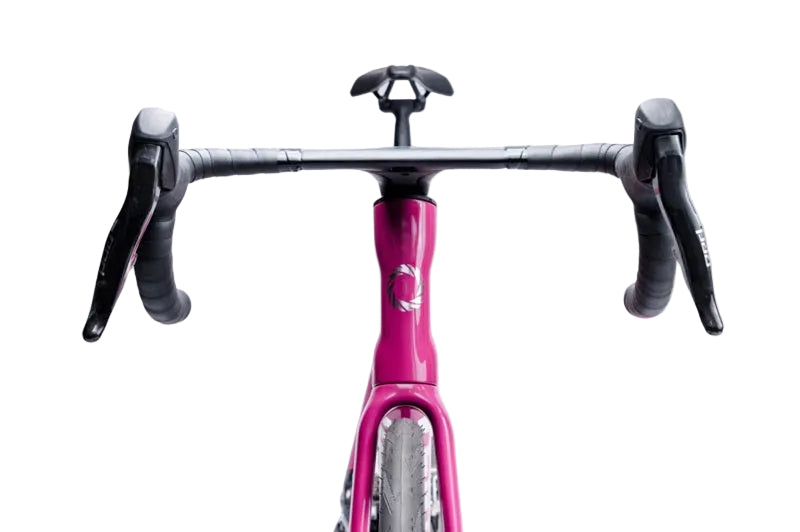

Ventum CR2 one-piece cockpit

- Size: XS - 40cm/90mm

- Size: S - 40cm/90mm

- Size: M - 42cm/90mm

- Size: M/L- 42cm/90mm

- Size: L - 42cm/100mm

- Size: XL - 44cm/100mm

Handlebar Tape

FSA Powertouch, black

**Specifications subject to change without notice
