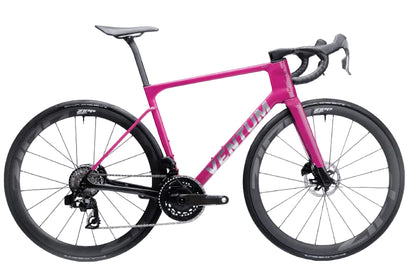

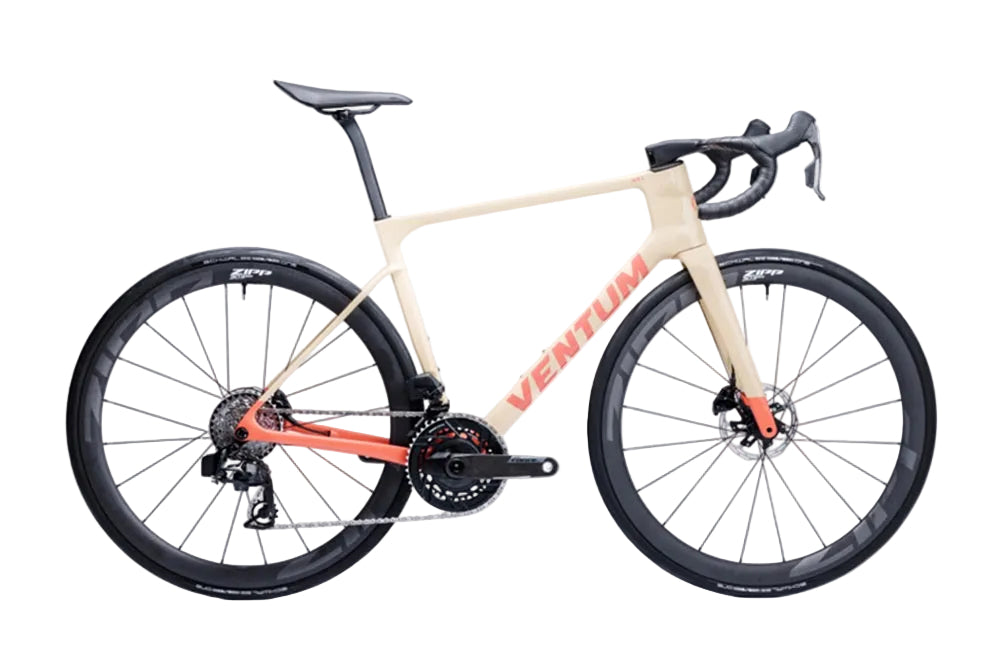

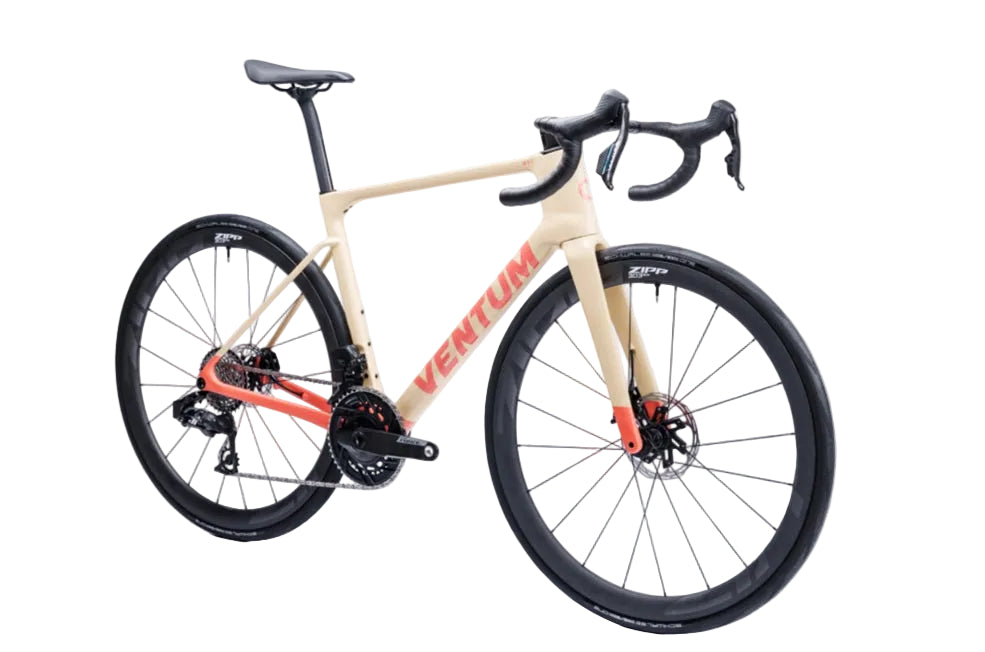

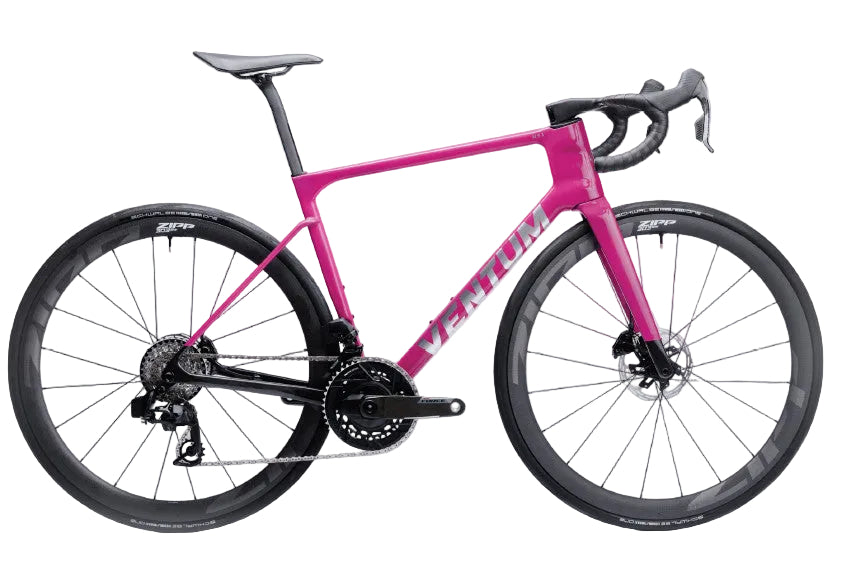

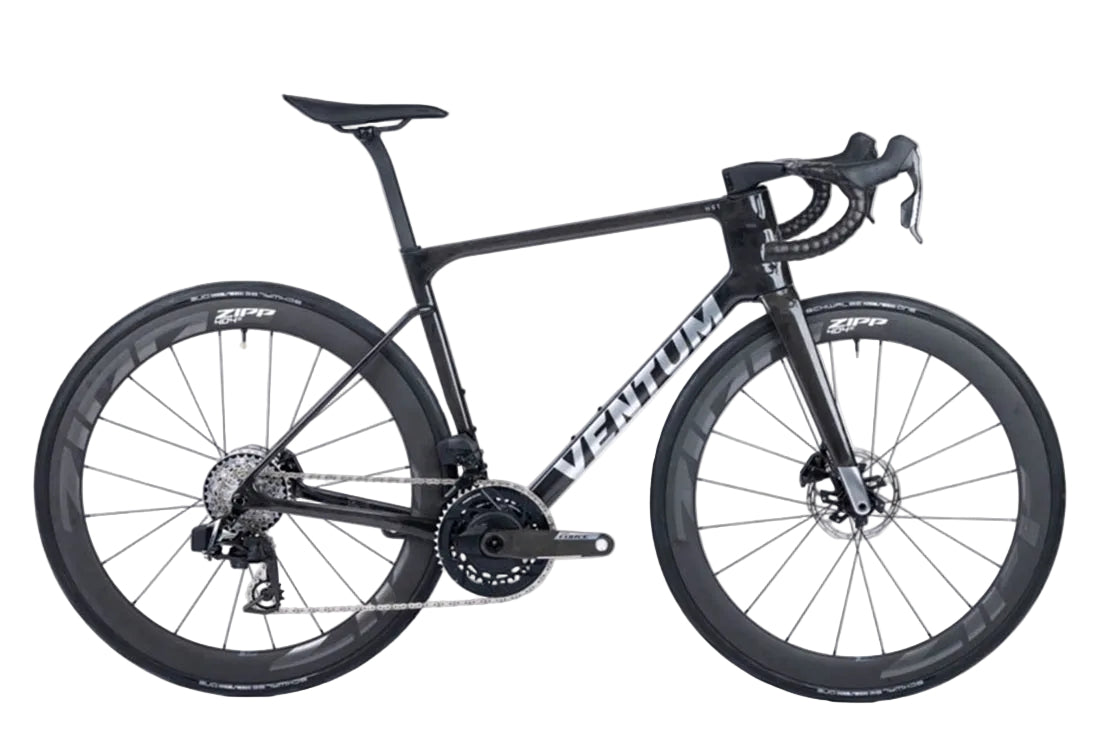

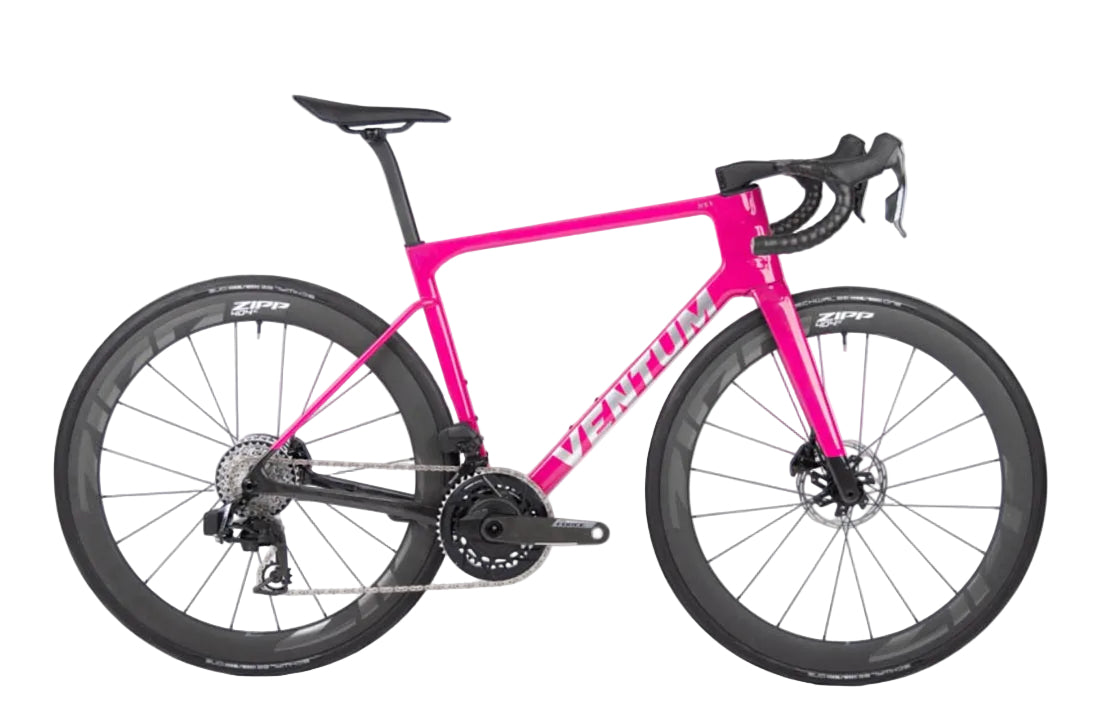

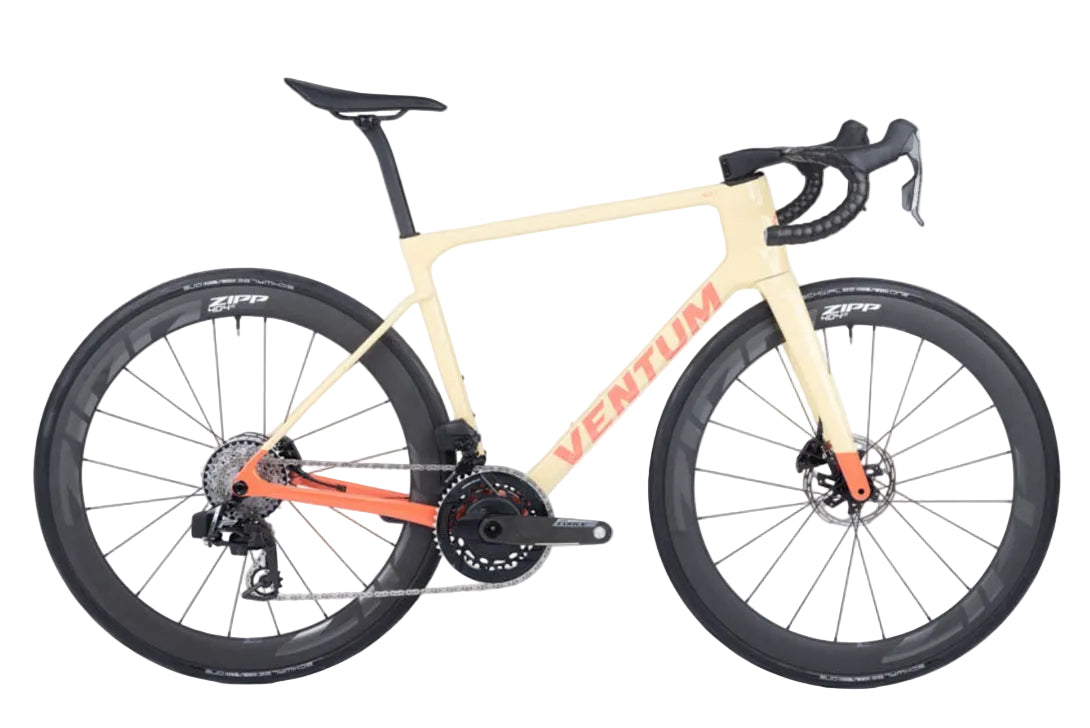

About The Ventum NS1 V3 Carbon SRAM Force AXS Road Bike

The Ventum NS1 V3 is a full carbon, electronically-shifted road bike built as an aero all-rounder — suited to race day, structured training, and long unstructured rides alike. This third-generation frame is more than 200g lighter than its predecessor, weighing just 852g in a M/L, and tests 7.7% stiffer at the head tube and 11.9% stiffer at the bottom bracket. This build pairs SRAM Force AXS electronic shifting and a crank-based power meter with ZIPP 404 S carbon wheels and the Ventum CR2 one-piece carbon cockpit.

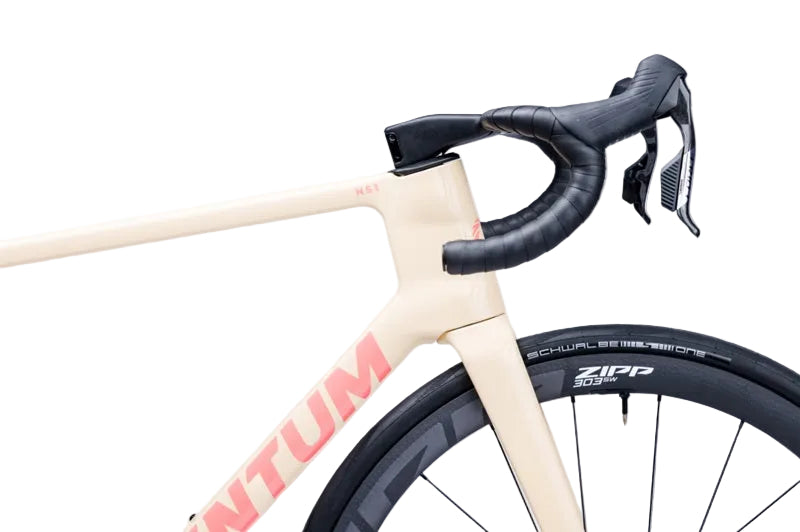

The front end has been reshaped for aerodynamics, drawing on Ventum's Tempus time trial bike: the leading edge extends forward of the steerer for a cleaner airfoil, and an hourglass head tube narrows the frame's waist to cut frontal area, with deeper fork airfoils to match. Geometry keeps the NS1's race-oriented handling nimble in corners and stable at speed, while stack and reach have increased on larger sizes for an aero position that's easier to hold.

Who It's For

      Racers and fast group-ride riders who want one bike for race day, training, and long days, not a fleet of specialists.

      Riders who want electronic shifting and a built-in power meter without a top-tier groupset.

      Riders splitting time between flat tarmac and climbs who want a frame that resists wind without sacrificing climbing manners.

      Riders needing gravel-specific clearance or geometry should look at a different platform.

What to Look For

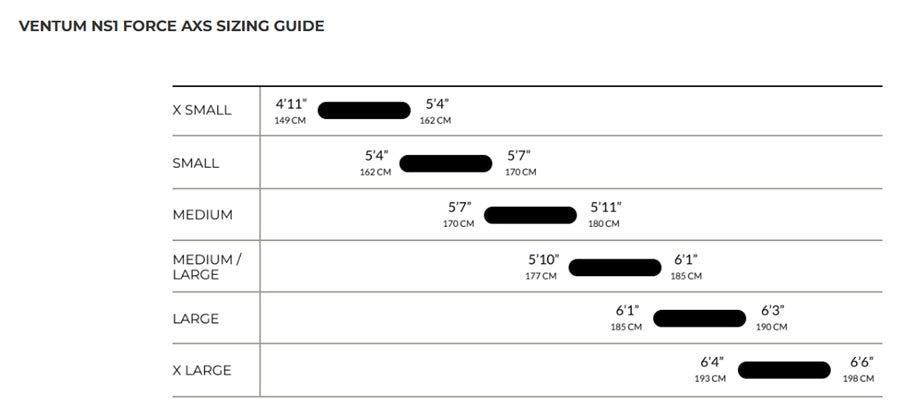

      Confirm fit against the stock size chart: crank length, bar width, and stem length change across XS–XL, and the CR2 one-piece cockpit means bar and stem aren't swapped independently.

      Weigh the gearing: a 48/35T crank paired with a 10-36T cassette favors mixed and climbing terrain over flat-out criterium gearing.

      Factor in tires: stock 700x30c Schwalbe One tires are race-oriented; the frame's true ceiling is 700x35c.

Key Features

Frame and fork: A new layup and higher-modulus carbon cut over 200g versus the previous NS1 without losing stiffness — 7.7% stiffer at the head tube, 11.9% stiffer at the bottom bracket, for a chassis that responds under power and tracks predictably in corners. Internal cable routing, a T47 threaded bottom bracket, flat mount disc brakes, and a UDH derailleur hanger keep the build serviceable and current.

Groupset and shifting: SRAM Force AXS is a 2x12-speed electronic groupset with hydraulic disc braking built into the shifters, so shifts stay wireless and consistent regardless of cable wear. The crankset's built-in power meter gives training riders wattage data with no aftermarket add-on, and the 10-36T cassette adds climbing range.

Braking: SRAM Force AXS hydraulic disc brakes pair with Centerlock Paceline X rotors, 160mm front and 140mm rear, for predictable stopping power under hard braking.

Wheels and tires: ZIPP 404 S wheels are carbon, tubeless, and hookless, with a 45mm rim depth and 23mm internal width built for aerodynamics without excess weight. Stock tires are 700x30c Schwalbe One; the frame accepts up to 700x35c.

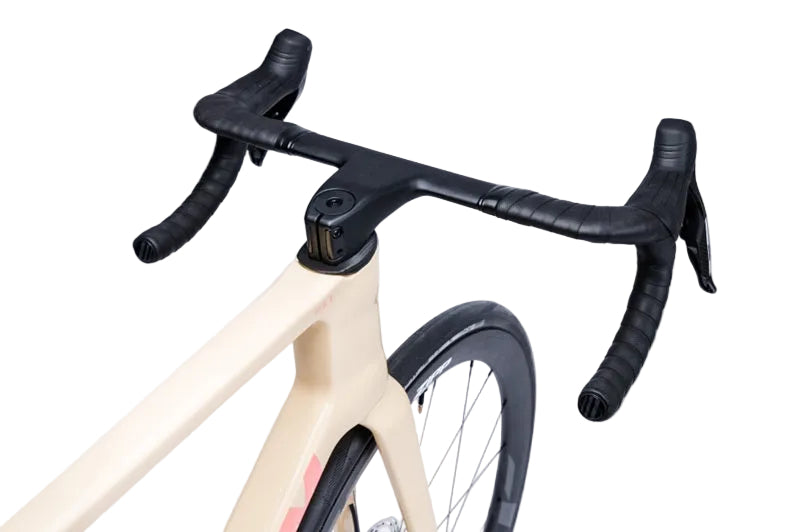

Standout technology: The Ventum CR2 one-piece carbon bar and stem integrates cabling and cleans up the front end, with an integrated computer mount, sold separately.

Rider Intent Summary

      Biggest strengths: A lighter, stiffer frame paired with an aero-focused redesign and a wide-range electronic groupset built around a power meter.

      Tradeoffs: Max tire clearance tops out at 700x35c, so riders planning wider tires for gravel or rough-road comfort should look elsewhere.

      What makes it different: A Tempus-inspired front end and hourglass head tube are aero features layered onto a frame that still climbs and corners like a race bike.

Victory's Take

We see the NS1 V3 as a one-bike answer for riders who race, train, and explore on the same machine — a genuinely lighter frame, real aero shaping, and Force AXS with a power meter, all in one build. At Victory Bicycle Studio, we fit every NS1 to the rider using the size-specific crank, bar, and stem specs before it leaves our shop.

What you get

  • Frame - Ventum NS1 Carbon Road Frame
  • Fork - Ventum NS1 Carbon Fork
  • Wheels - ZIPP 303 SW Carbon Wheelset
  • Groupset - SRAM Force AXS 12 Speed (Electronic)
  • Tires - Schwalbe One - 700x30c
Ventum NS1 V3 Carbon SRAM Force AXS Road Bike

Ventum

Ventum NS1 V3 Carbon SRAM Force AXS Road Bike

Regular price $7,599.00 USD
Sale price $7,599.00 USD Regular price

features

  • A FEATHERWEIGHT FRAME

    Third-generation NS1 frame is more than 200g lighter than its predecessor, weighing in at just 852g in a M/L.

    That reduction comes from new carbon layup, use of higher-mod carbon fiber, and by shaving mass from the front end and seat stays.

    Less weight doesn’t come at expense of ride quality. In testing, new chassis is 7.7% stiffer in head tube & 11.9% stiffer in the bottom bracket. It’s livelier on climbs, more responsive through corners, and stiffer where it matters.

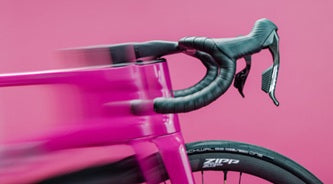

  • MORE AERO

    All new front end, inspired by the Tempus TT bike, cuts through the wind.

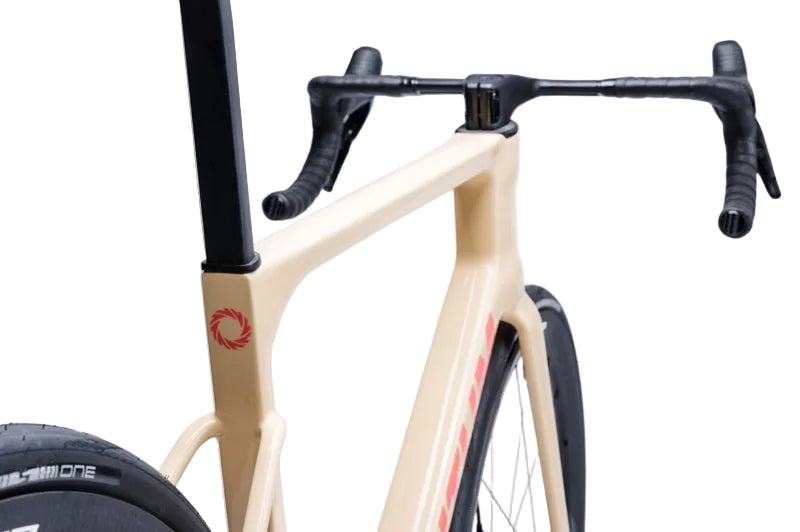

    The leading edge of the NS1 has been extended forward of the steerer, creating space for a cleaner, more efficient airfoil. We’ve also narrowed the waist of the frame by using an hourglass head tube, reducing the frontal area.

    Fork has been redesigned to match. Deeper airfoils on the fork legs extend down from the new head tube, improving airflow management while also increasing stiffness.

  • IMPROVED FIT, SAME SNAPPY HANDLING

    Speed is easier to find when the position is right. The NS1’s geometry has been updated to help riders hold an aerodynamic position more comfortably for longer.

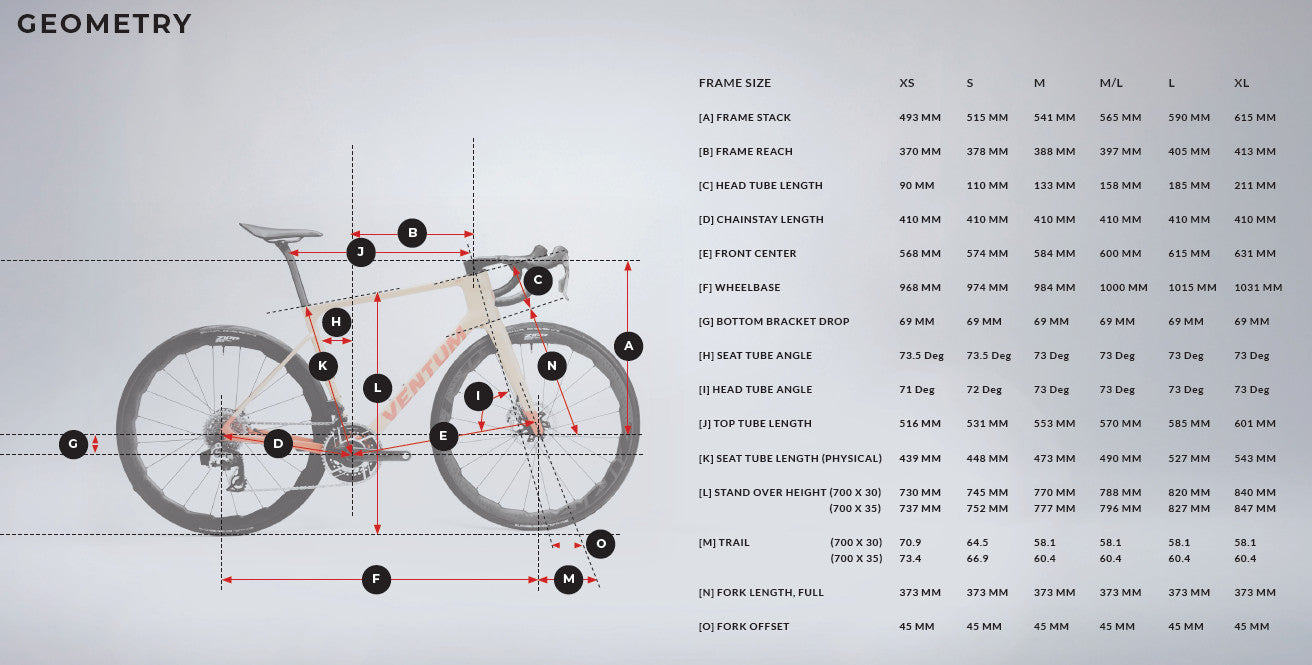

    The stack and reach figures have been increased slightly over its predecessor — particularly on larger sizes. But aside from that change, we’ve protected the NS1’s racy handling.

    Nimble in corners. Stable at speed. Lively everywhere.

Specifications

Frameset
Frame

Ventum NS1 road frame

- Full carbon fiber construction

- Internal cable routing

- T47 threaded BB

- Flat mount disc brake

- UDH

Fork

Ventum NS1 fork

- Tapered carbon steerer

- Internal brake routing

- Flat mount disc brake

- Carbon dropouts

Wheels
Front Wheel

ZIPP 404 S carbon fiber front wheel

- Tubeless disc brake

- 45mm rim depth

- Hookless rims

- 23mm ID

Rear Wheel

ZIPP 404 S carbon fiber rear wheel

- Tubeless disc brake

- 45mm rim depth

- Hookless rims

- 23mm ID

- XDR driver

Tires

Schwalbe One

- Performance RaceGuard

- 700x30c

Max Tire Size

700x35c

Drivetrain and Brakes

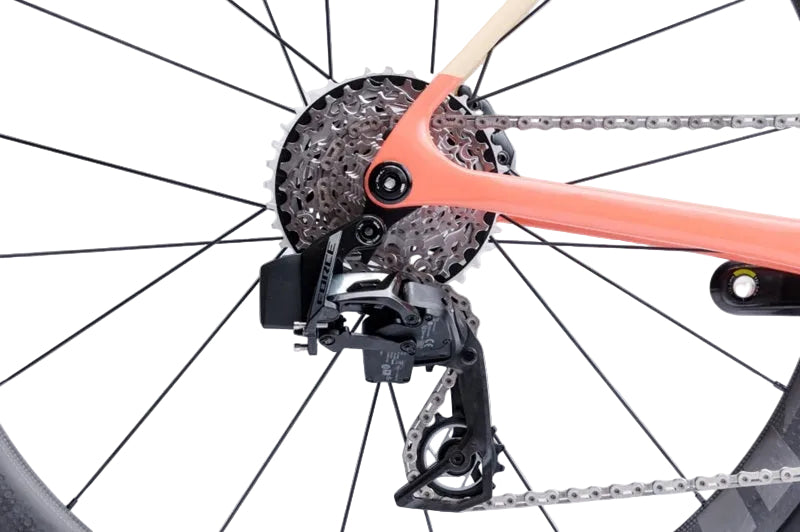

Rear Derailleur

SRAM Force AXS

- 2x12 speed

- Electronic shifting

Front Derailleur

SRAM Force AXS

- 2x12 speed

- Electronic shifting

Crankset

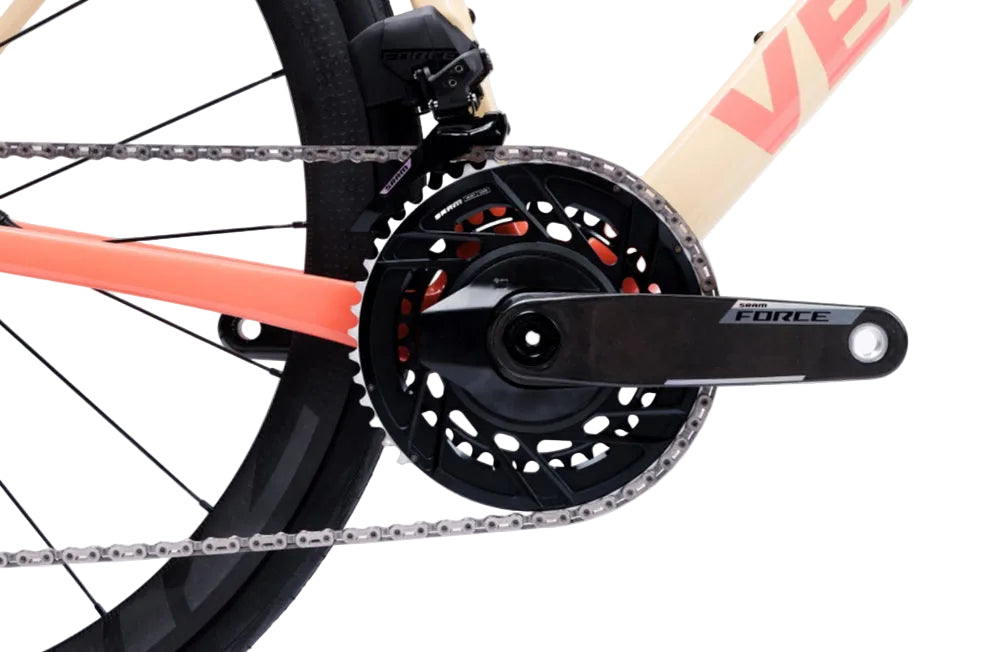

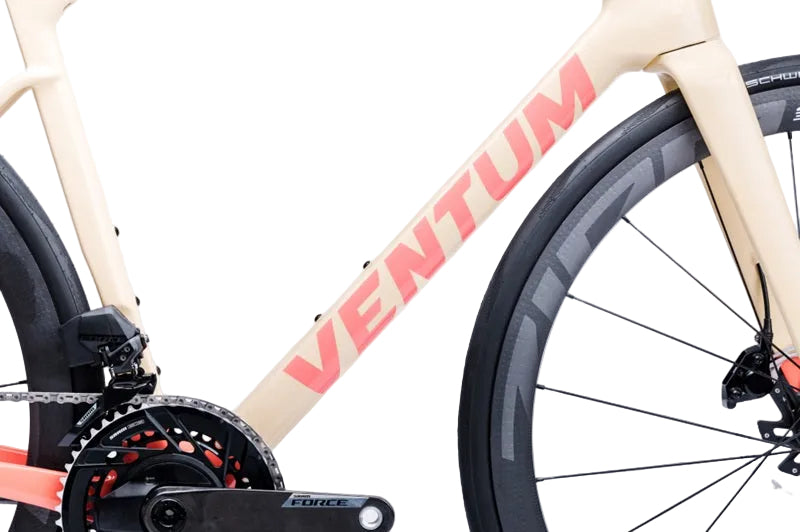

SRAM Force AXS Power Meter Crankset, 48/35T

- Size XS: 165mm

- Size S: 165mm

- Size M: 170mm

- Size M/L: 170mm

- Size L: 172.5mm

- Size XL: 172.5mm

Bottom Bracket

SRAM DUB T47

Cassette

SRAM Force

- XG 1270

- 10-36T

Chain

SRAM Force E1 12-speed chain

Brakes

SRAM Force AXS hydraulic disc brakes

Brake Rotors

SRAM Centerlock Paceline X, 160mm Front /140mm Rear

Cockpit

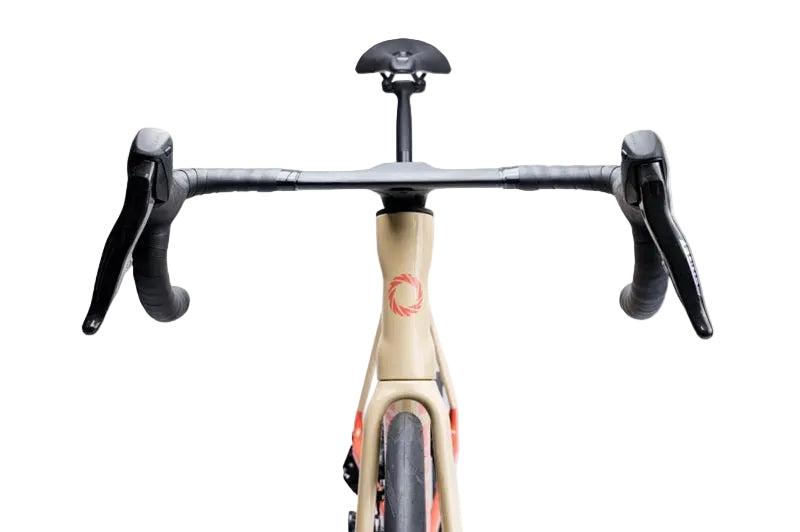

Handlebar/Stem

Ventum CR2 One-Piece Cockpit

- Size XS: 40cm bar, 90mm stem

- Size S: 40cm bar, 90mm stem

- Size M: 42cm bar, 90mm stem

- Size M/L: 42cm bar, 90mm stem

- Size L: 42cm bar, 100mm stem

- Size XL: 44cm bar, 100mm stem

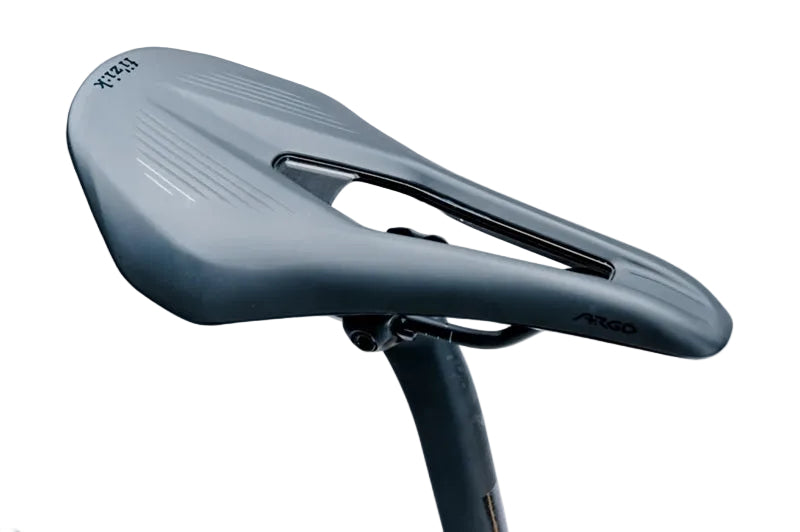

Saddle

Fizik Vento Argo R5, 140mm

Seat Post

Ventum carbon post, 10mm offset

Handlebar Tape

FSA Powertouch, black

**Specifications subject to change without notice
