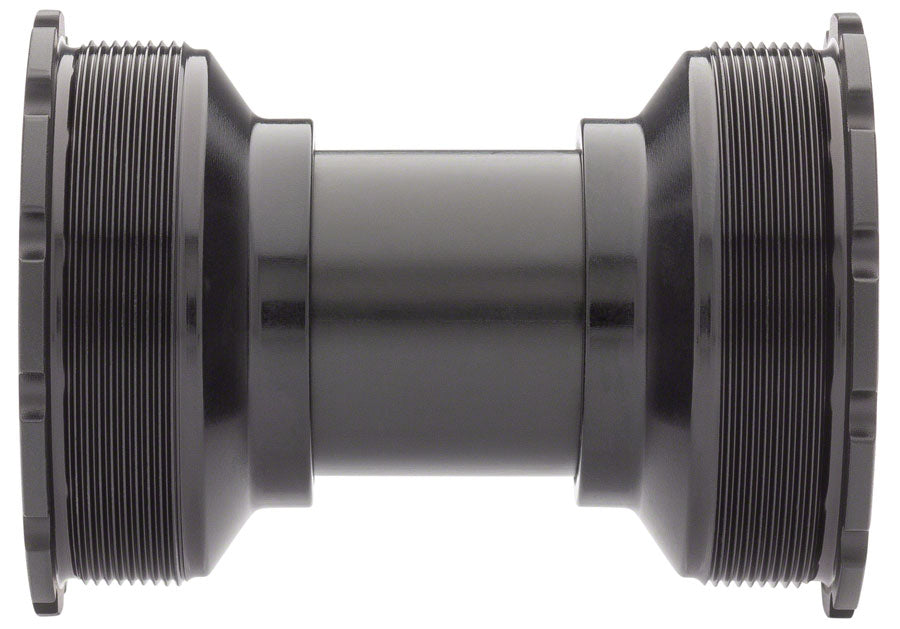

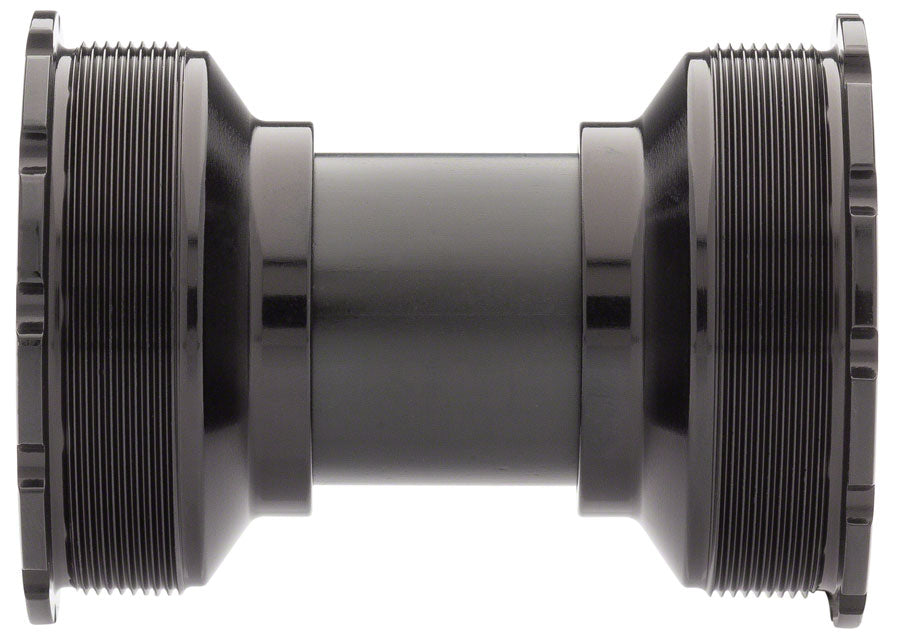

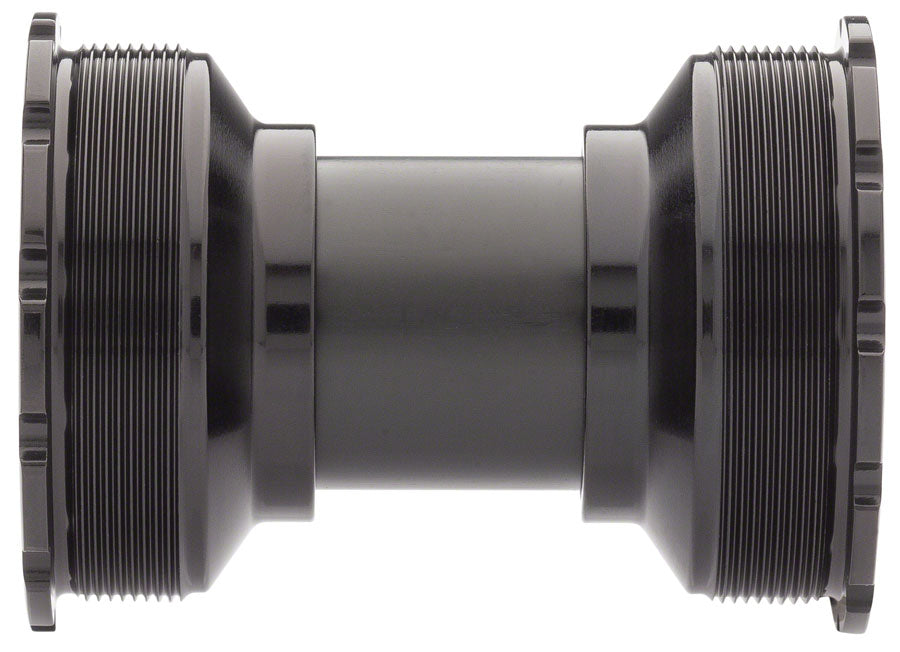

About The Chris King ThreadFit T47 24i Bottom Bracket Fit Kit
The Chris King ThreadFit T47 24i is a threaded T47 bottom bracket for 24mm spindles in 86mm and 92mm shells, offered for Shimano Hollowtech II and SRAM/Truvativ GXP cranks. It is the wide-shell counterpart to the T47 24x, for frames built around the broader T47 shell.
Chris King describes it as pairing threaded security and reliability with the stiffness and power-transfer gains of a PressFit 30 shell. The made-in-house angular-contact bearings are serviced with a grease injection tool, and the 24i is engineered, manufactured and assembled in Portland, Oregon under the King Lifetime Warranty.
Who It's For
- Riders with an 86mm or 92mm T47 shell
- Shimano Hollowtech II crank users (black or matte jet)
- SRAM/Truvativ GXP crank users (black)
- 68mm and 73mm T47 shells need the T47 24x instead
What to Look For
- Shell width decides the model. The 24i fits 86mm and 92mm T47 shells. Confirm your frame's width before ordering.
- Match the crank. Hollowtech II comes in black and matte jet; GXP comes in black.
- Grease injection service. Plan on a grease injection tool if you maintain your own bottom bracket.
Key Features
T47 interface. A 47 shell I.D. threaded bottom bracket sized for wide 86mm and 92mm shells.
Bearings. Angular-contact bearings made in-house by Chris King.
Service. The bearings take fresh grease through a grease injection tool, which keeps the bottom bracket in service instead of on the parts bench.
Origin and warranty. Engineered, manufactured and assembled in Portland, Oregon, with the King Lifetime Warranty.
Rider Intent Summary
- Biggest strengths: threaded T47 fit for wide shells, in-house angular-contact bearings and a lifetime warranty.
- Tradeoffs: 86mm and 92mm shells only, with GXP limited to black.
- What makes it different: a serviceable Chris King bottom bracket for wide T47 shells and 24mm spindles.
Victory's Take
The 24i is what we at Victory Bicycle Studio install when a Shimano or GXP crank goes into a wide T47 frame. Send us your frame model and we will confirm shell width before it ships.
Specifications
- BB/Frame Interface: T47
- Bottom Bracket Shell I.D.: 47
- BB Shell Width (mm): 86, 92
- Spindle Interface Type: Shimano Hollowtech II, SRAM/Truvativ GXP
- Color: Black, Matte Jet
What you get

Chris King ThreadFit T47 24i Bottom Bracket Fit Kit
