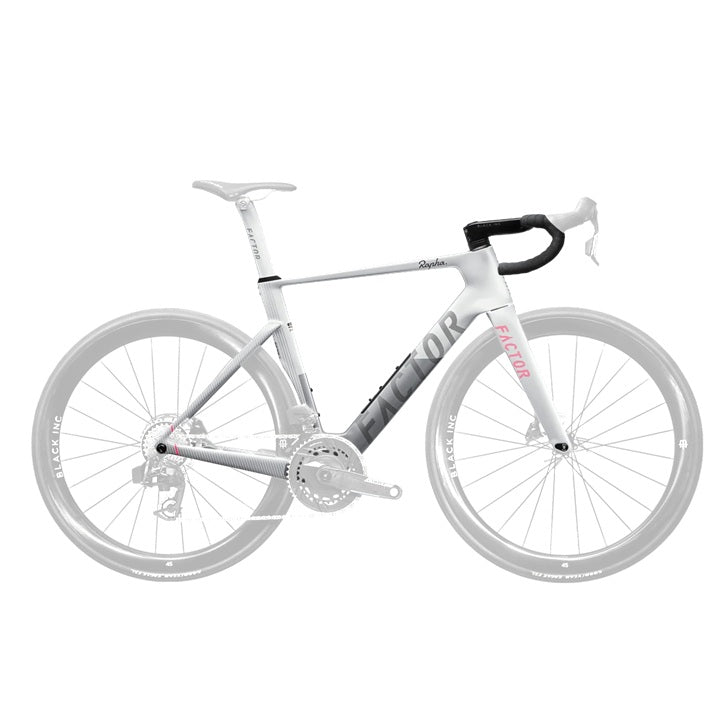

Factor Monza Rapha Edition Carbon Road Bike Frameset

The Factor MONZA Rapha Edition is a carbon road frameset built for committed, ambitious cyclists who ride daily and want race-day performance without giving up comfort over long miles. Factor builds the frame from Toray® / Nippon Graphite® Pan-based carbon, using a higher proportion of lower-modulus, more ductile fibers than a pure race layup typically calls for — a choice that keeps the frame light while damping the high-frequency vibration that causes fatigue late in a ride. The geometry follows the same logic, with a slightly higher stack height that opens the rider's hip angle so an aggressive position stays sustainable for hours.

This is sold as a frameset, not a bare frame and fork — the package includes the Factor MONZA Wide Stance fork, MONZA seatpost, 1.5" headset, Black Inc HB04 integrated barstem, bottom bracket, and axles, so most componentry decisions beyond groupset and wheels are already made. The Rapha Edition graphic applies a modern take on the classic racing stripe to the standard MONZA platform, a collaboration between the two brands layered onto an otherwise unchanged frame.

Who It's For

• Committed, ambitious road cyclists who ride daily and are comfortable managing a custom build — groupset and wheels are sold separately

• Riders who want race geometry with more comfort over rough or long-distance roads, thanks to the higher-ductility layup and endurance-tuned stack height

• Cyclists running or planning an electronic drivetrain, since internal routing is designed around it

• Riders for whom the Rapha collaboration graphic is part of the appeal, not just the platform underneath it

Consider a different bike if you want a complete, ready-to-ride build, or if you need confirmed tire clearance before you buy.

What to Look For

• Bottom bracket standard: choose the FSA BB for SRAM DUB or the FSA 24mm Shimano-compatible BB to match your groupset.

• Tire clearance: Factor's frame spec lists up to 34mm measured tire clearance — confirm actual clearance with your fit specialist before selecting tires.

• Cockpit fit: the Black Inc HB04 barstem's width and length are size/configuration-dependent, and the MONZA seatpost comes in 0mm (standard) or 25mm setback — both should be set during a professional fit.

Key Features

The frame and Wide Stance fork use Factor's ductile carbon blend to take the edge off rough pavement while staying race-weight, paired with a 12x142mm rear thru-axle and 12x100mm front thru-axle for stiffness under power. Internal cable routing is built around electronic drivetrain compatibility, keeping shifting clean without exposed housing. The Black Inc HB04 integrated barstem (75mm reach, 116mm drop) and Black Inc V10 computer/Garmin-style mount finish the front end without sourcing separate parts. A downtube storage compartment with an included pouch gives riders a place for tools or nutrition — a practical touch for a bike meant to be ridden daily. Dual bottom bracket options mean the frameset accepts either major groupset family rather than forcing a choice up front.

Rider Intent Summary

• Biggest strengths: a vibration-damping carbon layup and endurance-tuned geometry aimed at comfort over distance, plus a cockpit, storage, and BB package that removes several build decisions.
• Tradeoffs: it's a frameset, so groupset and wheels are on you
• What makes it different: the Rapha Edition racing-stripe graphic and a fiber blend chosen for damping and comfort rather than maximum stiffness at a given weight.

Victory's Take

We like the MONZA Rapha Edition at Victory Bicycle Studio for riders who already know they want a frameset build and want our team to spec the groupset, wheels, and fit around it — we'll confirm BB compatibility and actual tire clearance with your chosen setup before your build begins.
