About The Felt NEXAR FRD Carbon Dura-Ace Di2 12 Speed Disc Road Bike

The Felt NEXAR FRD Dura-Ace Di2 is Felt's flagship aero road bike — a fully integrated platform targeting competitive cyclists who want aerodynamic efficiency without surrendering fit range or long-ride comfort. The FRD carbon frame uses T800, T1000, and T1100 high-modulus fibers in an optimized ply layup, with reduced material thickness in high-stress zones, arriving at an 800-gram frame weight and a complete bike weight of 6.48 kg.

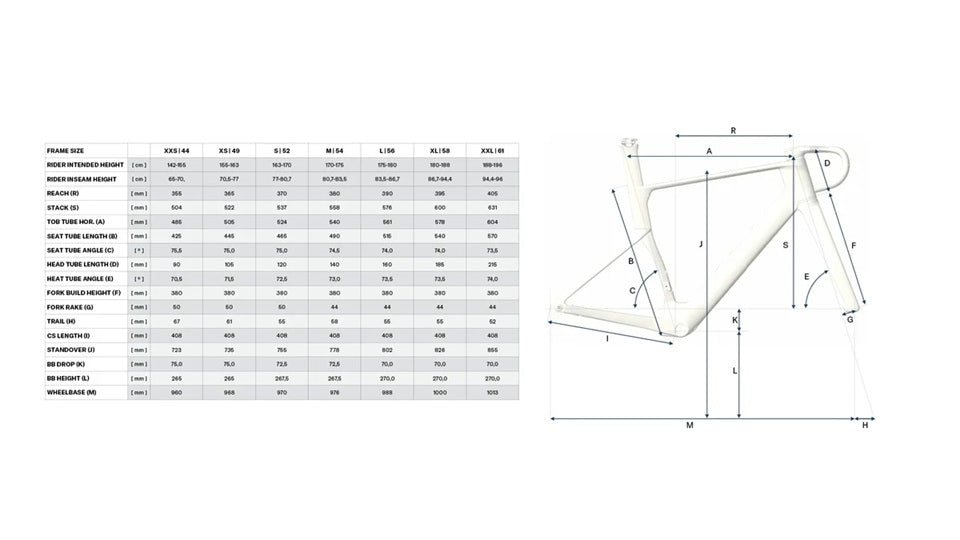

The geometry is the meaningful update here.  Felt increased stack height, shortened reach slightly, and steepened the seat tube angle -- changes developed in consultation with professional bike fitters.  The intent is a position riders can sustain over actual road distances, not one optimized for a single wind tunnel pass.  Lowered seat stays, rear-triangle carbon tuning, and tire clearance to 32mm extend that logic to ride quality: this is an aero bike designed to be ridden hard for hours, not just raced over flat courses.


Who It's For

  • Competitive road cyclists targeting crits, fondos, or fast group rides who want aero performance they can hold for 4–6 hours
  • Riders who've found traditional aggressive aero geometry uncomfortable or unsustainable at their fit
  • Racers who want a complete, race-ready build — Dura-Ace Di2, dual-sided power meter, and carbon wheels included out of the box
  • Athletes training with power who want accurate bilateral data without adding an aftermarket meter

Consider a different bike if your primary goal is low weight for pure climbing, or if you're not regularly riding at speeds where aerodynamics meaningfully affect performance.

What to Look For

  • Cockpit sizing is a one-time decision. The fully integrated 1-piece carbon cockpit cannot be swapped for a different stem length after purchase. Get a professional bike fit before finalizing your size — bar width and stem length must be confirmed at order.
  • Gearing for your terrain. The 52/36T crankset with 11-30 cassette suits flat to moderately hilly riding. If you're regularly on grades above 10%, discuss cassette options before committing.
  • Wheel depth vs. your conditions. The Vision Metron 45 RS is a versatile all-arounder, but confirm 45mm suits your typical crosswind exposure and terrain before purchase.

Key Features

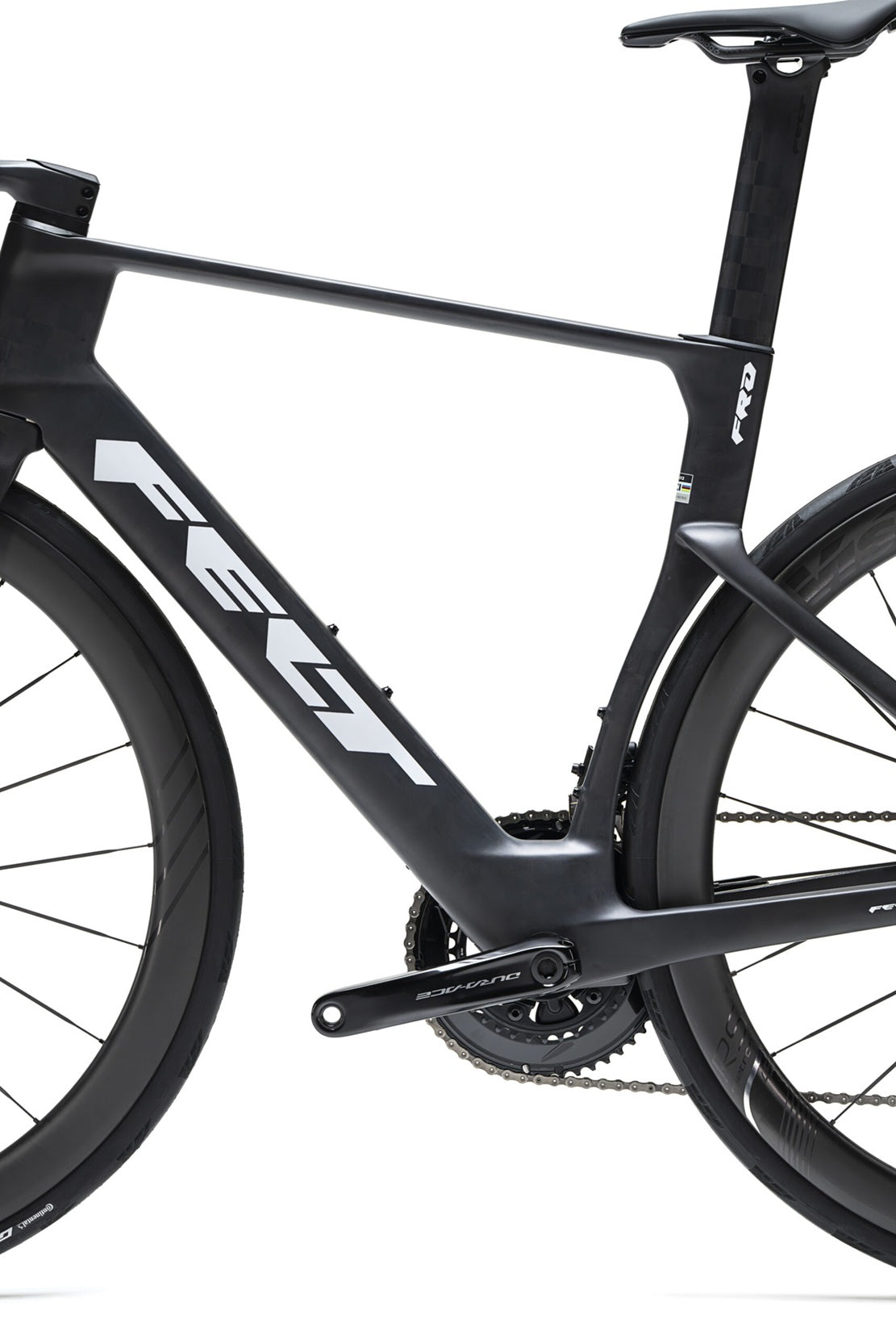

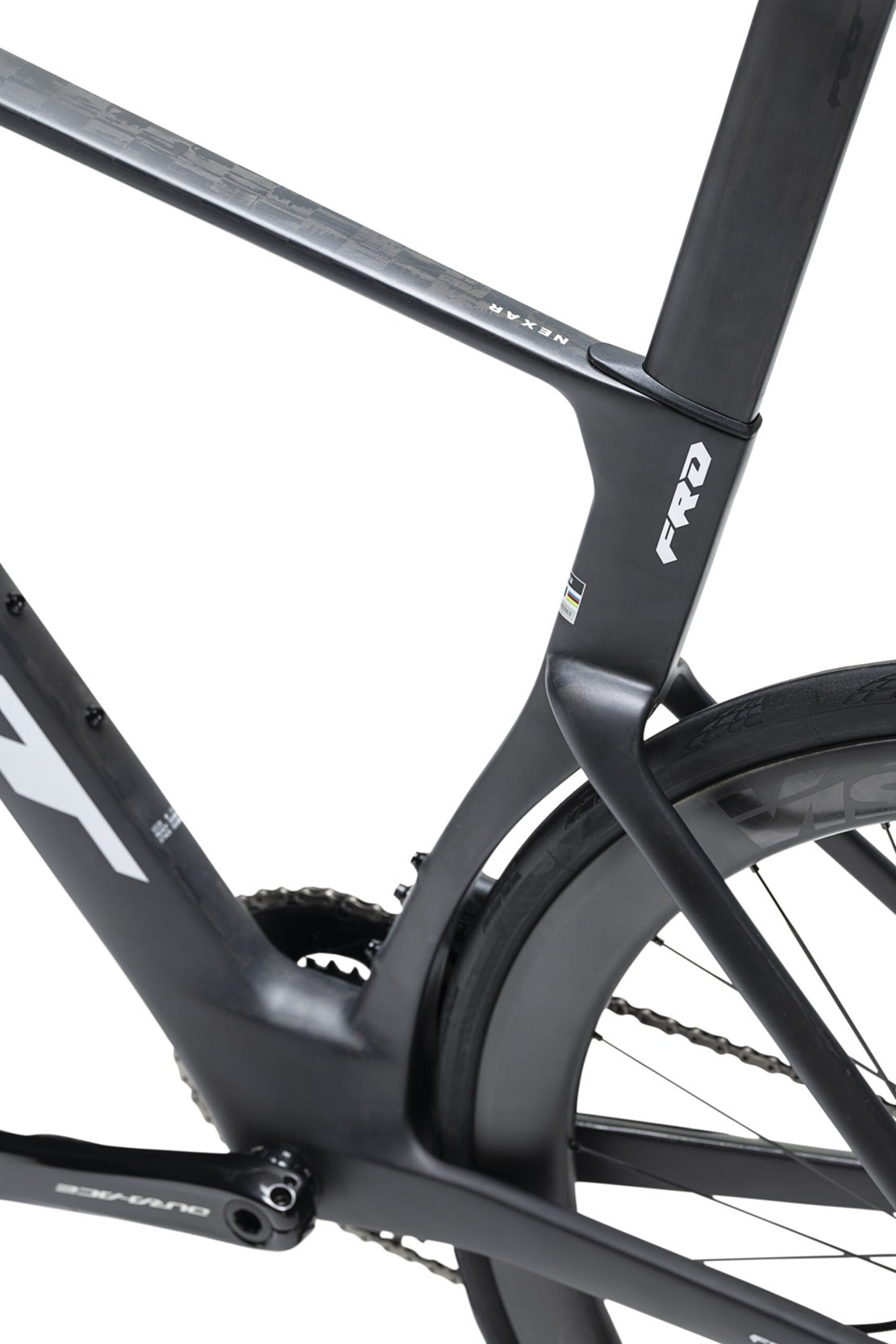

FRD Carbon Frame The FRD layup uses T800, T1000, and T1100 carbon — Felt's premium fiber blend — optimized for maximum stiffness-to-weight. Felt reports this construction is approximately 300 grams lighter than their standard NEXAR layup, which is the difference between a sub-6.5 kg complete bike and a mid-7 kg one. The frame also accepts tires up to 32mm, which adds meaningful compliance on rough roads without changing the aero profile.

Shimano Dura-Ace R9200 Di2 The FD-R9250 and RD-R9250 Di2 derailleurs represent Shimano's current flagship electronic drivetrain — fast, consistent, and WorldTour-proven. Paired with a 52/36T Dura-Ace crankset and 12-speed 11-30 cassette, the gearing range covers most road racing and endurance applications.

4iiii Dual-Sided Power Meter Included at this build level. The 4iiii dual-sided meter reads left and right independently, providing accurate total power and left/right balance data for training and racing.

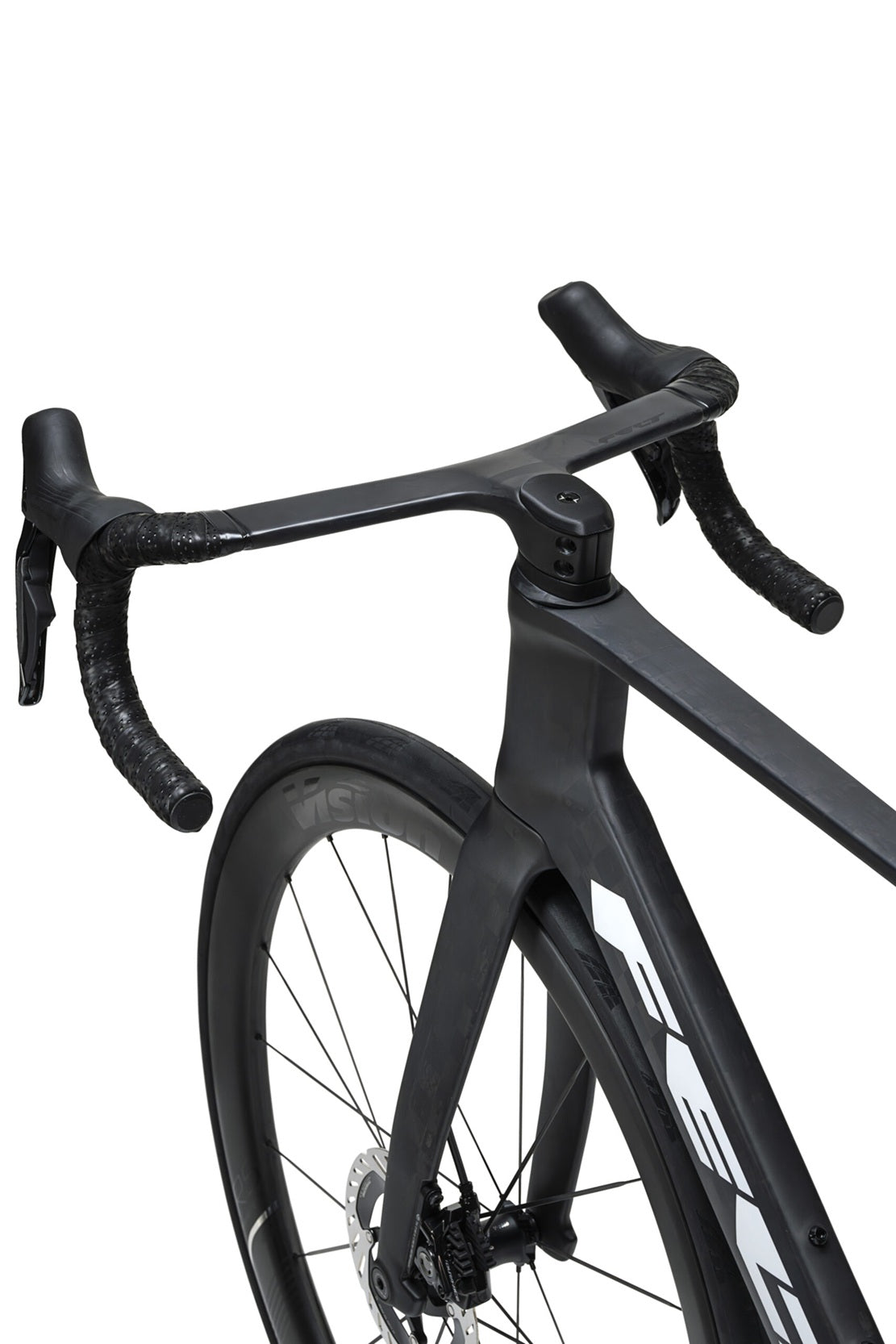

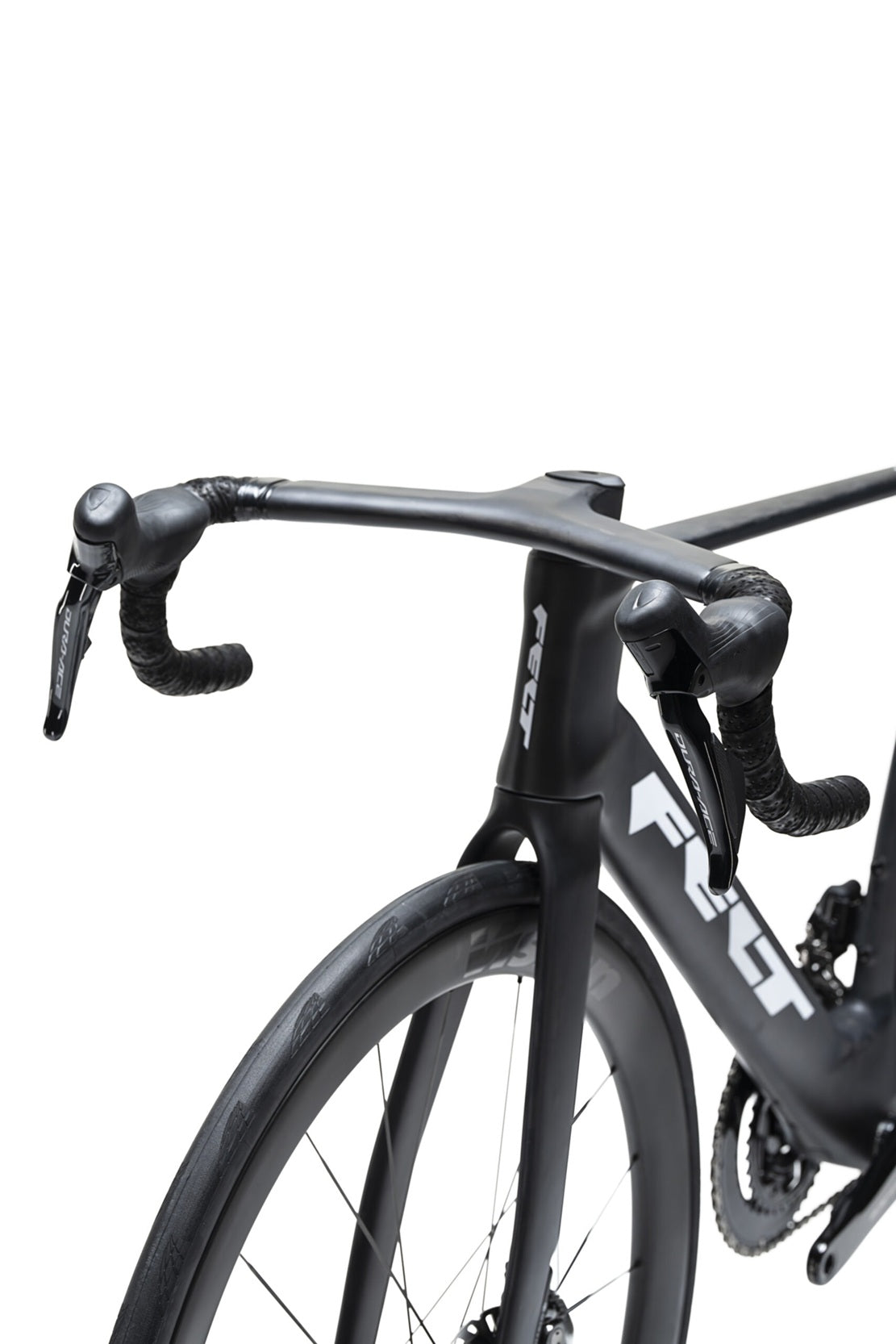

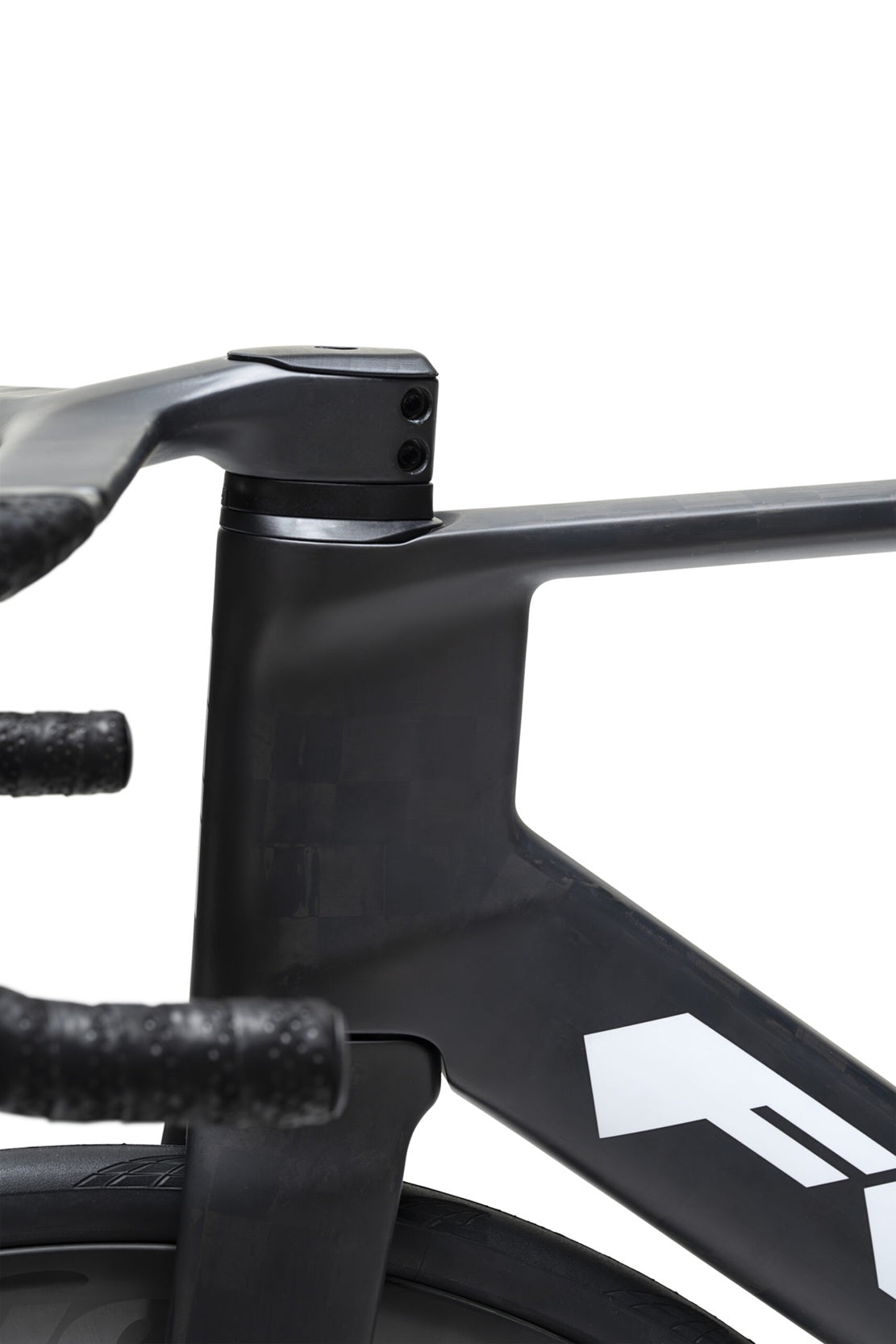

Integrated Carbon Cockpit The FELT 1-piece cockpit routes all cables internally, reducing frontal drag at the bar. Felt claims a weight under 300 grams. Multiple bar widths and stem lengths are available — sizing must be confirmed before purchase.

Vision Metron 45 RS Wheelset A 45mm carbon rim depth with Continental Grand Prix 5000 S TR 28mm tires. This combination provides aerodynamic efficiency, reasonable crosswind stability, and low rolling resistance without the handling compromise of deeper-section wheels.

Rider Intent Summary

  • Biggest strengths: Aero efficiency in a fit-forward, rider-sustainable package; complete race build with power meter and Dura-Ace Di2 included; sub-6.5 kg complete weight
  • Tradeoffs: Fully integrated cockpit limits post-purchase adjustability; not the lightest option for riders prioritizing climbing; premium price reflects flagship component spec
  • What makes it different: Geometry revised specifically for rider sustainability — higher stack, steeper seat tube, shorter reach — distinguishing it from more aggressive aero platforms where maintaining position over distance becomes the limiting factor

Victory's Take

We recommend the NEXAR FRD to riders who are serious about speed but done compromising on fit and comfort. At Victory Bicycle Studio, we pair every NEXAR purchase with a professional bike fit to confirm cockpit sizing before the order goes in — that step is what makes this bike perform the way it was designed to.

What you get

  • Frame - Nexar FRD 12K Carbon Light
  • Fork - Nexar FRD 12K Carbon Light
  • Groupset - Dura Ace Di2 12 Speed Electronic
  • Power Meter - 4iiii Non-Drive Side Power Meter
  • Wheelset - Vision Metron 45 RS Carbon
  • Tires - Continental Grand Prix 5000 S TR, 700x28

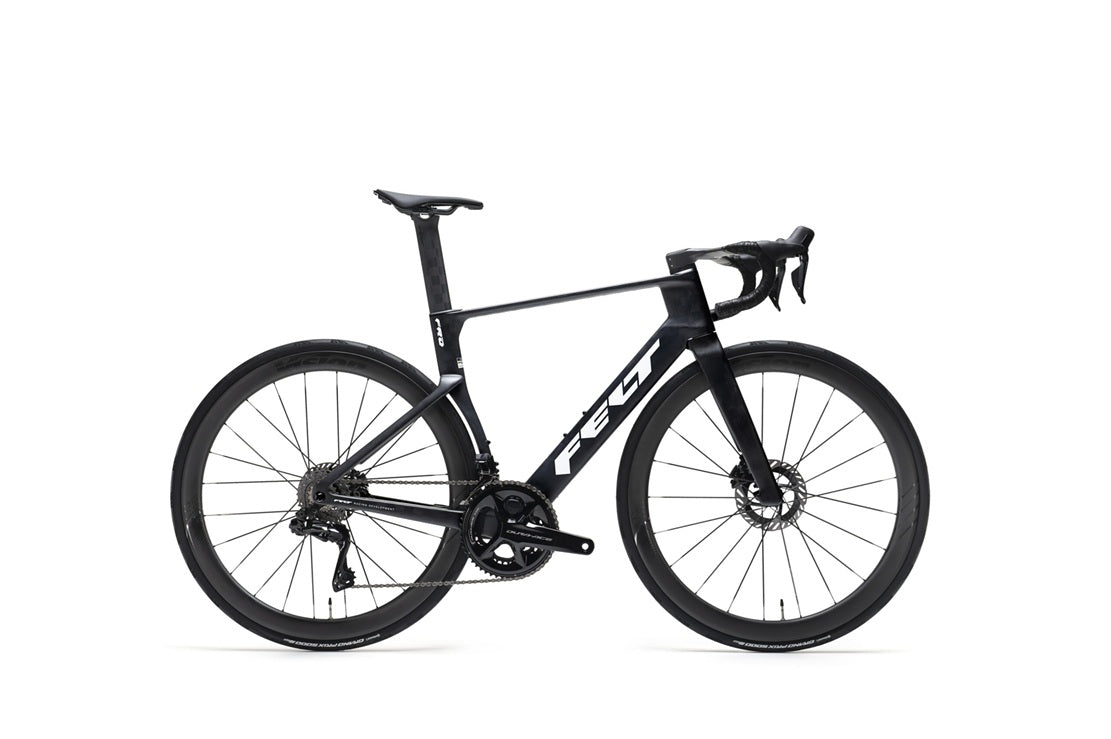

felt nexar frd carbon dura ace di2 12 speed road bike right side view

Felt

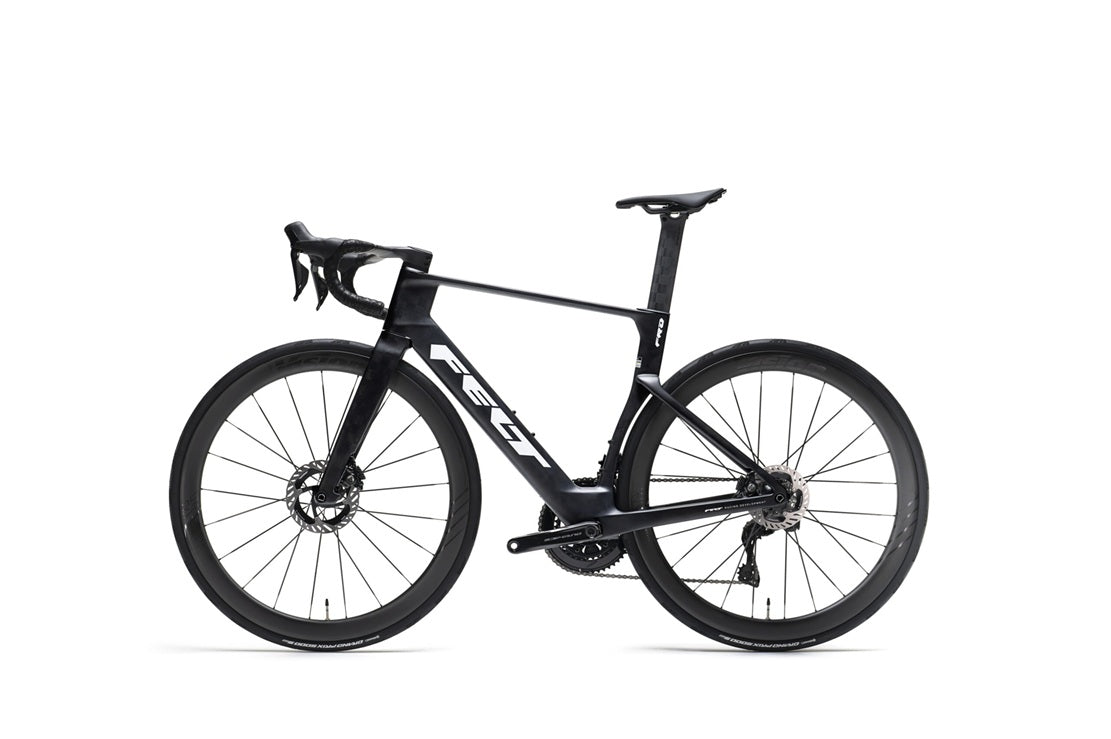

Felt NEXAR FRD Carbon Dura-Ace Di2 12 Speed Disc Road Bike

Regular price $12,599.00 USD
Sale price $12,599.00 USD Regular price $12,599.00 USD

Specifications

Frameset
Frame

Nexar FRD 12K Carbon Light Frame

Fork

Nexar FRD 12K Carbon Light Fork

Drivetrain and Brakes
Front Brake

SHIMANO DURA-ACE, BR-R9270, 2-PISTON, HYDRAULIC DISC BRAKE

Front Brake Rotor

SHIMANO RT-MT900, CENTER LOCK, 160 MM

Rear Brake Rotor

SHIMANO RT-MT900, CENTER LOCK, 140 MM

Rear Derailleur

SHIMANO DURA-ACE DI2 RD-R9250, 2X12-SPEED

Front Derailleur

SHIMANO DURA-ACE DI2, FDR250

Cassette

SHIMANO DURA-ACE CS-R9200, 11-30T

Shift Lever

SHIMANO DURA-ACE Di2, ST-R9270

Chain

SHIMANO CNM9100 - HG 12 SPEED

Crankset

SHIMANO DURA-ACE, FC-R9200, 52/36T

Bottom Bracket

SHIMANO, BBR60

Powermeter

4IIII NON-DRIVE SIDE PM

Wheels
Wheelset

VISION METRON 45 RS CARBON

Tires

CONTINENTAL GRAND PRIX 5000 S TR, 700x28c

Cockpit
Cockpit

FELT ROAD 1 PIECE INTEGRATED COCKPIT

- 45 / 48 : 360/400x90 Carbon

- 51 / 54 / 56 : 380/420x100 Carbon

- 58 / 61 : 400/440x110 Carbon

Saddle

Prologo Dimension NDR T4.0

Seatpost

45 / 48 / 51: FELT NEXAR DEDICATED SP, 250 MM CARBON

- 54/ 56 / 58 / 61: FELT NEXAR DEDICATED SP, 330 MM CARBON

Additional Information
Bike Weight(Size Medium)

6.48kg/14.28lb

Permissible Total Weight

120kg/264lbs

**Specifications subject to change without notice
