About The Trek Boone Disc Frameset

The Trek Boone Disc Frameset is Trek's top cyclocross race frame, built from 600 Series OCLV Carbon for an ultralight, compliant platform that's been developed with input from elite 'cross racers. Rear IsoSpeed decouples the seat tube from the top tube, taking the edge off rough course surfaces and barriers without sacrificing pedaling stiffness. The result is a frame that can go hard for an entire race without destroying your body in the process.

The Boone's cross-specific geometry — 72.3° head angle, 102.8mm wheelbase, and short 42.5mm chainstays — makes it quick and responsive on tight circuits and easy to shoulder during run-ups. Both front and rear run 12mm thru axles with flat mount disc brakes. A seat mast cap system (sold separately in two lengths and two offsets) handles seatpost fit. The full carbon Trek Cross fork is included.

Who It's For

  • Cyclocross racers who want a dedicated carbon race frame built for podium performances
  • Riders who prioritize light weight, shoulderability, and compliance on rough, varied-surface courses
  • Builders putting together a high-end 'cross-specific build with quality components
  • Not ideal for: gravel touring, endurance road riding, or riders who don't need cyclocross-specific geometry

What to Look For

  • Seat mast cap: No standard seatpost — uses a Trek seat mast cap system sold separately in two lengths and two offsets; confirm your sizing before building
  • Tire clearance: Designed for cyclocross; confirm clearance for your intended tire width before building
  • Brake standard: Flat mount disc, front and rear thru axle (12x100mm front, 12mm rear)
  • Fork: Trek Cross full carbon fork included — tapered carbon steerer, flat mount disc, 12x100mm thru axle

Key Features

Frame — 600 Series OCLV Carbon: A dedicated race layup that balances stiffness, light weight, and compliance for cyclocross-specific demands. Cross-specific tube shapes improve shoulderability for run-ups.

Fork — Trek Cross Full Carbon: Included. Tapered carbon steerer, flat mount disc, 12x100mm thru axle. Designed specifically for the compliance and handling demands of cyclocross racing.

Compatibility — Rear IsoSpeed / Flat Mount Disc: The rear IsoSpeed decoupler adds vertical compliance without affecting lateral stiffness. Flat mount disc brakes front and rear. 12mm thru axles at both ends for precise wheel alignment and confident handling.

Routing & Mounts: Clean cable routing for a raceable setup. The Boone is optimized for race builds — minimal mounts, maximum performance focus.

Rider Intent Summary

  • Biggest strengths: Ultralight carbon construction, rear IsoSpeed compliance, cross-specific geometry for shouldering and tight handling, includes fork
  • Tradeoffs: Seat mast cap system limits seatpost options; not suited for gravel or road use; proprietary fit elements require planning
  • What makes it different: Rear IsoSpeed on a cyclocross frame is a genuine differentiator — it's not just compliance for comfort, it's compliance for sustained race-pace performance over rough terrain

Victory's Take

At Victory Bicycle Studio, the Boone Disc Frameset stands out as one of the few cyclocross frames where the compliance technology genuinely serves race performance rather than just comfort — if you're serious about 'cross and want a purpose-built carbon platform, this is worth a close look.

What you get

  • Frame - 600 Series OCLV Carbon, IsoSpeed, cyclocross
  • Fork - Trek Cross full carbon included
  • BB - Flat mount disc
  • Tires - Cyclocross tire clearance
  • Axle - 12mm thru axles front and rear

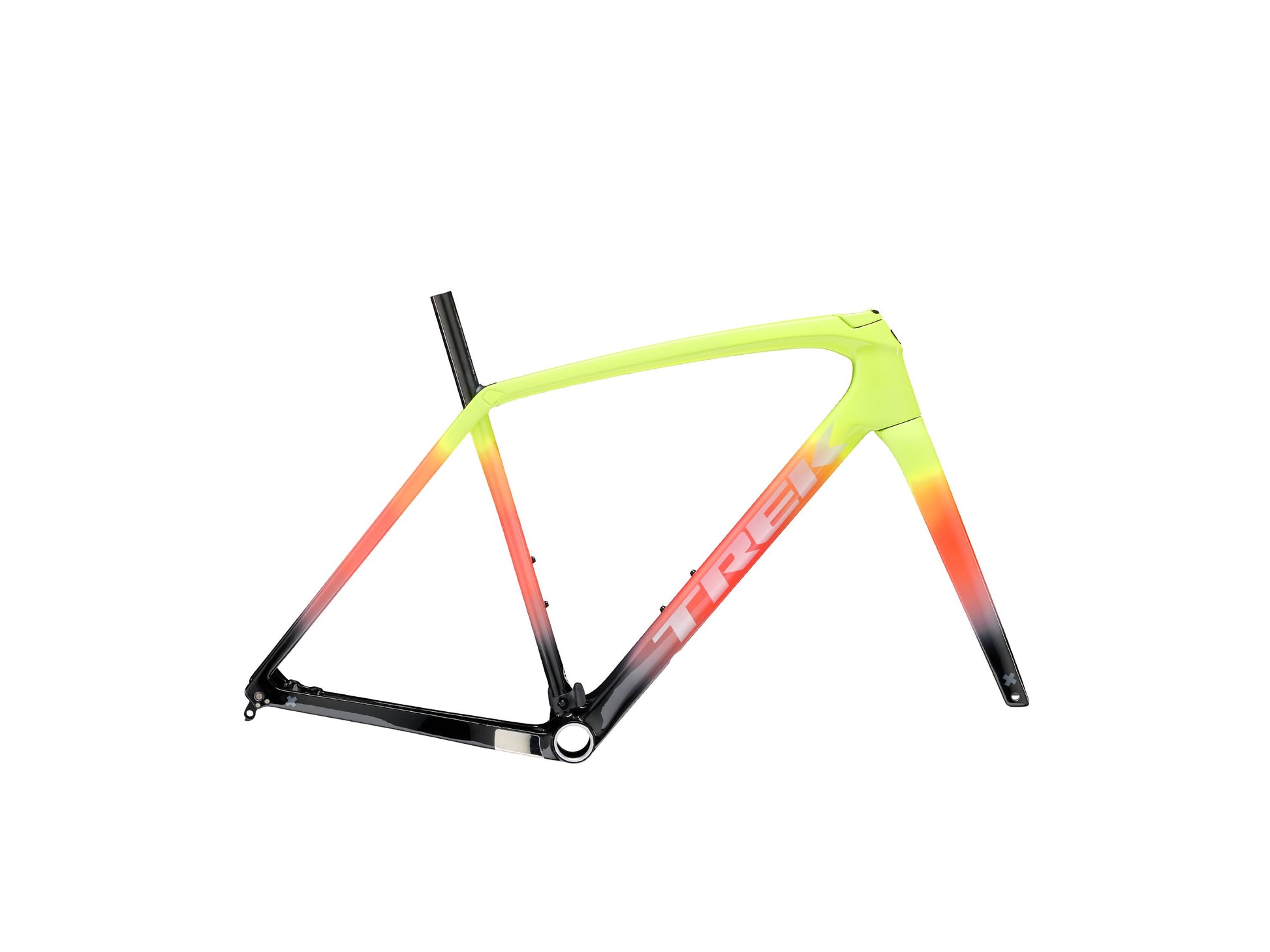

Boone Disc F/S 58 Glowstick to Living Coral Fade

Trek

Trek Boone Disc Frameset

Regular price $1,319.93 USD
Sale price $1,319.93 USD Regular price $2,999.99 USD

Specifications

Frameset
Frame

600 Series OCLV Carbon, IsoSpeed, tapered head tube, internal cable routing, Ride Tuned seatmast, 3S chain keeper, T47 bottom bracket, flat mount disc, 142x12mm thru axle

Fork

Trek Cross, full carbon, tapered carbon steerer, flat mount disc, 12x100mm thru axle

Weight

Size 56 - 1.50 kg / 3.31 lbs (frame and fork, excluding hardware)

Wheels
Skewer Front

Bontrager Switch thru axle

Skewer Rear

Bontrager Switch thru axle, removable lever

Max Tire Size

38mm

Additional Information
Max Rotor Size

160mm front & rear
