About The Trek Domane RSL Gen 4 Frameset

The Trek Domane RSL Gen 4 Frameset is Trek's Race Shop Limited endurance road platform — an ultralight 800 Series OCLV Carbon frame used by professional road racers on the most punishing cobblestone courses in the world. The RSL designation signals the top of the Domane lineup: refined rear IsoSpeed, H1.5 geometry for a more aggressive race position, Kammtail tube shapes for aerodynamic advantage, and a longer wheelbase that tracks precisely on rough, high-speed roads.

The RSL's rear IsoSpeed compliance allows pros to go flat-out over Paris-Roubaix cobblestones without destroying their legs — on your builds, it translates to arriving at the finish feeling significantly better than riders on less compliant frames. Tire clearance up to 38mm keeps you comfortable on light gravel or rough chip-seal. The frame comes with the Domane SLR carbon fork with internal brake routing, fender mounts, and carbon dropouts.

Who It's For

  • Serious road riders and competitive racers who want the most capable endurance race frame Trek makes
  • Riders who prioritize compliance and comfort on rough roads without sacrificing speed or aerodynamics
  • Builders putting together a high-end road race build with premium components
  • Not ideal for: pure weight-weenie climbing builds, casual riders, or riders who don't need race-level performance

What to Look For

  • IsoSpeed: Rear compliance is built into the frame — this affects seatpost selection and fit; plan accordingly
  • Fork: Domane SLR carbon fork included with internal brake routing, fender mounts, flat mount disc, carbon dropouts, 12x100mm thru axle
  • BB standard: Flat mount disc; 142x12mm thru axle rear; internal cable routing throughout
  • Geometry: H1.5 puts you in a more aggressive position than standard Domane — confirm fit before building

Key Features

Frame — 800 Series OCLV Carbon with Rear IsoSpeed: Trek's highest-grade carbon in the Domane family. Kammtail aero tube shapes for speed. The IsoSpeed decoupler provides vertical compliance that directly reduces rider fatigue over rough, sustained efforts. 3S chain keeper, flat mount disc, hidden seatpost clamp.

Fork — Domane SLR Carbon: Included. Tapered carbon steerer, internal brake routing, fender mounts, flat mount disc, carbon dropouts, 12x100mm thru axle. Matched weight and compliance to the RSL frame.

Compatibility — Flat Mount Disc / 142x12mm: Internal cable routing, 3S chain keeper, flat mount disc brakes front and rear, 142x12mm thru axle rear. Standard modern road compatibility for wheels, drivetrains, and components.

Routing & Mounts: Internal cable routing throughout. Hidden seatpost clamp. Fender mounts on fork. Internal downtube storage with top tube bag mounts for all-day essentials.

Rider Intent Summary

  • Biggest strengths: Ultralight 800 Series carbon, rear IsoSpeed compliance, Kammtail aero shaping, H1.5 race geometry, Domane SLR fork included
  • Tradeoffs: H1.5 geometry demands a fit that accommodates the aggressive position; IsoSpeed rear end affects seatpost compatibility; premium pricing reflects RSL specification
  • What makes it different: The RSL specification is what the pros race on — the same frame and compliance technology used at Paris-Roubaix, available for custom builds

Victory's Take

At Victory Bicycle Studio, the Domane RSL Gen 4 is the answer when a rider wants the best endurance road frame available and won't compromise — the IsoSpeed compliance and 800 Series carbon layup make this the most capable rough-road race platform in Trek's lineup.

What you get

  • Frame - 800 Series OCLV Carbon, IsoSpeed, H1.5 race
  • Fork - Domane SLR carbon included
  • BB - Flat mount disc
  • Tires - 38mm max tire clearance
  • Axle - 142x12mm thru axle

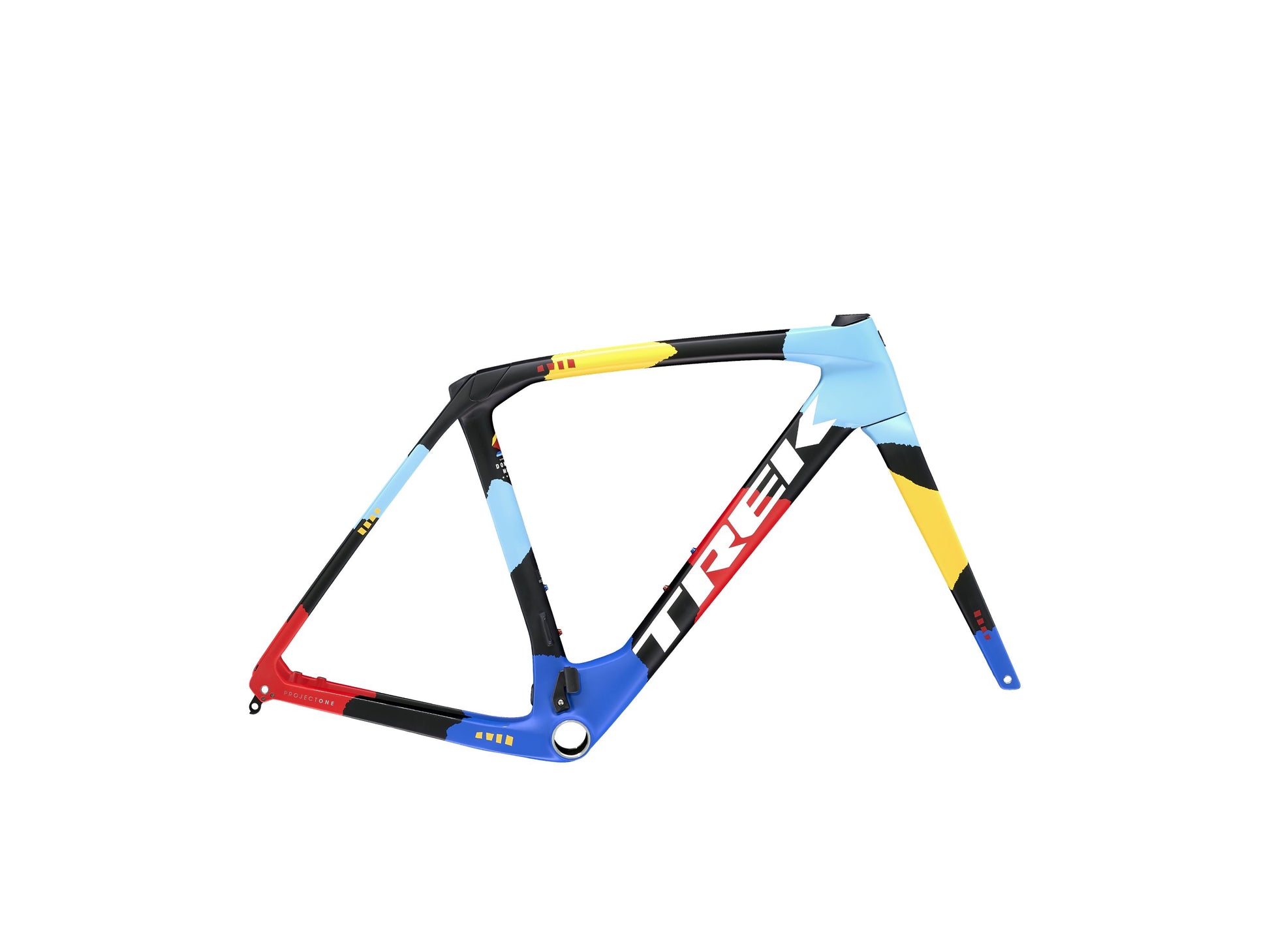

Domane RSL Disc F/S 56 Trek Black

Trek

Trek Domane RSL Gen 4 Frameset

Regular price $4,599.99 USD
Sale price $4,599.99 USD Regular price $4,599.99 USD

Specifications

Frameset
Frame

800 Series OCLV Carbon, IsoSpeed, tapered head tube, internal cable routing, 3S chain keeper, flat mount disc, 142x12mm thru axle

Fork

Domane SLR carbon, tapered carbon steerer, internal brake routing, fender mounts, flat mount disc, carbon dropouts, 12x100mm thru axle

Wheels
Front Thru Axle

Bontrager Switch thru axle, 12x100mm

Rear Thru Axle

Bontrager Switch thru axle, removable lever, 12x142mm

Max Tire Size

35mm

Drivetrain and Brakes
Max Chainring Size

1x: 54T, 2x: 54/40

Max Brake Rotor Size

160mm front & rear, flat mount

Cockpit
Handlebar Clamp

31.8mm

Additional Information
Weight

1057g - 56cm frame (painted), 401g fork (painted)

Weight Limit

275 lbs (125 kg)
