About The Trek FX Sport SL 4 Carbon Shimano CUES Hybrid Bike

The Trek FX Sport SL 4 is the entry point into Trek's carbon flat-bar performance lineup. Built on a 400 Series OCLV Carbon frame and carbon fork, it targets riders who want road bike weight and responsiveness with the comfort and control of a flat handlebar. A 1x Shimano CUES U6000 10-speed drivetrain with a LINKGLIDE 11-48 cassette simplifies shifting without sacrificing range — one lever, one chainring, a wide cassette that handles climbs and fast flats with durability built for daily use.

Shimano hydraulic disc brakes (MT201 lever, UR300 caliper) with 160mm Shimano RT10 centerlock rotors provide predictable, low-effort stopping. Bontrager GR1 Expert Hard-Case Lite 700x40c tires on tubeless-ready Bontrager Paradigm rims (21mm internal width) balance flat resistance with comfortable rolling. DuoTrap S compatibility, 3-stop chain keeper, fender mounts, rack mounts, and top tube bag mounts make this a genuinely capable multi-use carbon bike. Bontrager City pedals included.

Who It's For

  • Cyclists who want a carbon fitness or commuter bike with 1x drivetrain and hydraulic disc

  • Riders who cover varied terrain — pavement and light gravel — and want a flat-bar platform for both

  • Road cyclists switching to flat bars for comfort or ergonomics without giving up performance

  • Step up to SL 5: if SRAM Apex 1x mechanical with 11-speed tighter gear steps is preferred over Shimano CUES 10-speed

What to Look For

  • 1x vs. 2x: Single chainring eliminates front shifting — simpler and lighter, but with wider gear steps; appropriate for mixed terrain, less ideal for very hilly routes

  • LINKGLIDE cassette: The 11-48 LINKGLIDE cassette delivers extended component life under variable real-world shifting

  • Fender and rack mounts: Present on the FX Sport SL 4; not all carbon flat-bar bikes offer this level of daily-use infrastructure

Key Features

Frame & Fork — 400 Series OCLV Carbon: Internal routing, 3-stop chain keeper, DuoTrap S compatible, fender mounts, flat mount disc, 135x5mm ThruSkew. Carbon fork with hidden fender mounts and 100x5mm ThruSkew.

Drivetrain — Shimano CUES U6000 10-speed 1x LINKGLIDE: U6000 shifter with optical gear display, U6000 GS rear derailleur. ProWheel 42T narrow-wide chainring at 170mm. CUES LG300 11-48 LINKGLIDE cassette. KMC X Glide chain.

Brakes — Shimano hydraulic disc: MT201 levers, UR300 calipers, 160mm Shimano RT10 centerlock rotors. Hydraulic disc with progressive modulation in all conditions.

Wheels & Tires — Bontrager Paradigm tubeless-ready: 32-hole, 21mm internal width, Presta valve. Bontrager GR1 Expert Hard-Case Lite 700x40c at 60 tpi — flat-resistant, comfortable on pavement and packed gravel.

Rider Intent Summary

  • Biggest strengths: 400 Series OCLV Carbon at entry SL price; Shimano hydraulic disc; 1x LINKGLIDE durability; fender and rack mounts; tubeless-ready wheels; pedals included

  • Tradeoffs: 1x has wider gear steps than 2x; CUES is durable but not a performance groupset; 135x5mm ThruSkew limits wheel upgrade paths

  • What makes it different: The most practically equipped carbon flat-bar bike in the FX Sport line — fender mounts, rack mounts, LINKGLIDE durability, and hydraulic disc under $2,000

Victory's Take

At Victory Bicycle Studio, the FX Sport SL 4 is the carbon fitness bike we recommend when a rider wants low maintenance, mixed-terrain capability, and flat-bar comfort in a carbon package. The LINKGLIDE drivetrain is a practical feature that matters more over time than it sounds on a spec sheet.

What you get

  • Frame - 400 series OCLV Carbon
  • Fork - Carbon, hidden fender mounts, flat mount disc, 100x5mm thru-skew
  • Component Groupset - Shimano Cues 10-Speed
  • Wheels - Bontrager Paradigm TLR Aluminum Wheelset

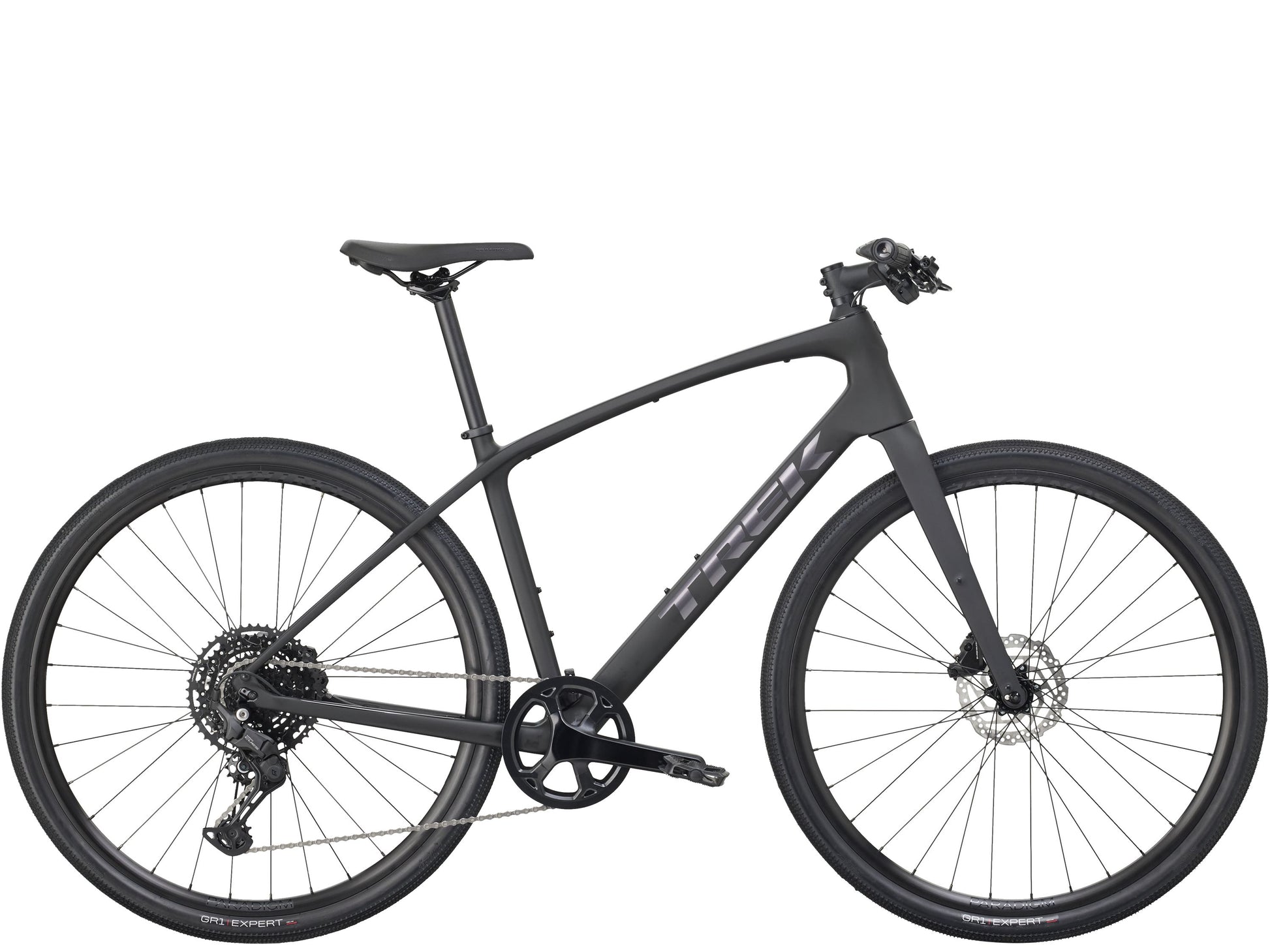

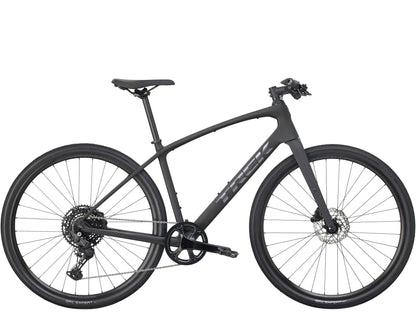

FX SPORT SL 4 SO S Matte Deep Smoke

Trek

Trek FX Sport SL 4 Carbon Shimano CUES Hybrid Bike

Regular price $1,999.99 USD
Sale price $1,999.99 USD Regular price $1,999.99 USD

Specifications

Frameset
Frame

400 series OCLV Carbon, internal routing, 3s chain keeper, DuoTrap S compatible, fender mounts, flat mount disc, 135x5mm ThruSkew

Fork

Carbon, hidden fender mounts, flat mount disc, 100x5mm thru-skew

Wheels
Front Hub

Formula, CL-51 alloy, 100x5mm

Front Skewer

135x5mm bolt-on

Rear Hub

Formula, CL-52 alloy, 135x5mm

Rear Skewer

169x5mm bolt-on

Rim

Bontrager Paradigm, Tubeless Ready, 32-hole, 21mm width, Presta valve

Spokes

14g stainless steel, black

Tire

Bontrager GR1 Expert, Hard-Case Lite, wire bead, 60 tpi, 700x40c

Max Tire Size

42mm without fenders, 40mm with fenders

Drivetrain and Brakes
Shifter

Shimano CUES U6000 w/optical gear display, 10-speed

Rear Derailleur

Shimano CUES U6000 GS

Crankset

Prowheel alloy, 42T narrow-wide ring

- Size XS, S: 170mm

- Size M, L, XL: 175mm

Cassette

Shimano CUES LG300, LINKGLIDE, 11-48, 10-speed

Pedals

Bontrager City

Max Chainring Size

1x: 44T

Brakes

Shimano hydraulic disc, MT201 lever, UR300 caliper

Brake Rotors

Shimano RT10, centerlock, 160mm

Max Rotor Size

160mm front & rear

Cockpit
Seat Post

Bontrager alloy, 27.2mm, 12mm offset, 330mm

Handlebars

Bontrager, alloy, 31.8mm, 15mm rise

- Size XS, S: 600mm width

- Size M, L, XL: 660mm width

Stem

Bontrager Elite, 31.8mm, Blendr compatible, 7 degree

- Size XS: 90mm

- Size S, M: 100mm

- Size L, XL: 110mm

Additional Information
Weight

M, 10.50 kg, 23.15 lbs

Weight limit

300 lbs (136 kg)

**Specifications subject to change without notice
