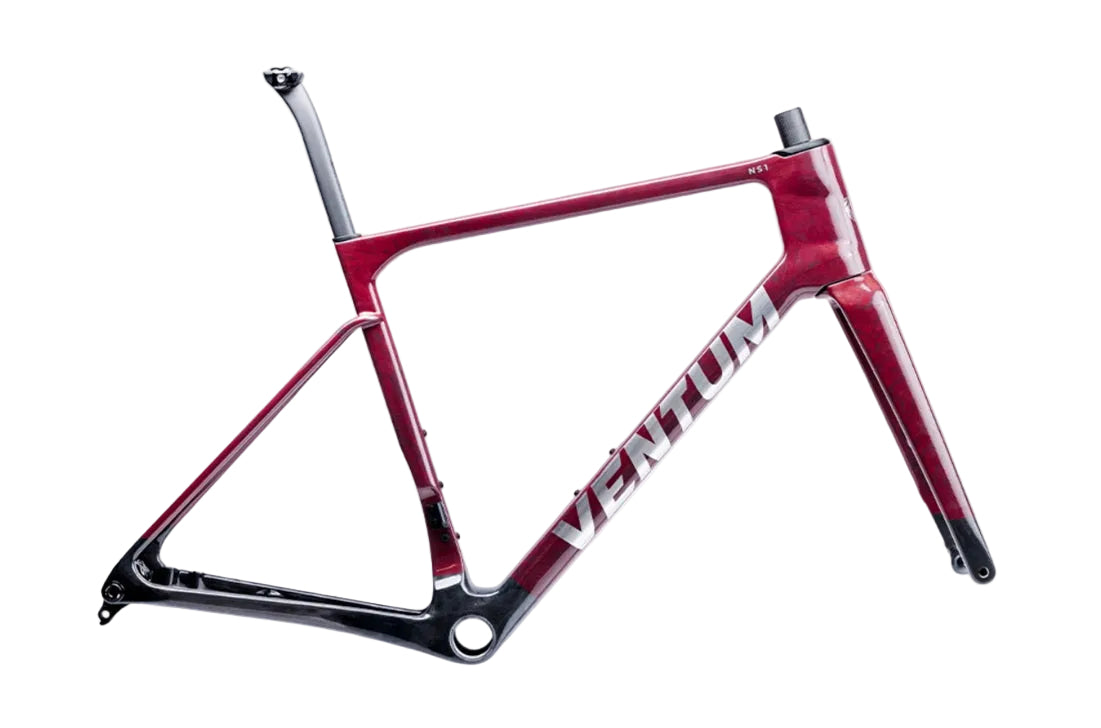

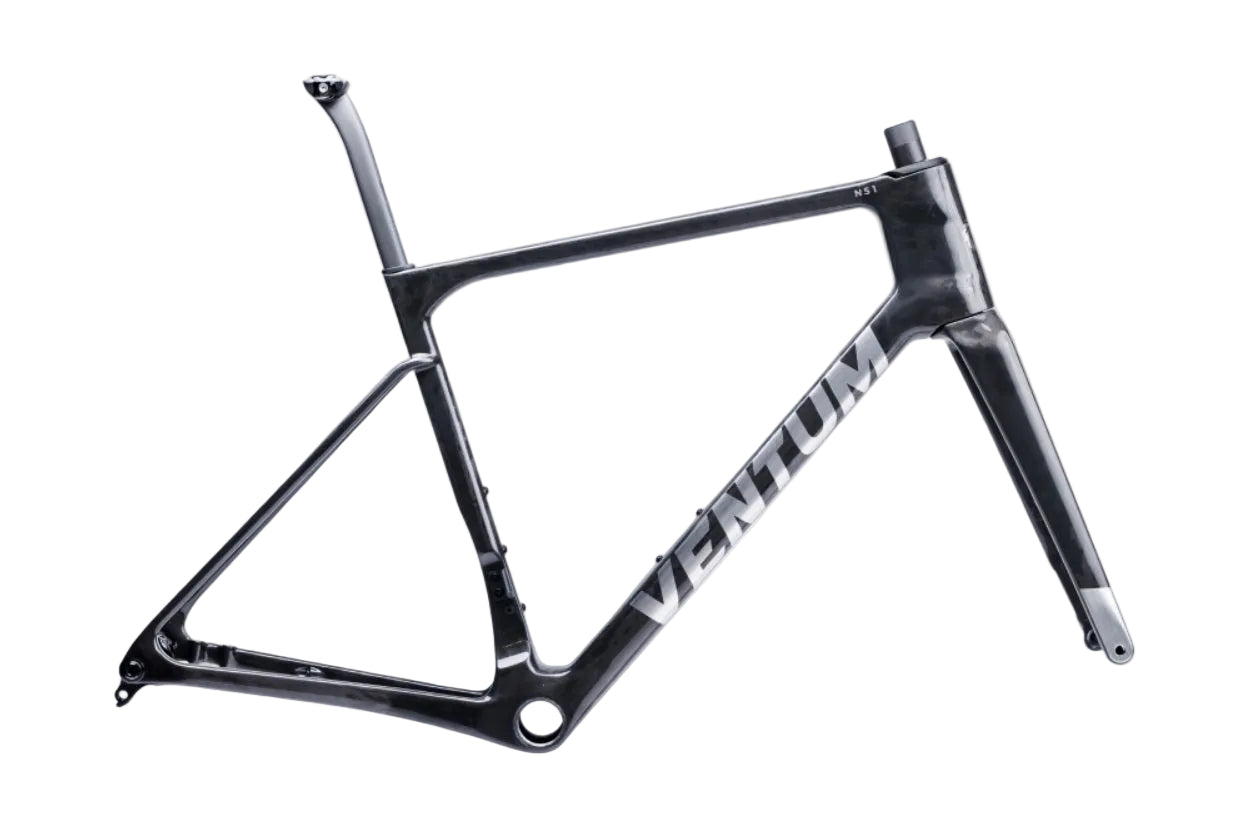

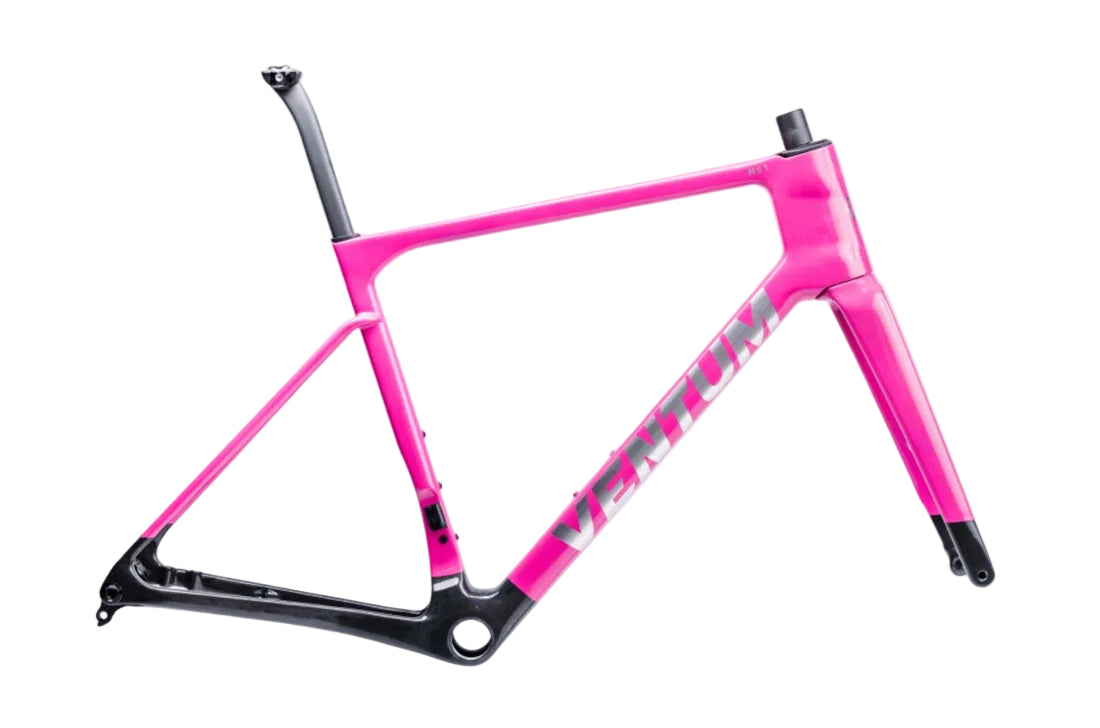

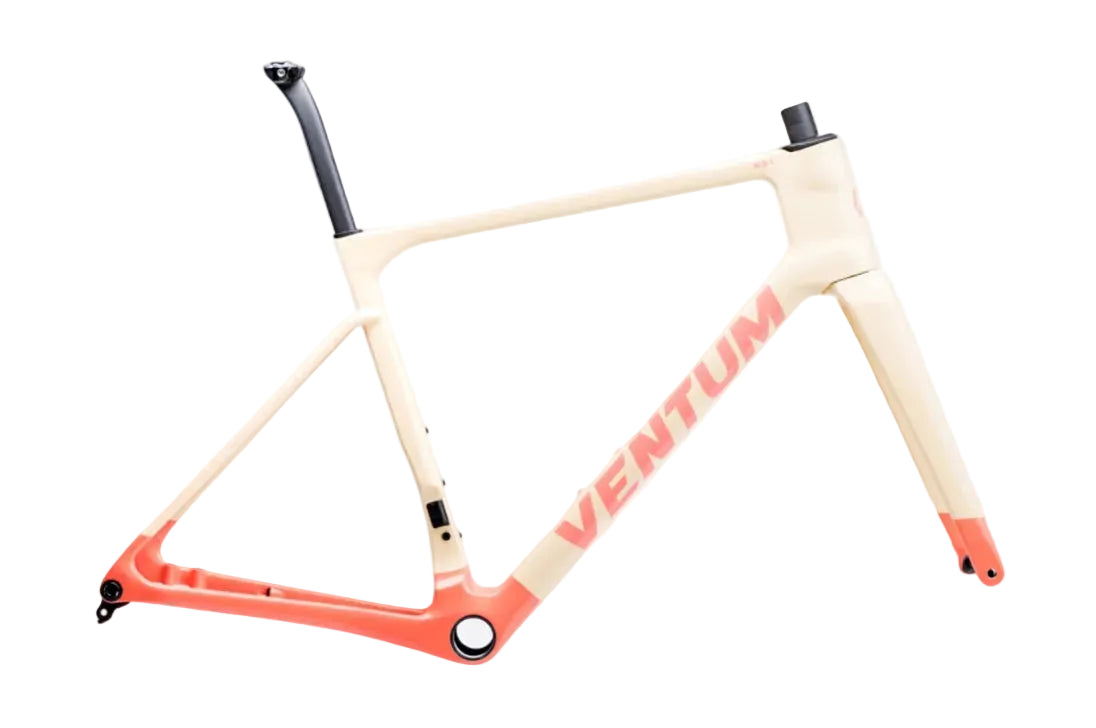

Ventum NS1 Carbon Road Bike Frameset

The Ventum NS1 Road Bike Frameset is a full carbon fiber, third-generation aero road race frameset built for race day and long, fast days on the bike. It combines an aggressive, race-inspired geometry with a completely reworked front end, aimed at riders who want to hold an aero position through corners and at speed without sacrificing handling.

This generation replaces the previous NS1 with a lighter, stiffer chassis and a new front-end shape developed from Ventum's Tempus time trial bike. Because it's sold as a frameset — frame, fork, and seatpost only — riders choose their own groupset, wheels, and cockpit, which makes it a fit for anyone assembling a build around specific component preferences rather than buying a complete stock bike. Wheels and a computer mount are not included.

Who It's For

• Racers and fast club riders who want an aggressive, aero-focused riding position

• Riders assembling a custom build around a specific groupset, wheelset, or cockpit

• Cyclists who want tire clearance up to 700x35c without stepping down to an endurance-focused frame

• Consider a different bike if you want a complete, ready-to-ride build (this is a frameset only) or you prefer a more upright, relaxed fit over race geometry

What to Look For

• This is a frameset-only purchase — budget for a groupset, wheels, and cockpit, and confirm compatibility with the T47 68mm bottom bracket and UDH derailleur hanger

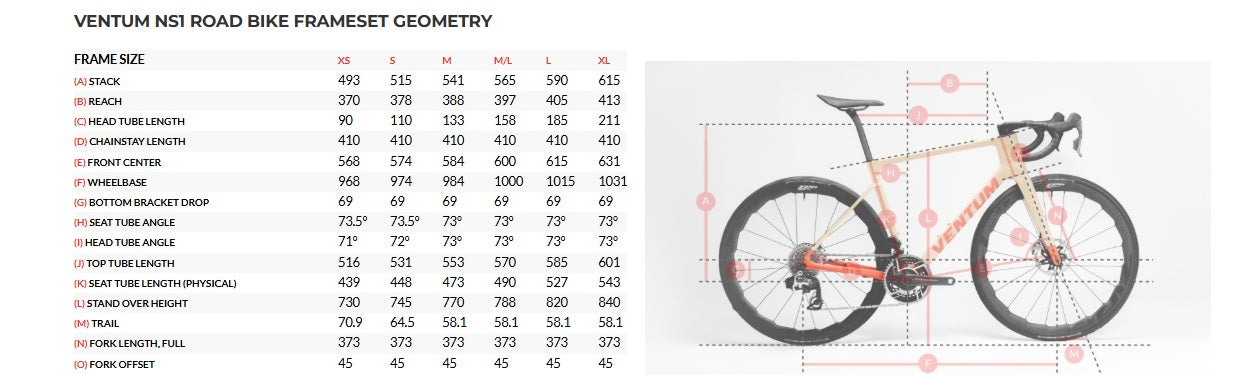

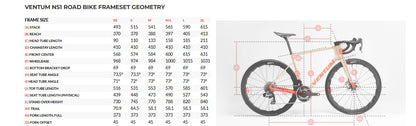

• Geometry is race-aggressive, but stack and reach have been increased, especially on larger sizes, giving riders who found earlier NS1 generations too stretched out more room to work with

• Plan tire and wheel selection around the frame's 700x35c maximum clearance if you want to run wider rubber

Key Features

The third-generation frame uses a higher modulus carbon layup that cuts more than 200g from the previous NS1, bringing an M/L frame down to 852g, while testing showed a 7.7% stiffer head tube and 11.9% stiffer bottom bracket. That combination matters most on climbs and out of corners, where a stiffer chassis puts more of a rider's effort into forward motion without adding weight.

The front end was redesigned with input from Ventum's Tempus TT platform: the leading edge extends forward of the steerer for a cleaner airfoil, and a pronounced hourglass head tube narrows the frame's waist to cut frontal area. The fork carries matching, deeper airfoils down through the front wheel — where a bike does much of its aerodynamic work.

A T47 threaded bottom bracket (68mm, external bearings) and UDH compatibility give this frameset broad support for modern mechanical and electronic groupsets, which matters for anyone specifying their own build. Braking is flat mount disc front and rear, with fully internal cable and hose routing through a tapered carbon steerer and carbon fork dropouts, keeping the front end clean without complicating service. The included Ventum carbon seatpost has a 10mm offset.

Rider Intent Summary

• Biggest strengths: A lighter, stiffer third-generation chassis (852g, M/L) paired with a Tempus-inspired aero front end

• Tradeoffs: Frameset only — no groupset, wheels, or computer mount included, and the geometry stays race-aggressive despite the added stack and reach

• What makes it different: Aerodynamic development carried over directly from Ventum's TT platform, including an hourglass head tube and extended leading edge not found on the previous-generation NS1

Victory's Take

We think the third-generation NS1 is one of the more complete aero-race framesets we've handled — real weight savings, a measurable stiffness gain, and enough added stack and reach to make the aggressive geometry work for more riders. At Victory Bicycle Studio, we'd point this toward a rider who already knows the build they want and is ready to spec it around a proven aero platform.
