About The Ventum NS1 V3 Carbon Rival AXS 12 Speed Road Bike

The Ventum NS1 V3 is a full carbon road race bike built around a third-generation aero frame that cuts more than 200g from the V2 through higher-modulus carbon and a new layup. It pairs SRAM Rival AXS 2x12 electronic shifting with ZIPP 303S carbon tubeless wheels on a frame designed for confident cornering and sustained speed. The V3's redesigned leading edge extends the fork crown forward of the steerer to create a cleaner airfoil where wind resistance is highest; a pronounced hourglass head tube further reduces frontal area. These are structural decisions tied directly to aerodynamic performance.

The geometry is race-inspired but deliberately accessible: Ventum added reach and stack — especially in larger sizes — so riders can settle into a clean aero position and hold it longer. T47 threaded bottom bracket, flat mount disc, and Universal Derailleur Hanger (UDH) round out a frame built for performance without sacrificing serviceability. Internal cable routing and an integrated computer mount keep the cockpit clean. Maximum tire clearance is 700x35c.

Who It's For

  • Riders moving from aluminum or entry-level carbon to a legitimate race platform
  • Cyclists who want wireless electronic shifting without Force or Red AXS pricing
  • Road riders who want tire versatility — the 35c max clearance handles mixed-surface conditions
  • Athletes targeting gran fondos, crits, or road races who want a factory-complete carbon build
  • Consider a different bike if you primarily ride gravel, prefer a relaxed endurance geometry, or want to start with a higher-tier groupset.

What to Look For

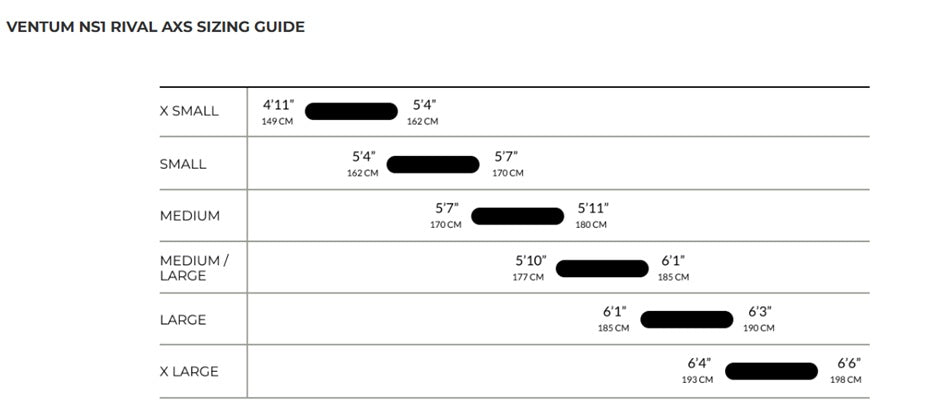

  • Fit and sizing: Ventum spec-matches crank length, stem length, and bar width per size — confirm the stock fit aligns with your measurements before ordering, as these differ meaningfully across the XS–XL range.
  • Groupset tier: Rival AXS delivers reliable wireless shifting but is heavier than Force or Red AXS. If weight savings or long climbs are priorities, evaluate whether stepping up is worth the cost difference.
  • Tire clearance: The 700x35c max expands versatility beyond most race bikes. Confirm your intended tire size clears both frame and wheel before committing.

Key Features

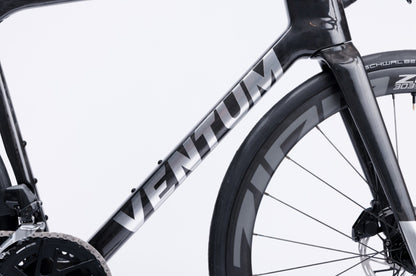

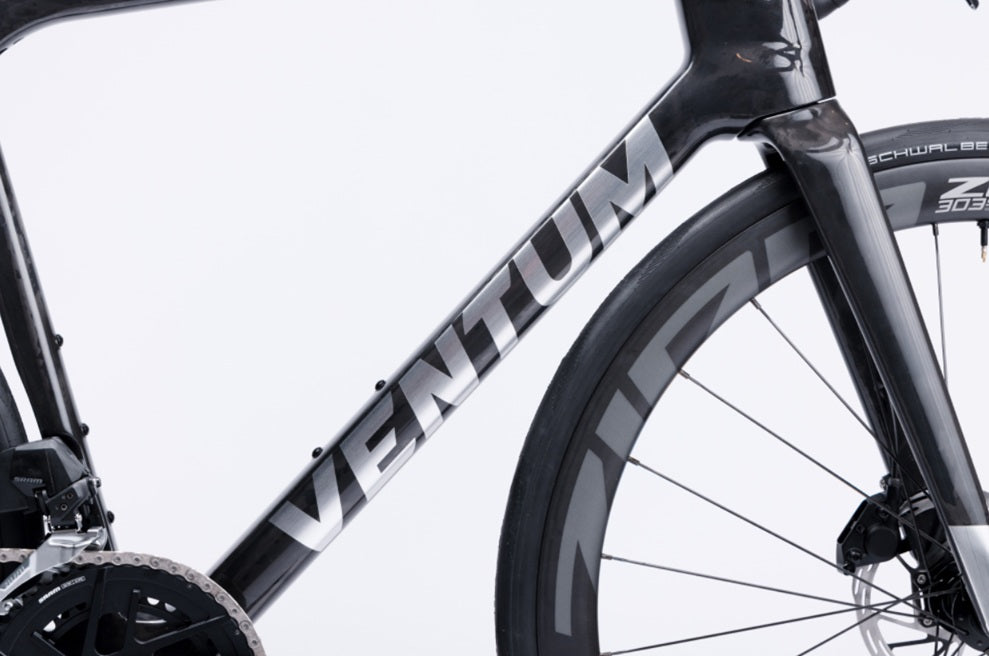

Frame and Fork: The NS1 V3 full carbon frame uses higher-modulus carbon and a redesigned layup to cut over 200g versus the previous generation. The extended leading edge and hourglass head tube target aerodynamic efficiency at the front of the bike — the section that encounters wind first. The tapered carbon fork with internal brake routing and carbon dropouts is matched to a T47 threaded bottom bracket shell, flat mount disc standard, and UDH rear axle for broad component compatibility.

Groupset: SRAM Rival AXS 2x12 provides fully wireless, battery-powered gear changes. The 48/35T crankset paired with a 10-36T cassette covers a wide range — flat fast road and moderate climbing — without cable drag or mechanical adjustment. Crank length is sized per frame: 165mm on XS/S, 170mm on M/M-L, and 172.5mm on L/XL.

Wheels and Tires: ZIPP 303S carbon tubeless wheels are a meaningful spec at this build tier — lightweight, stiff, and XDR-driver-ready for the AXS cassette. Schwalbe One 700x30c tires run tubeless from the factory, and the frame accepts up to 700x35c.

Braking: SRAM Rival AXS hydraulic disc brakes with Centerlock Paceline rotors — 160mm front, 140mm rear — deliver consistent modulation across conditions without the feel variation of cable-actuated systems.

Rider Intent Summary

  • Biggest strengths: Factory-complete carbon race build with wireless electronic shifting and carbon wheels; wide-range drivetrain suits varied terrain; ships fully built and professionally tuned
  • Tradeoffs: Rival AXS is heavier than Force or Red AXS; alloy ZIPP cockpit is functional but not aero-shaped
  • What makes it different: ZIPP 303S carbon wheels and AXS electronic shifting are uncommon at this price tier; Ventum's ride-ready packaging ships the bike fully tuned with minimal assembly required

Victory's Take

At Victory Bicycle Studio, we consider the NS1 V3 Rival AXS one of the more complete factory carbon builds at its price point — the ZIPP 303S wheels alone move it above most comparably priced options. For riders ready to step into a serious race platform without the overhead of speccing individual components, this is a strong place to start.

What you get

  • Frame - Ventum NS1 Carbon Road Frame
  • Fork - Ventum NS1 Fork
  • Groupset - SRAM Rival AXS 12 Speed (Electronic)
  • Wheels - Zipp 303s Carbon Wheelset
  • Tires - Schwalbe One - 700x30c

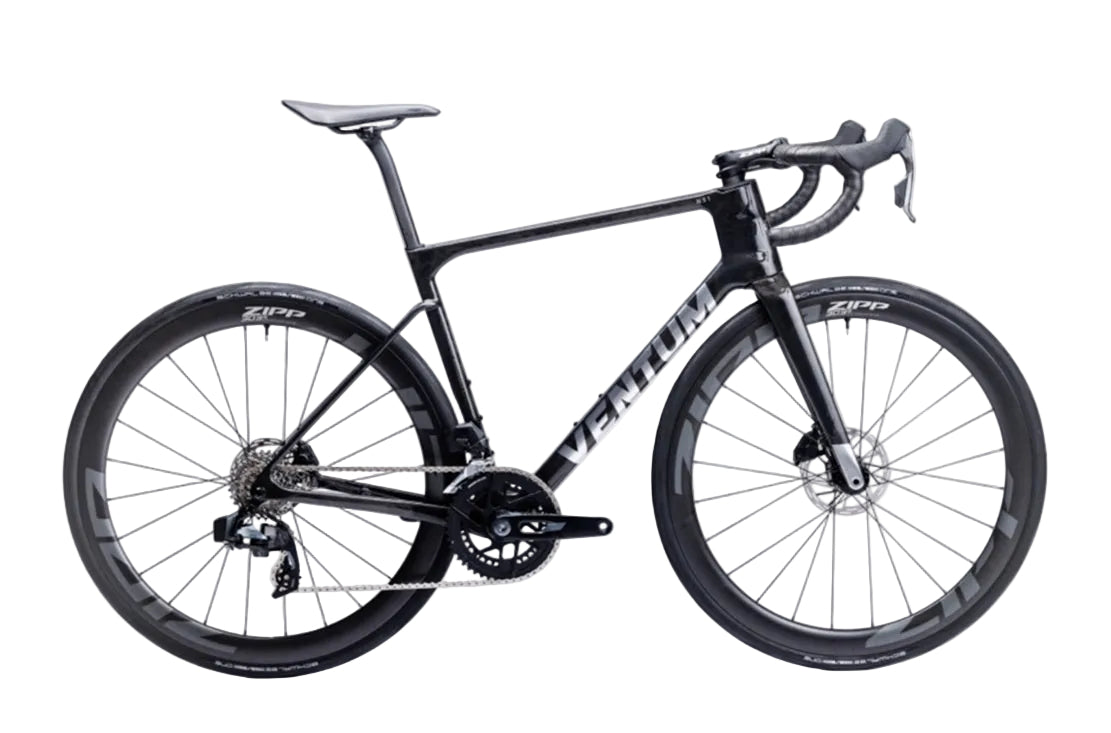

ventum ns1 v3 carbon rival axs 12 speed road bike right side view

ventum

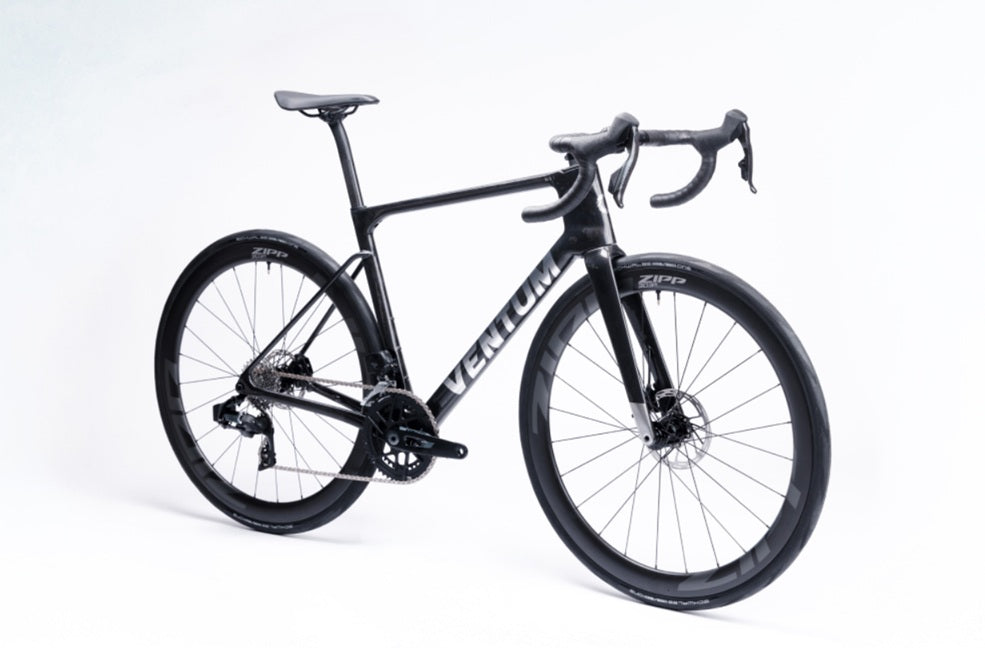

Ventum NS1 V3 Carbon Rival AXS 12 Speed Road Bike

Regular price $5,599.00 USD
Sale price $5,599.00 USD Regular price $5,599.00 USD

features

  • A FEATHERWEIGHT FRAME

    The third-generation NS1 frame is more than 200g lighter than its predecessor, weighing in at just 852g in a M/L.

    Reduction comes from new carbon layup, use of higher-mod carbon fiber, & by shaving mass from front end & seat stays.

    Less weight doesn’t come at expense of ride quality. In testing, new chassis is 7.7% stiffer in head tube & 11.9% stiffer in bottom bracket. It’s livelier on climbs, more responsive through corners, and stiffer where it matters.

  • MORE AERO

    All new front end, inspired by the Tempus TT bike, cuts through the wind.

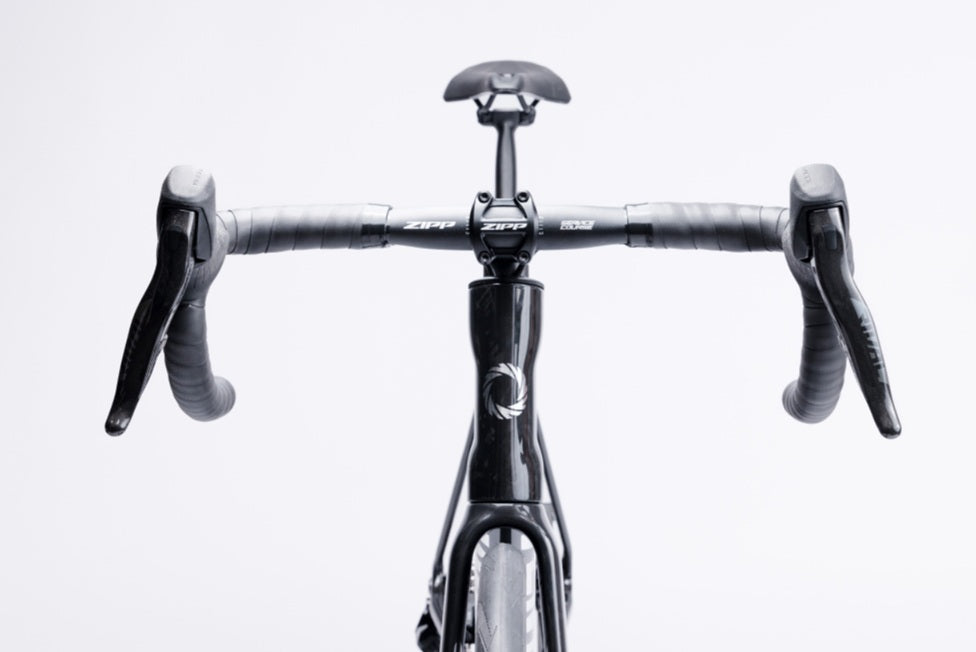

    Leading edge of NS1 has been extended forward of the steerer, creating space for a cleaner, more efficient airfoil. We’ve also narrowed waist of the frame by using an hourglass head tube, reducing the frontal area.

    Fork has been redesigned to match. Deeper airfoils on the fork legs extend down from the new head tube, improving airflow management while also increasing stiffness.

  • IMPROVED FIT, SAME SNAPPY HANDLING

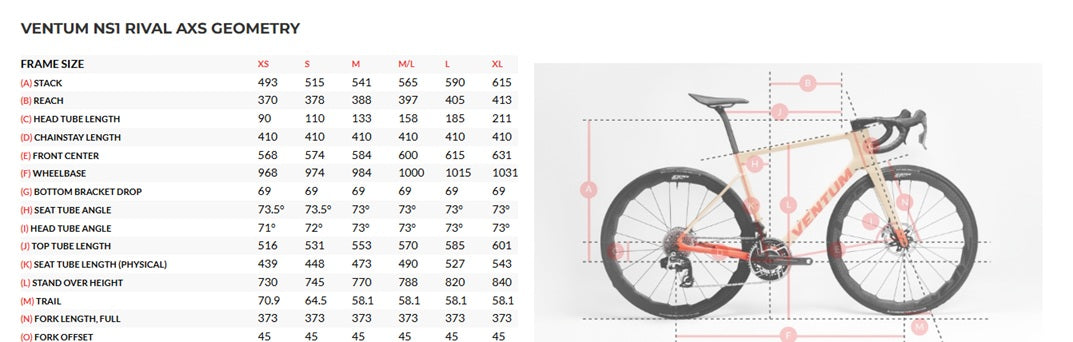

    Speed is easier to find when position is right. NS1’s geometry has been updated to help riders hold aerodynamic position more comfortably for longer.

    Stack & reach figures have been increased slightly over its predecessor — particularly on larger sizes. But aside from that change, we’ve protected the NS1’s racy handling.

    Nimble in corners. Stable at speed. Lively everywhere.

Specifications

Frameset
Frame

Ventum NS1 road frame

- Full carbon fiber construction

- Internal cable routing

- T47 threaded BB

- Flat mount disc brake

- UDH

Fork

Ventum NS1 fork

- Tapered carbon steerer

- Internal brake routing

- Flat mount disc brake

- Carbon dropouts

Wheels
Front Wheel

ZIPP 303s

- Tubeless, disc brake

- Carbon

Rear Wheel

ZIPP 303s

- Tubeless, disc brake

- Carbon

- XDR Driver

Tires

Schwalbe One

- Performance RaceGuard

- 700x30c

Max Tire Size

700x35c

Drivetrain and Brakes

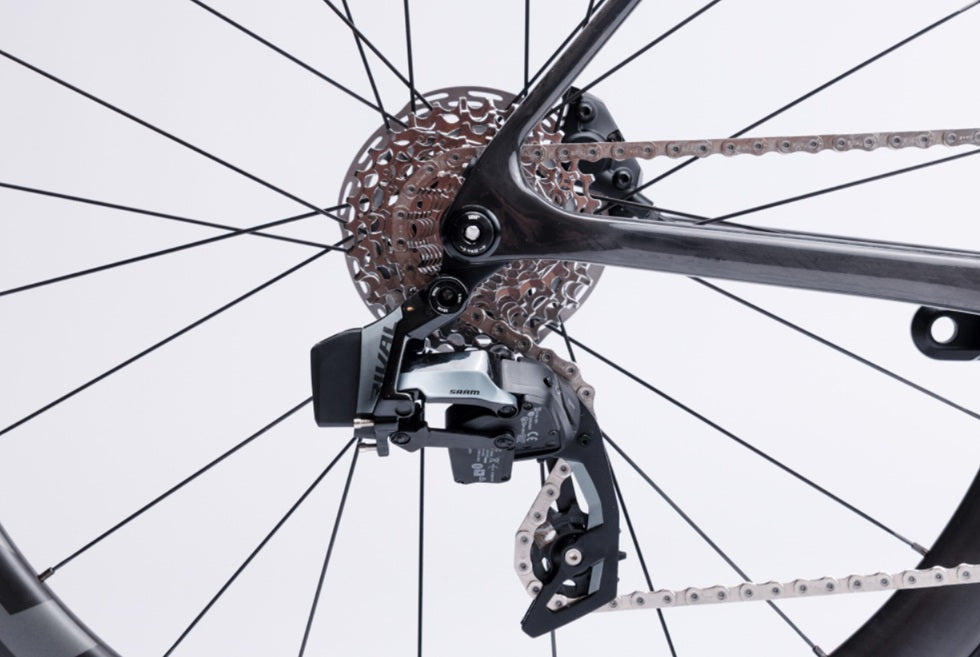

Rear Derailleur

SRAM Rival AXS

- 2x12 speed

- Electronic shifting

Front Derailleur

SRAM Rival AXS

- 2x12 speed

- Electronic shifting

Shifters

SRAM Rival AXS

- 2x12 speed

- Electronic shifting

Crank

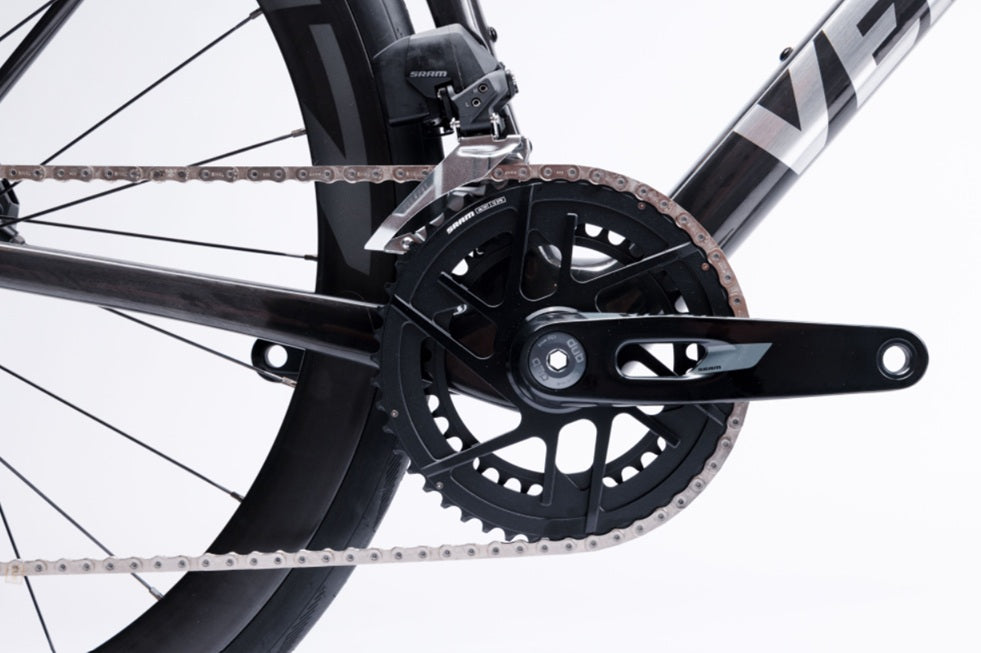

SRAM Rival AXS Crankset, 48/35T chainrings

- Size - XS - 165mm crank length

- Size - S - 165mm crank length

- Size - M - 170mm crank length

- Size - M/L - 170mm crank length

- Size - L - 172.5mm crank length

- Size - XL - 172.5mm crank length

Bottom Bracket

SRAM DUB T47

Cassette

SRAM Rival

- XG 1250

- 10-30T

Chain

SRAM Rival E1 12-speed chain

Brakes

SRAM Rival AXS hydraulic disc brakes

Brake Rotors

SRAM Centerlock Paceline rotors, 160mm Front /140mm Rear

Cockpit

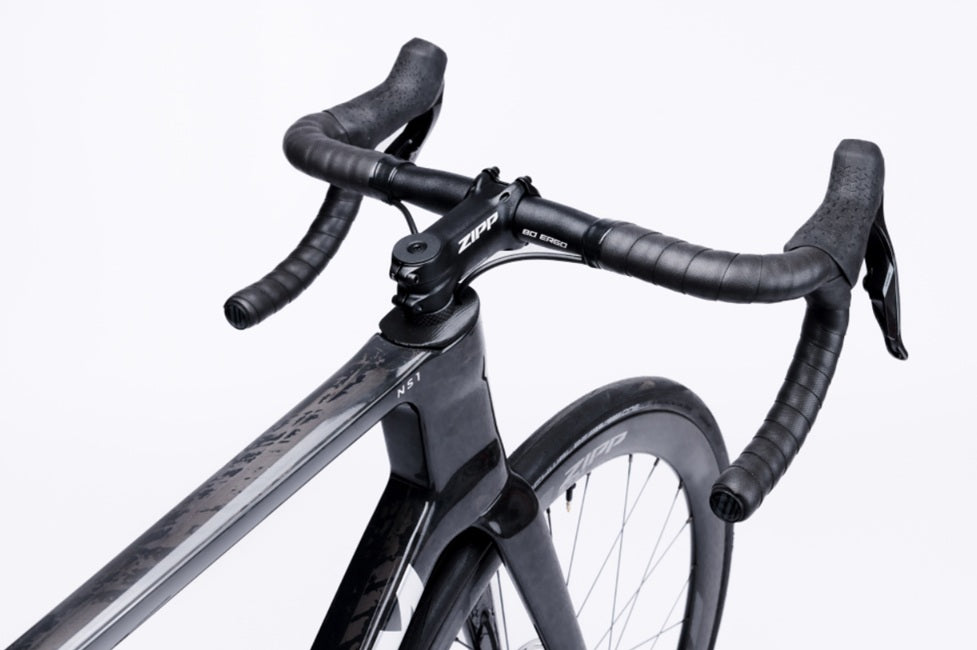

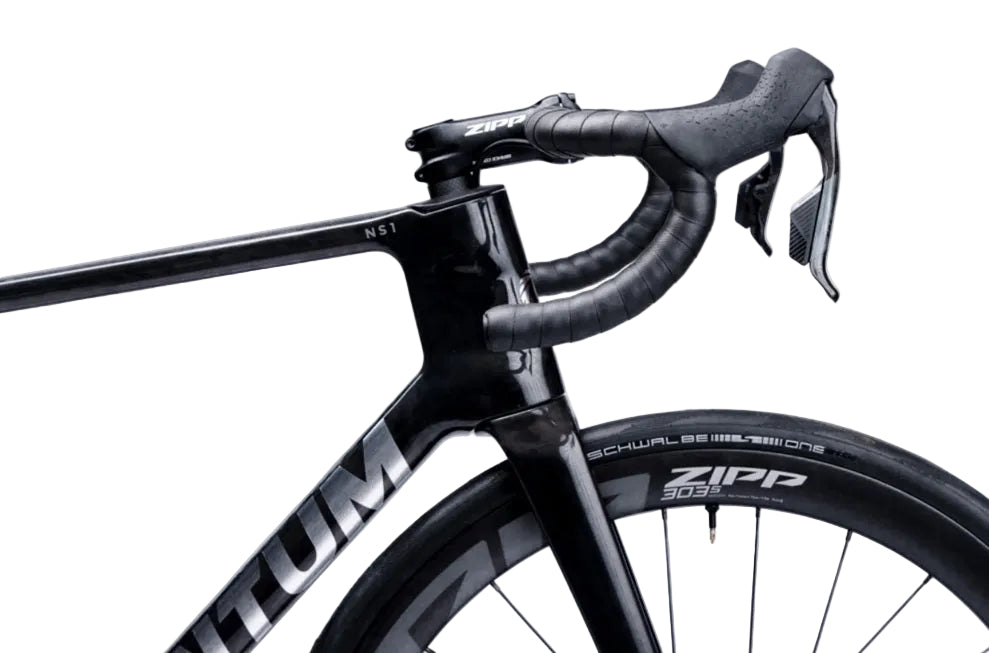

Handlebars

ZIPP Service Course 70

- Size - XS - 40cm width

- Size - S - 40cm width

- Size - M - 42cm width

- Size - M/L - 42cm width

- Size - L - 42cm width

- Size - XL - 44cm width

Stem

ZIPP Service Course:

- Size XS - 90mm length

- Size S - 90mm length

- Size M - 90mm length

- Size M/L - 90mm length

- Size L - 90mm length

- Size XL - 100mm length

Saddle

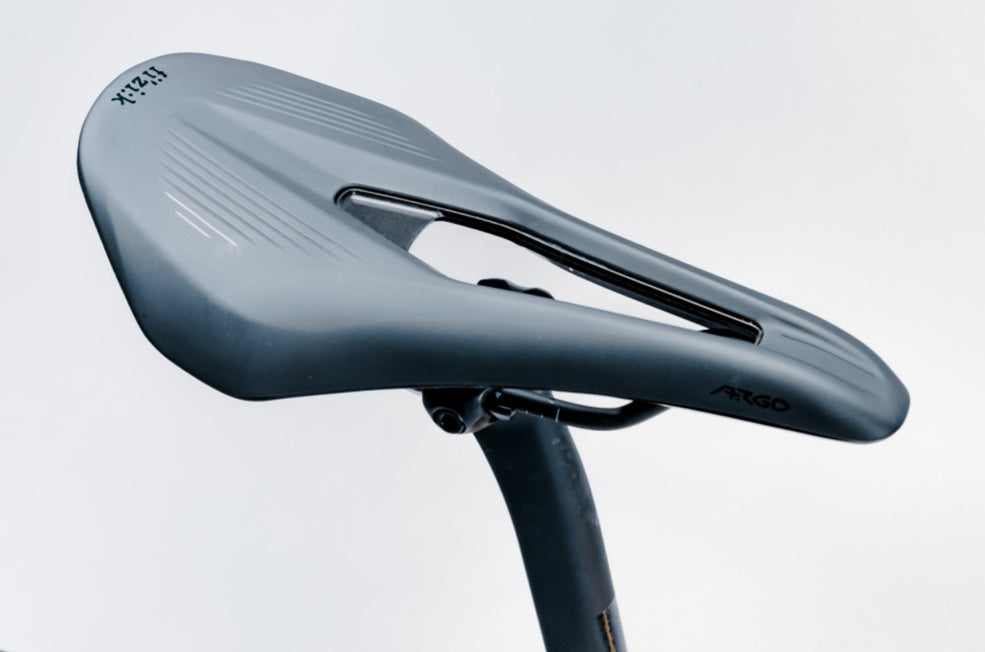

Fizik Vento Argo R5, 140mm

Seat Post

Ventum carbon post, 10mm offset

Handlebar Tape

FSA Powertouch, black

**Specifications subject to change without notice
